YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Specifications
Brand Name :
YZY
Model Number :
YBR028EGE-Q1（E32R28T）/YBN028EGE-Q1（E32N28T）
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
500 pcs
Price :
$8.5-12.8/Piece
Payment Terms :
T/T
Supply Ability :
Up to 5,000 pcs/day
Delivery Time :
30 Working days
Size :
2.8 inch
Resolution :
240×320 Pixels
Touch Type :
No Touch / Resistive Touch(Optional)
Applications :
IoT Devices, HMI, Education, Prototyping
Description
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Product Overview

The E32R28T and E32N28T are two 2.8-inch display modules featuring ESP32-WROOM-32E main control. The E32R28T includes a resistive touch screen while the E32N28T does not. Both products utilize the ILI9341 screen driver IC with 240x320 resolution and can connect to various peripherals including SPI interface devices, audio speakers, lithium batteries, MicroSD cards, and serial ports. The E32R28T's touch functionality enables extensive DIY capabilities while supporting IoT and human-computer interaction development.

Key Features
  • ESP32-WROOM-32E module with extensive development resources
  • 2.8-inch color screen with 240x320 resolution supporting up to 262K colors (RGB666)
  • Rich interface options for connecting various peripherals (SPI, UART, etc.)
  • External speaker support for audio playback
  • RGB three-color indicator for status display
  • Resistive touch screen for intuitive human-machine interaction
  • Standard TYPE-C interface for programming and power supply
  • Micro TF card slot for storage expansion
  • External lithium battery support for portable applications
  • Battery charging management circuit for safe operation
  • Comprehensive example programs and learning resources
  • Low-level driver technical support with online WIKI updates
  • Military-grade testing standards for long-term stable operation
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

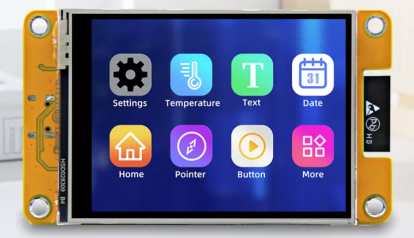

ESP32 2.8 Inch TFT LCD Display Module
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Product Front View
ESP32 Main Control Parameters
Item Parameters Unit
Module ESP32-WROOM-32E -
CPU ESP32-D0WD-V3, Xtensa dual core 32-bit LX6 microprocessor -
Frequency 240MHz (Max) -
Memory 48KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash -
WIFI 2.4GHz, 802.11b/g/n modes -
Bluetooth Bluetooth V4.2 BR/EDR and Bluetooth LE standards -
Operating Voltage 3.0~3.6 V
Operating Temperature -40~85 ℃
TFT Display Parameters
Item Parameters Unit
Panel Size 2.8 Inch
Panel Type TN 12 0'CLOCK TFT -
Resolution 240*320 Pixels
Active Area 43.20(W)x57.60(H) mm
Number of Colors Max: 262K (RGB666) Commonly used: 56K (RGB565) -
Driver IC ST7789 -
Display Interface 4-Line SPI (Connect to ESP32) -
View Angle 12'CLOCK -
Brightness (TYP) 260 cd/m²
Operation Temperature -10~50 ℃
Storage Temperature -20~60 ℃
Product Dimensions
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

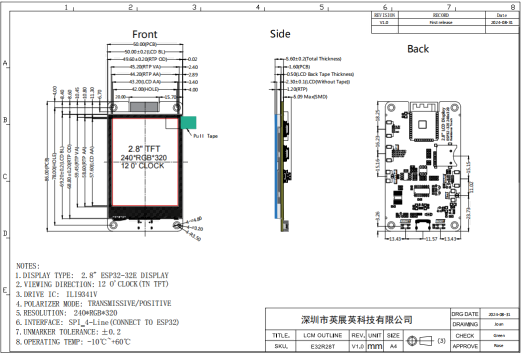

Dimension Diagram 1
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Dimension Diagram 2
