YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
Specifications
Brand Name :
YZY
Model Number :
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500
Price :
$4.8-5.4/pieces(MSP2807);$4.2-4.8/pieces(MSP2806)
Payment Terms :
T/T
Supply Ability :
50K/Month
Delivery Time :
30-45days
Packaging Details :
16*15*6(cm)/43g
Type :
SPI Display
Display Size :
2.8 inch
Supplier Type :
Factory
Description

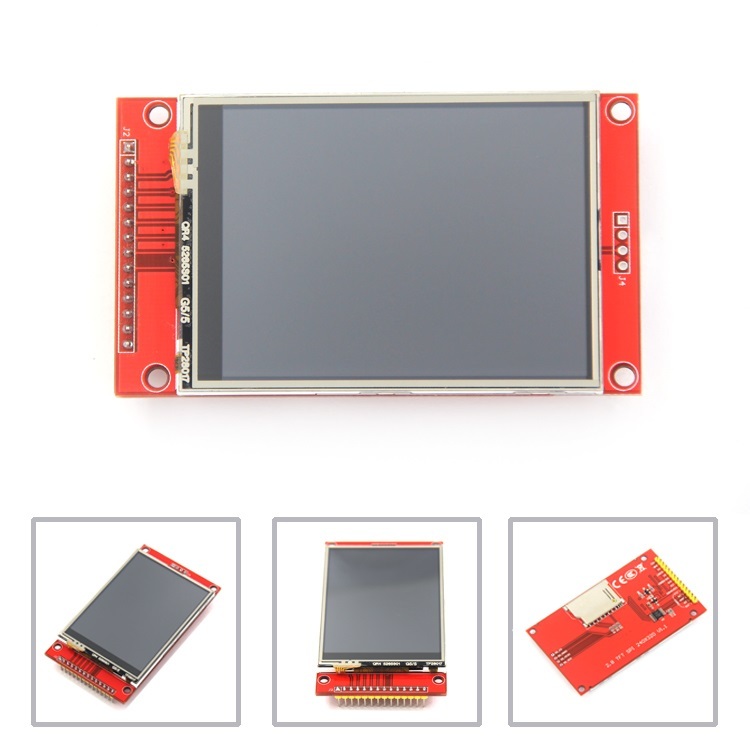

YBR028EGS-Q1 2.8-inch SPI Display LCD Module
High-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
Product Features
  • 2.8-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • SD card slot for easy experiment expansion
  • Comprehensive sample programs provided
  • Military-grade process standards for long-term stable operation
  • Complete underlying driver technical support
Technical Specifications
Size2.8 inch
SKUMSP2806 (No Touch); MSP2807 (With Touch)
Resolution240×320 dots
Module Interface4-wire SPI interface
Display ColorRGB 65K color
Active Area43.2×57.6 mm
Dimensions50.0×86.0 mm
VCC Power Voltage3.3V / 5V
Luminance230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver ICILI9341
Power Consumption0.31W
Logic IO Port Voltage3.3V (TTL)
WeightNo touch: 34g / With touch: 43g

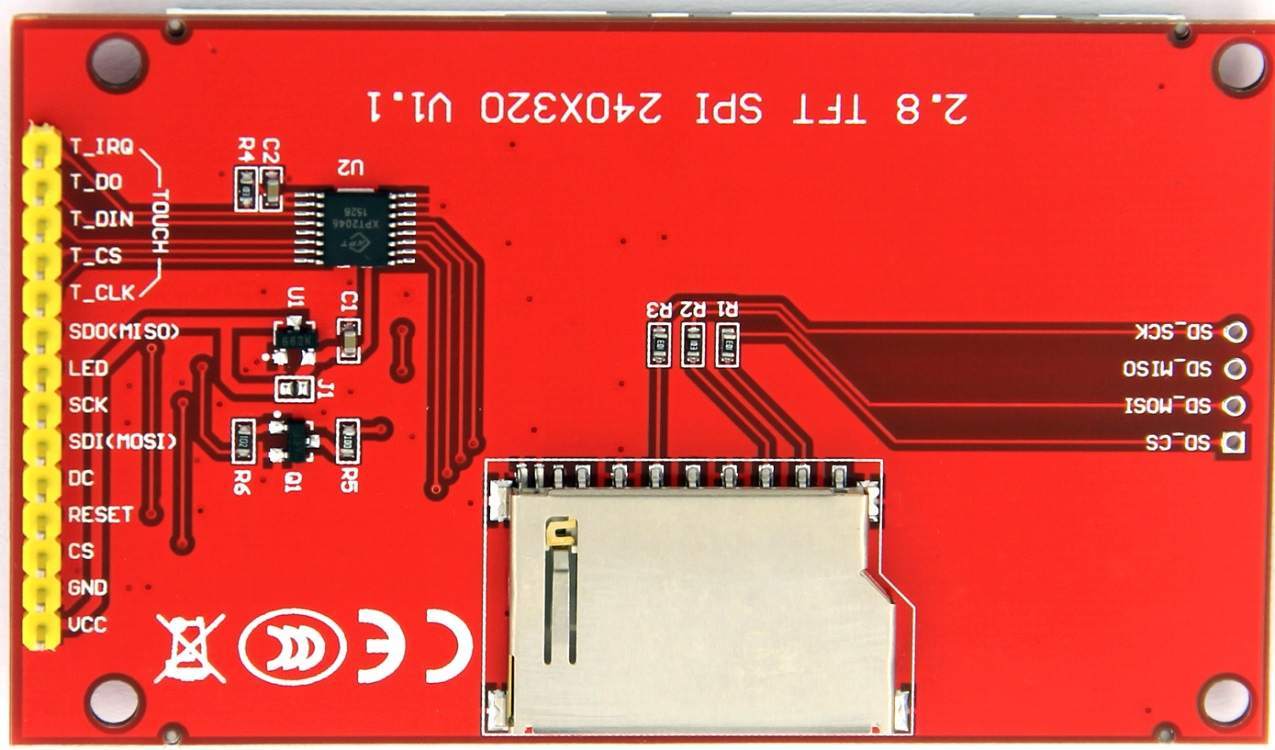

Interface Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications

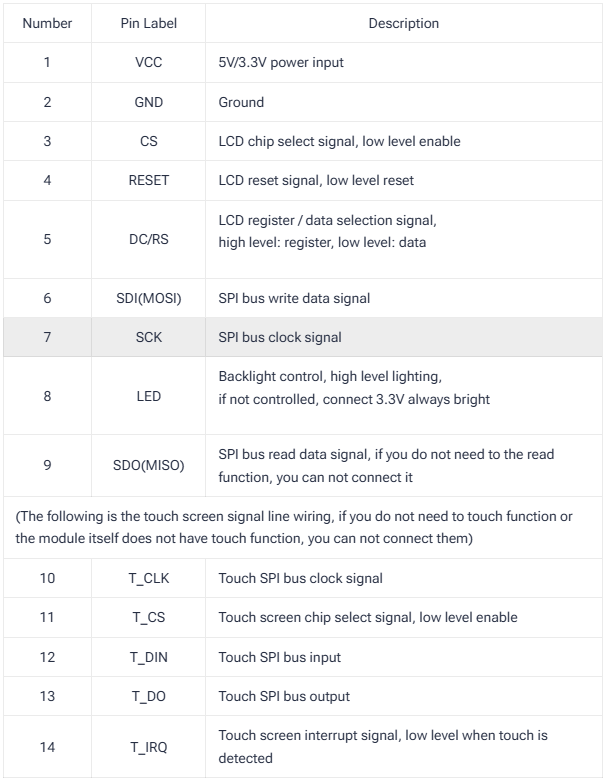

YBR028EGS-Q1 Interface Pinout
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications

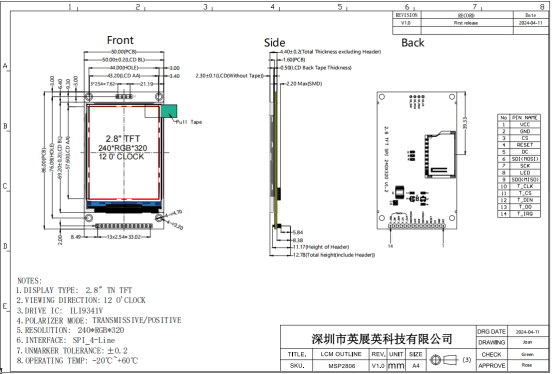

Product Dimensions
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
