Specifications
Brand Name :
YZY
Model Number :
YQX6-7A
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$23.5-26.5/pieces
Payment Terms :
T/T
Supply Ability :
10K/Month
Delivery Time :
30-45days
Packaging Details :
154*143*38(mm)/500g
Type :
7 Inch 1024x600 Capacitive Touch Screen
Display Size :
7 inch
Supplier Type :
Factory
Video Input :
HDMI
Description
YB070WSVL-P01 7 Inch 1024x600 Capacitive Touch Screen Raspberry Pi Compatibility(450/800cd/m² Optional )
Product Overview

The YB070WSVL-P01 is a 7-inch IPS HDMI LCD display with driver board featuring 1024*600 resolution and multi-point capacitive touch capability. This versatile monitor supports HDMI input, headphone signal input, and speaker output. Operating on a DC 5V power supply, it maintains standby power consumption below 0.2W for energy efficiency.

Key Features
  • 7-inch standard display with 1024*600 hardware resolution (supports up to 1920*1080 via software configuration)
  • 5-point capacitive touch screen for responsive interaction
  • Independent backlight control for optimal power saving
  • Compatible with Raspberry Pi, BeagleBone Black, Banana Pi, and other mini PCs
  • Functions as a general-purpose HDMI monitor for computers
  • Supports multiple operating systems including Raspbian, Ubuntu, Kali-Linux, Kodi, and Windows 10 IoT
Technical Specifications
Size 7.0 inch
Resolution 1024*600 dots
Touch 5 point capacitive touch
Dimensions 165 * 123 mm
Weight 500 g (including packaging)
Certifications: CE and RoHS certified for quality and safety standards
7 Inch 1024x600 HDMI LCD Display with 5-Point Capacitive Touch and Raspberry Pi Compatibility（450/800cd/m² Optional ）

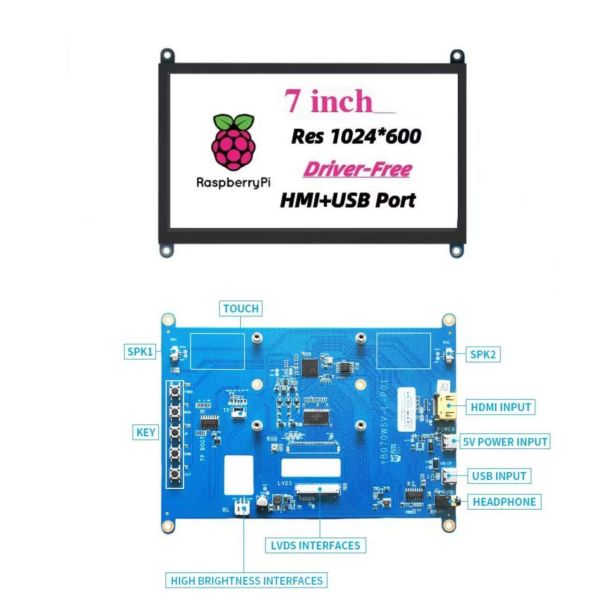

❶ HDMI Input: connect to the source device using an HDMI cable. This interface isoften used
to connect to a computer,The maximum supported resolution is 1080P.
❷ USB Input: Connect to the source device using a usb -Type c cable.often used to connect
to a computer,This interface is used for touch and power supply
❸ 5V Power Input:: Use usb-type c cable and power connection. This interface is only
used for power supply.
❹ Touch : Connect to the LCD touch screen
❺ headphone: connect audio output devices, such as headphones.
❻ Keys: Power Key/Menu Key/Up Key/Down Key/Exit Key
❼ Spk1//Spk2: Connect the speaker.
❽ High Brightness Interfaces:This interface is used for the highlighting backlight onnection.
