10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
Specifications
Brand Name :
YZY
Model Number :
YB101WSVL-P01
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$44-48/pieces
Payment Terms :
T/T
Supply Ability :
50K/Month
Delivery Time :
30-45days
Packaging Details :
300*240*60mm/900g
Type :
HDMI LCD Display 1024×600
Display Size :
10.1 inch
Supplier Type :
Factory
Video Input :
HDMI
Description
YB101WSVL-P01 10.1 Inch IPS HDMI LCD Display with 1024*600 Resolution and Raspberry Pi Compatibility
Product Overview
The YB101WSVL-P01 is a 10.1-inch LCD monitor with driver board that supports HDMI input and multi-point capacitive touch. It also supports headphone signal input and speaker output. The board operates on a DC 5V power supply with a standby power consumption of less than 0.2W.
Key Features
  • 10.1-inch IPS display with wide viewing angles and excellent color reproduction
  • High-resolution 1024*600 display with crisp image quality
  • Toughened glass touch panel with 6H hardness for durability and scratch resistance
  • 5-point capacitive touch screen for responsive multi-touch operation
  • HDMI input interface for high-definition display connectivity
  • Built-in stereo dual speakers for audio playback
  • 3.5mm headphone output port for private audio listening
  • Dual-function dial switch for backlight brightness and volume adjustment
  • Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black development boards
  • Supports multiple operating systems including Raspbian, Ubuntu, Kali, and Windows 10 IoT
  • Works as a computer monitor with Windows 7/8/10 systems
  • Compatible with gaming consoles including PS4, XBOX360, and Nintendo Switch
  • CE and ROHS certified for quality assurance
Technical Specifications
Size 10.1 inch Screen Type IPS Screen
Backlight Adjustment Switching and adjusting of dial switch Resolution 1024*600 dots
Volume adjustment Switching and adjusting of dial switch Touch 5 point capacitive
Power USB-Type-C (5V/3A) Touch IC GT911
Speakers Power 8Ω 2W Video Input HDMI
Dimensions 235*160*(20±0.2)mm Audio Output Interface 3.5mm Audio Interface and Stereo speakers
Packaging size 300*240*60mm Weight 900 g (including packaging)

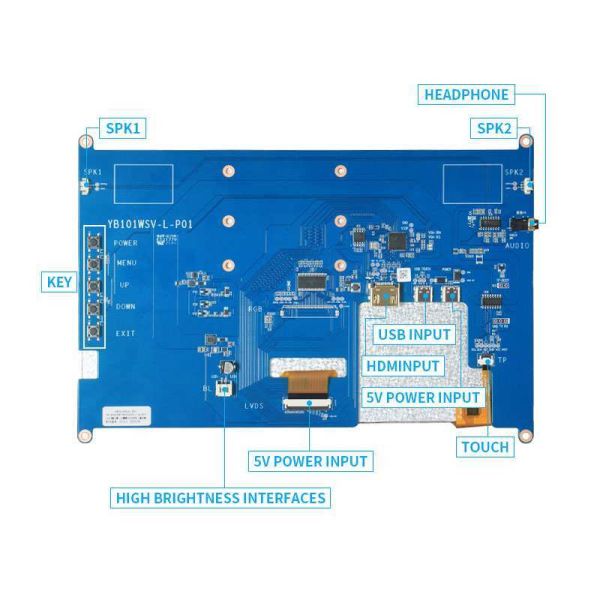

Interface and Key Description
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

HDMI Interface: Connect to source devices (computers, etc.) using HDMI cable. Supports maximum resolution of 1920*1080.

USB Input (USB-Type C): Connect to computers for touch functionality and power supply.

5V Power Input (USB-Type C): DC 5V Power Input

SPK1/2:Speaker Interfaces, each supports up to 2.6W (requires headphone-driven speaker output)

Headphone:Headphone Jack
Key:POWER/MENU/UP/DOWN/EXIT Button
