The YQX6-101 is a high-quality 10.1-inch IPS LCD display featuring 1024*600 resolution and 5-point capacitive touch screen, designed for versatile applications including Raspberry Pi projects, computer monitors, and gaming consoles.

• 10.1-inch IPS display with wide viewing angles and excellent color reproduction
• High-resolution 1024*600 display with crisp image quality
• Toughened glass touch panel with 6H hardness for durability and scratch resistance
• 5-point capacitive touch screen for responsive multi-touch operation
• HDMI input interface for high-definition display connectivity
• Built-in stereo dual speakers for audio playback
• 3.5mm headphone output port for private audio listening
• Dual-function dial switch for backlight brightness and volume adjustment
• Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black development boards
• Supports multiple operating systems including Raspbian, Ubuntu, Kali, and Windows 10 IoT
• Works as a computer monitor with Windows 7/8/10 systems
• Compatible with gaming consoles including PS4, XBOX360, and Nintendo Switch
• CE and ROHS certified for quality assurance

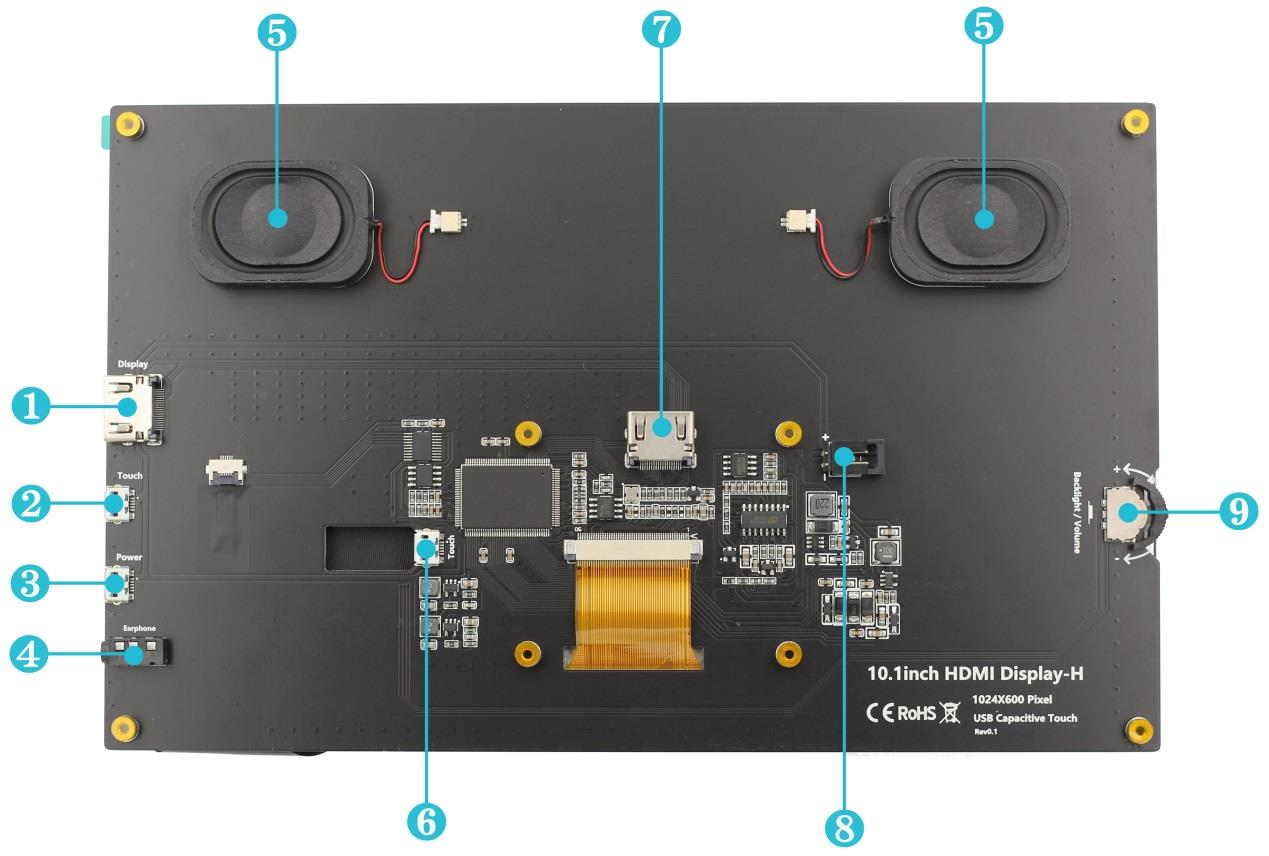

1. HDMI Interface: Connect to source devices (computers, etc.) using HDMI cable. Supports maximum resolution of 1920*1080.
2. Touch Interface (MicroUSB): Connect to computers for touch functionality and power supply.
3. Power Interface (MicroUSB): Dedicated power input connection.
4. 3.5mm Audio Interface: Connect headphones or other audio output devices.
5. Stereo Speakers: Built-in audio playback through slot and module connection.
6. Touch Interface (MicroUSB): Connect to Raspberry Pi for touch functionality and power supply.
7. HDMI Interface: Dedicated Raspberry Pi connection with maximum resolution of 1024*600.
8. Fan Interface: Connection for cooling fan.
9. Wheel Switch: Adjusts screen backlight brightness and volume. Default state adjusts volume (+/-). Press to switch to brightness adjustment mode.
