Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Specifications
Brand Name :
YZY
Model Number :
YQX28-101A
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$52-58/pieces
Payment Terms :
T/T
Supply Ability :
50K/Month
Delivery Time :
30-45days
Packaging Details :
295*195*70mm/892g
Type :
10.1 Inch Capacitive Touch Screen
Display Size :
10.1 inch
Supplier Type :
Factory
Video Input :
HDMI
Description
YQX28-101A 10.1 Inch 1280*800 IPS LCD Display Module with Capacitive Touch Portable Product
Product Overview

The YQX28-101A is a high-quality 10.1-inch IPS LCD display module featuring 1280*800 resolution and 5-point capacitive touch functionality. This versatile display is designed for portable applications and supports multiple input sources.

Key Features
  • 10.1-inch IPS panel with wide viewing angles
  • HDMI and VGA input with switchable video sources
  • Native 1280*800 resolution (supports up to 1920*1080 input)
  • 5-point capacitive touch with toughened glass (6H hardness)
  • Built-in stereo speakers and 3.5mm headphone output
  • On-screen controls for menu, brightness, volume, and input switching
  • Compatible with Raspberry Pi, Banana Pi, and other mini PCs
  • Works with Windows 7/8/10/11 (touch driver-free)
  • Universal HDMI monitor for gaming consoles (Xbox, PS4, Switch)
  • CE and RoHS certified for quality assurance
Technical Specifications
Size 10.1 inch Screen Type IPS Screen
SKU MPI1009 Resolution 1280*800 dots
Backlight Adjustment Key Switch Adjustment Touch 5 point capacitive
Power MicroUSB (5V) Video Input Mini HDMI & VGA
Dimensions 239.4*157.4*12.3mm Packaging size 295*195*70mm
Active display 216.57*135.36mm Weight 938 g (including packaging)

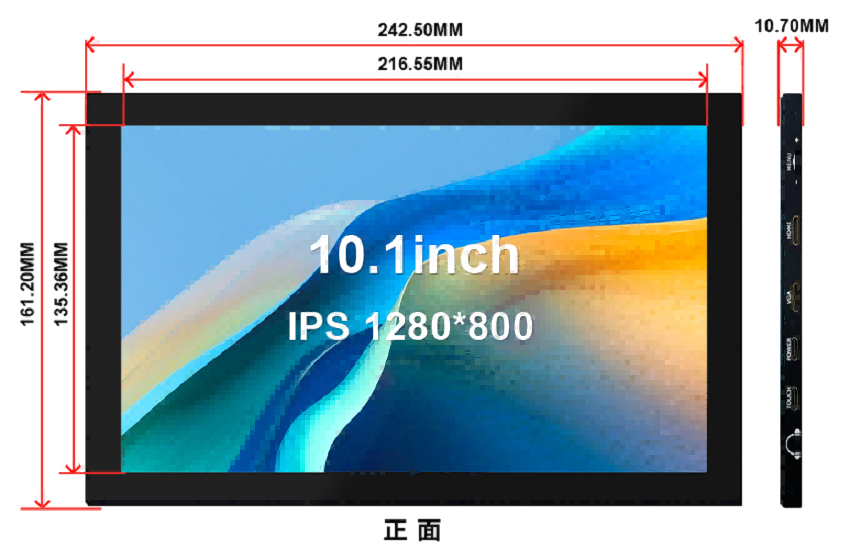

Product Dimensions
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Detailed dimensional drawing of the display module

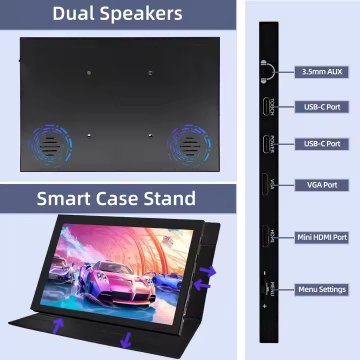

Interface Diagram
Portable 10.1 Inch Capacitive Touch Screen 1280*800 IPS LCD Display Module
Display module interface connections and ports layout
