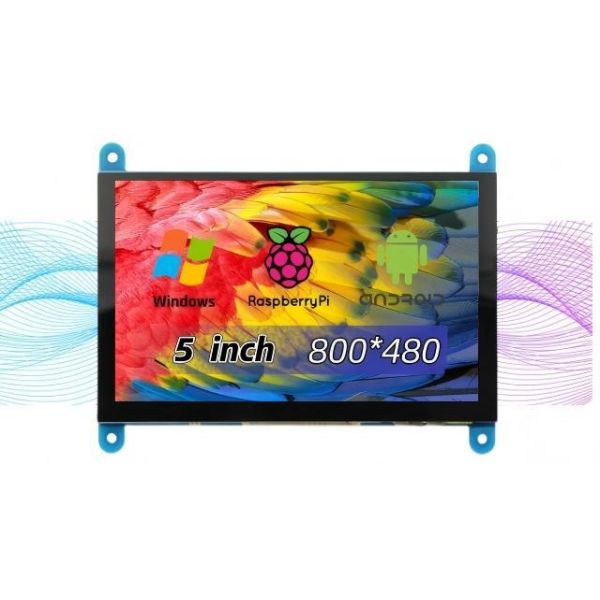

YB050WVR-P01 5 Inch 800*480 Capacitive Touch Screen Raspberry Pi Compatibility
Product Overview
The YB050WVR-P01 is a 5-inch IPS HDMI LCD display with driver board featuring 800*480 resolution and multi-point capacitive touch capability. This versatile monitor supports HDMI input, headphone signal input, and speaker output. Operating on a DC 5V power supply, it maintains standby power consumption below 0.2W for energy efficiency.
Key Features
- 5-inch standard display with 800*480 hardware resolution (supports up to 1920×1080 via software configuration)
- 5-point capacitive touch screen for responsive interaction
- Independent backlight control for optimal power saving
- Compatible with Raspberry Pi, BeagleBone Black, Banana Pi, and other mini PCs
- Functions as a general-purpose HDMI monitor for computers and embedded systems
- Supports multiple operating systems including Raspbian, Ubuntu, Kali-Linux, Kodi, and Windows 10 IoT
- CE and RoHS certified for quality assurance and environmental compliance
Technical Specifications
| Size | 5.0 inch |
| Resolution | 800*480 dots |
| Touch | 5 point capacitive touch |
| Dimensions | 120.7 × 97 mm |
| Weight | 250 g (including packaging) |
