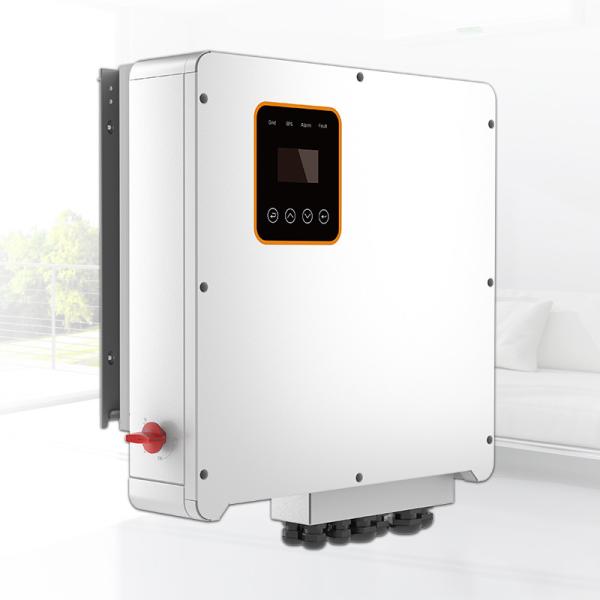

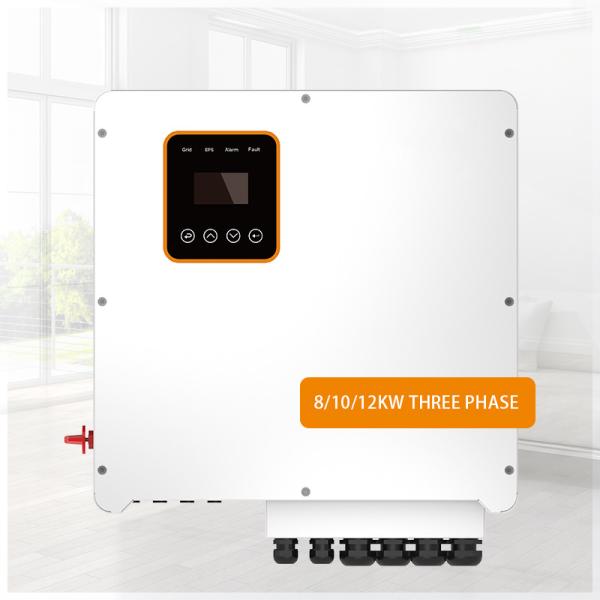

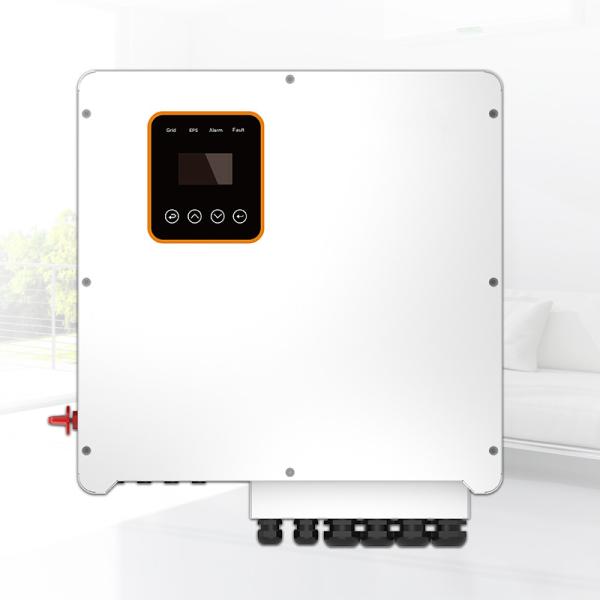

6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
Specifications
Place of Origin :
China
Brand Name :
TTNergy
Model Number :
MY-R8KH1NA
Packaging Details :
Carton box
Supply Ability :
1000 Piece/Pieces per Quarter
Price :
$1,800.00/pieces 1-4 pieces
Input Voltage :
180-850v
Output Voltage :
400v, 360-400v (three phase)
Output Frequency :
50HZ/60HZ
Output Type :
Three Phase
Size :
560*200*540mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.5%
Certificate :
UL/CE/TUV
Warranty :
5 years
Weight :
41kg
Display :
LCD+LED Display
Output waveform :
Pure Sine Wave Output
Protection :
IP65, , Overload, Short Circuit Protection
Communication interface :
Modbus, RS485, WIFI, 4G
AC gid connection type :
L+N+PE
machine in parallel :
Multiple units in parallel
Port :
Ning bo,Shanghai,Wenzhou,Guangzhou,Shenzhen
Description
Products Description
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
Mode
R8KH3
R10KH3
R12KH3
Input (PV)
Max. power(kW)
10.4
13
15.6
Max. DC voltage(V)
1000
MPPT voltage range(V)
180-850
Max.input current of single MPPT(A)
12.5
MPPT tracker/strings
2/1
AC output
Rated output power(kVA)
8.8
11
13.2
Max. output current(A)
12.7
15.9
19.1
Grid Voltage/Range(V)
400/360~440
Frequency (Hz)
50/60
Power Factor
0.8lagging-0.8leading
THDi
<3%
AC output topology
3W+N+PE
Battery
Battery voltage range(V)
125-600
Max. charging voltage(V)
600
Full BatteryVoltage(V)
210
270
250
Battery type
Lithium/Lead-acid
Max.Charge/Discharge Current(A)
40
40
50
Communication interface
CAN/RS485
EPS output
Rated power (kVA)
8.8
11
13.2
Rated output voltage(V)
400
Rated output current(A)
12.7
15.9
19.1
Rated frequency (Hz)
50/60
Automatic switching time (ms)
<20
THDu
<2%
Overload capacity
110%, 30S/120%, 10S/150%,0.025
General data
Battery Charge/Discharge Efficiency
96.6%
96.70%
96.80%
DC Max. Efficiency
97.90%
98.20%
98.20%
Europe Efficiency
97.20%
97.50%
97.50%
MPPT Efficiency
99.50%
99.50%
99.50%
Ingress protection
IP65
Noise emission (dB)
<35
Operation temperature
- 25℃~ 60℃
Cooling
Natural
Relative humidity
0~95%(non-condensing)
Altitude
2,000m(>2,000 Derating)
Dimensions W*D*H (mm)
530*200*600
Weight (kg)
29
Isolation transformer
No
Self-consumption(W)
<3
Display and communication
Display
LCD
Interface:RS485/WIFI/4GCAN/DRM
Yes/Opt/Opt/Yes/Yes
Certification
CE,TUV
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
Certifications
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
Company Profile
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
6kw 8kw 10kw 12kw Three Phase Hybrid Solar Inverter 50HZ/60HZ
