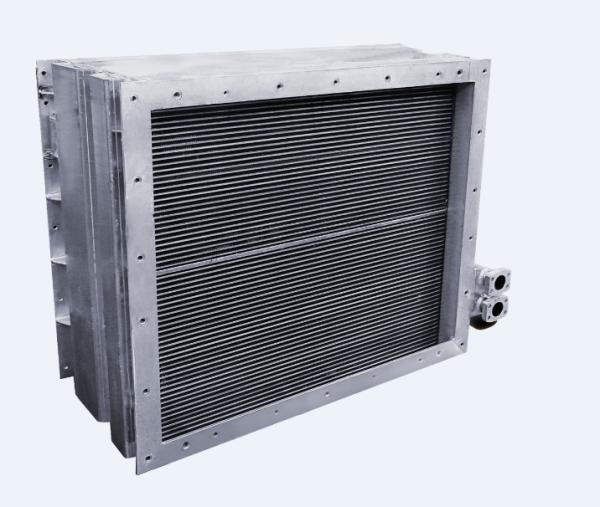

High Strength Aluminum Alloy Rail Transit Cooler With Serrated Fins 1.0 MPa For Railway
High Strength Aluminum Alloy Rail Transit Cooler With Serrated Fins 1.0 MPa For Railway
Specifications
Brand Name :
YUDA
Model Number :
B10769
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300PCS/Month
Delivery Time :
30days
Packaging Details :
Wooden Case
Coolant Inlet Diameter :
25 to 40 millimeters
Maximum Air Velocity Across Fins :
6.0 meters per second
Fin Structure :
Serrated high efficiency fins
Total Dry Weight :
45 to 120 kilograms
Heat Dissipation Capacity :
30 to 120 kW
Nominal Heat Transfer Coefficient :
450 to 720 W per square meter Kelvin
Flow Rate Range :
40 to 180 L per minute
Pressure Drop :
Less than 0.15 MPa
Installation Method :
Rail mounted or frame mounted
Allowable Thermal Shock :
25 degrees Celsius per minute
Description
Aluminum Plate Fin Coolers for Railway and Rail Transit Applications

Our aluminum plate fin cooler is a high-performance thermal management solution engineered specifically for the demanding environments of railway and rail transit systems. Designed to ensure the reliable operation of critical components, this cooler effectively dissipates heat from traction converters, propulsion systems, braking resistors, and hydraulic/pneumatic circuits. Its robust construction makes it the ideal rail transit cooler for locomotives, high-speed trains, trams, and metro cars.

Primary Applications

This product is essential for thermal control in main traction cooling, auxiliary power unit (APU) cooling, hydraulic oil cooling, and climate control compressor cooling. It serves as a vital rail transit cooler component, guaranteeing system stability and safety across diverse operating conditions.

Key Specifications
Parameter Specification
Compatible Coolants Water or water glycol solution
Working Pressure Range Up to 0.8 MPa
Design Pressure Up to 1.0 MPa (Standard)
Temperature Range -40°C to +150°C
Connections SAE, NPT, or BSPP fittings available
Customization Fully customizable dimensions, port locations, and circuit arrangements
Product Advantages

Superior Efficiency & Compact Design: The plate-fin structure offers an exceptionally high surface area to volume ratio, enabling outstanding heat transfer in a lightweight and space-saving package—a critical advantage in rolling stock design.
Exceptional Durability: Manufactured from corrosion-resistant aluminum and featuring a brazed construction, the cooler withstands vibration, shock, and harsh environmental conditions, ensuring a long service life with minimal maintenance.
Optimized for Rail Standards: Our design and manufacturing processes consider relevant industry standards for safety and performance, making this rail transit cooler a trusted choice for OEMs and operators.
Lightweight & Energy Efficient: The all-aluminum construction significantly reduces weight compared to traditional copper-brass designs, contributing to lower energy consumption and increased payload capacity.
Custom Engineering Support: We provide tailored solutions to meet exact application requirements, from specific thermal duties to mechanical integration, ensuring optimal performance as your dedicated rail transit cooler partner.

Target Market

We primarily serve the railway and public transportation sectors in Europe and North America. Our coolers are engineered to meet the stringent quality, safety, and environmental regulations of these regions, providing reliable thermal management for operators, integrators, and rolling stock manufacturers. Trust our expertise for your most demanding rail transit cooler needs.
