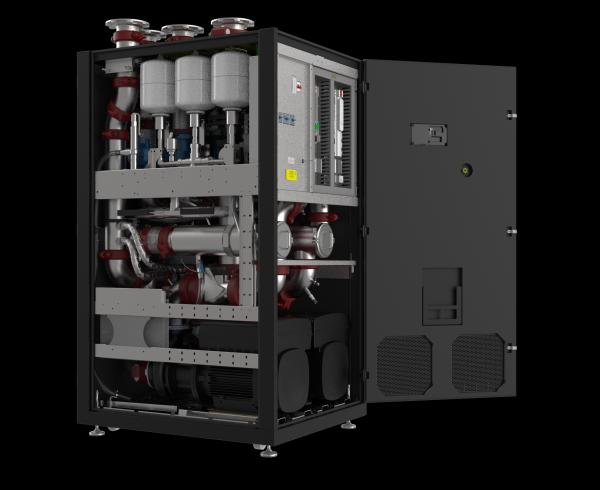

800kW Microchannel Heat Exchanger And Redundant Pump System For Data Centers
800kW Microchannel Heat Exchanger And Redundant Pump System For Data Centers
Specifications
Brand Name :
YUDA
Model Number :
CDU800
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Cooling Capacity :
80–120 kW
Heat Exchanger Type :
High-efficiency microchannel aluminum core
Air Flow Rate :
12,000–18,000 m³/h
Ambient Temperature Range :
-10℃ to +45℃
Liquid Flow Rate :
150–220 L/min
Corrosion Protection :
C4 anodized aluminum, stainless steel piping
Pump Flow Rate :
25–40 L/min
Power Supply :
380–415 V, 50/60 Hz, 3-phase
Relative Humidity :
10% – 95% non-condensing
Maximum Operating Pressure :
1.2 MPa
Packaging Details :
Wooden Case
Delivery Time :
30days
Description
800 kW Cooling Capacity RackChiller with High-efficiency Microchannel Heat Exchanger and Redundant Pump System for Data Centers
The nVent RackChiller CDU800: Advanced Cooling for High-Density Data Centers Worldwide is designed to provide efficient and reliable thermal management for high-density data centers globally. This cooling solution ensures optimal operation of power electronics and energy storage modules, maintaining precise temperature control under heavy load conditions.
Engineered with high-performance heat exchangers and intelligent airflow management, the system reduces energy consumption while enhancing reliability. Supporting modular deployment, it offers scalable cooling for large data centers, renewable energy hubs, and storage facilities. Trusted worldwide, it ensures maximum uptime, protects sensitive equipment, and meets strict environmental standards for modern data center operations.
Primary Application and Use
The RackChiller CDU800 is purpose-built for data center environments where traditional air cooling reaches its limits. It is essential for cooling high-density server racks, AI/GPU clusters, and networking equipment. By efficiently removing heat directly at the source with liquid cooling, it enables data centers to increase compute power within the same footprint, supporting technological advancement and scalability.
Key Specifications
Feature Specification
Maximum Cooling Capacity 800 kW (at 6K Delta T)
Pump System Redundant, N+1 configuration
Control Interface Integrated 10-inch touchscreen
Dimensions (HxWxD) 87 x 31 x 47 inches
Design Compact, fits standard raised floor layouts
Core Advantages and Benefits
  • Exceptional cooling capacity of over 800 kW provides future-proof solution for growing thermal loads
  • Integrated redundant pump system ensures exceptional reliability, eliminating single points of failure
  • Compact, space-saving design allows flexible deployment within standard data center layouts
  • User-friendly 10-inch touchscreen offers intuitive control and real-time system monitoring
  • Superior total cost of ownership and supports sustainable operations through exceptional cooling efficiency
The nVent RackChiller CDU800 is a cornerstone technology for any organization worldwide requiring dependable, high-efficiency liquid cooling. It empowers data centers to deploy next-generation hardware with confidence, ensuring stability and enabling innovation on a global scale.
