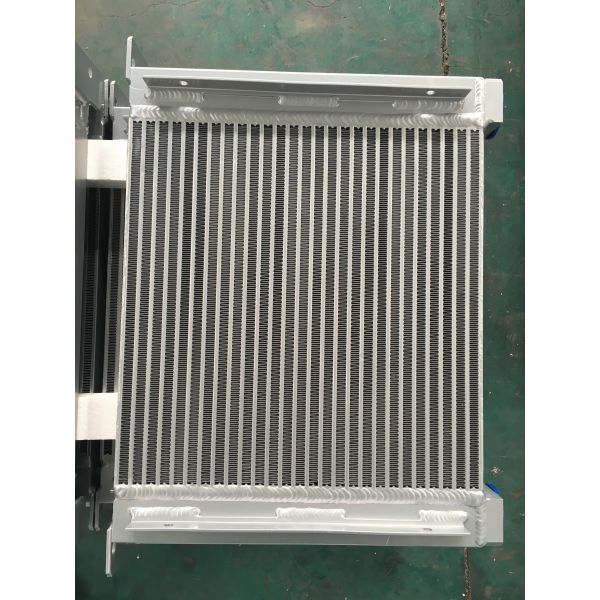

Marine Industry Grade Aluminum Alloy Plate Fin Type Heat Exchanger
Marine Industry Grade Aluminum Alloy Plate Fin Type Heat Exchanger
Specifications
Brand Name :
YUDA
Model Number :
B10769
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300PCS/Month
Delivery Time :
30days
Packaging Details :
Wooden Case
Application Standard :
Marine Industry and rail transit grade
Maximum Air Velocity Across Fins :
6.0 meters per second
Operating Temperature Range :
Minus 20 to 60 degrees Celsius
Total Dry Weight :
45 to 120 kilograms
Design Pressure :
1.0 MPa
Nominal Heat Transfer Coefficient :
450 to 720 W per square meter Kelvin
Flow Rate Range :
40 to 180 L per minute
Cooling Capacity :
Up to 85 kW
Installation Method :
Rail mounted or frame mounted
Allowable Thermal Shock :
25 degrees Celsius per minute
Description
Product Overview
The Marine Industry Grade High-Strength Aluminum Alloy Rail Transit Cooler with Serrated Fins and 1.0 MPa Design Pressure is a high-performance thermal management solution engineered for demanding industrial and transportation environments. Developed to meet stringent marine industry reliability and durability standards, this cooler provides stable heat dissipation for power electronics, traction systems, and auxiliary equipment operating under continuous load conditions.
Manufactured using high-strength aluminum alloy and optimized serrated fin structures, the cooler ensures excellent thermal conductivity while maintaining lightweight construction. The robust 1.0 MPa design pressure rating supports safe operation in harsh environments, making it suitable for applications where vibration, humidity, and temperature fluctuations are common.
Applications
  • Power conversion systems and traction inverters in rail transit systems
  • Control cabinets and electrical enclosures
  • Offshore platforms and marine transportation equipment
  • Coastal infrastructure requiring marine industry standards
  • Renewable energy installations and industrial automation systems
  • Heavy-duty electrical cabinets demanding stable cooling performance
Key Specifications
Parameter Specification
Compatible Coolants Water or water glycol solution
Working Pressure Range Up to 0.8 MPa
Design Pressure Up to 1.0 MPa (Standard)
Temperature Range -40°C to +150°C
Connections SAE, NPT, or BSPP fittings available
Customization Fully customizable dimensions, port locations, and circuit arrangements
Product Advantages
  • Optimized serrated fin structure increases heat exchange efficiency while reducing airflow resistance
  • High-strength aluminum alloy provides excellent corrosion resistance and mechanical stability
  • 1.0 MPa design pressure rating ensures safe operation in demanding conditions
  • Compact and lightweight structure simplifies installation in confined spaces
  • Low maintenance requirements and high operational efficiency reduce total lifecycle costs
  • Suitable for marine, coastal, and harsh industrial environments
Global Market Positioning
Designed for international markets, this marine industry grade rail transit cooler meets the expectations of global customers seeking reliable thermal management solutions. It is suitable for deployment across Asia, Europe, the Middle East, and the Americas, supporting modern rail systems, offshore platforms, and industrial power infrastructure worldwide.
