XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Zhejiang, China
Brand Name :
YIXIST
Model Number :
XLS-8310-01
Wavelength Range :
250-2500nm
Model :
XLS-8310-01
Power Supply Dimension :
214.5*88.2*354.6 mm
Spectral range :
250-2500nm
Uniformity :
> 98.5
Illumination :
> 20000 lux
Stability :
>99 (within 2 hours)
Price :
$3,678.00/pieces >=1 pieces
MOQ :
1 unit
Description
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
PRODUCT OVERVIEW
XLS-8310-01 Integrating sphere type uniform light source is a uniform light source produced by combining the integrating sphere with multiple controllable light sources. The light emitted from the light source is diffusely reflected on the inner wall of the sphere for countless times, and after full integration, a very uniform diffuse light is finally output at the exit of the sphere, which has the ideal Lambert cosine characteristics. In many fields such as national defense, scientific research and industry, the uniformity of the light source often has high requirements, and this uniform light source based on the integrating sphere is a more ideal solution.

Feature

Export spot uniformity > 98.5% Output illuminance value adjustable, 0-100000 lux Color temperature adjustable, 2850-6500 k (can be customized) Spectral range UV, VIS, IR (customizable) Exit spot Φ1-1000mm (customizable) Inner sphere coating material is PTFE Brightness range, light source wavelength, light power, etc. can be customized

Application

Defense, scientific research, industry and many other fields, such as uniform illumination source, optical instrument calibration; aerospace remote sensing telemetry system uniformity correction; digital camera/camera uniformity correction; CCD uniformity, spectral corresponding characteristics correction; calibration of electronic imaging equipment, etc.

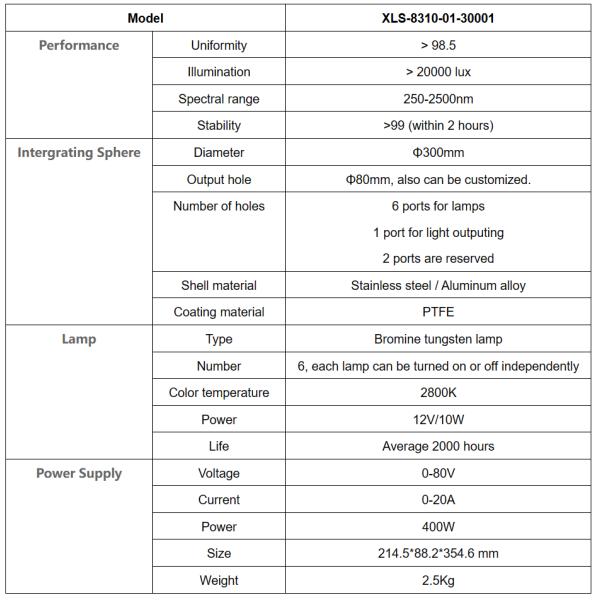

PRODUCT SPECIFICATIONS
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm

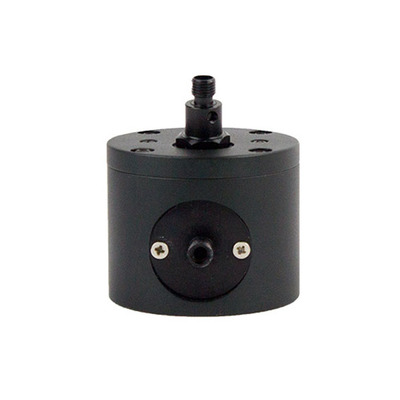

RELATED ACCESSORIES
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
Integrating Sphere for Irradiation
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
Integrating Sphere for Reflection
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm
Integrating Sphere Stage
COMPANY PROFILE
XLS-8310-01 Integrating Sphere Uniform Light Source for Spectral Range 250-2500nm

YIXI Smart Technology (YIXIST) Co., Ltd.
YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
