Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Zhejiang, China
Brand Name :
YIXIST
Model Number :
YLS-8302-02
Size :
91mm * 37mm * 120mm
Wavelength Range :
253nm-912nm
Model :
YLS-8302-02
Dimension :
91mm * 37mm * 120mm
Power :
3W
Current :
10A
Optical fiber connector :
SMA905
Bulb Type :
Mercury Lamp
Mercury Lamp Life :
2000 hours (typical value)
Price :
$369.00/pieces >=1 pieces
MOQ :
1 unit
Description
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer
PRODUCT OVERVIEW
A calibration light source is a standard instrumental light source for calibrating the optical measuring device itself. Currently, we only offer the YLS-8302-02 wavelength calibration light source for spectrometer wavelength calibration. The YLS-8302-02 wavelength calibration light source is a standard mercury light source for wavelength calibration in ultraviolet, visible, and near-infrared spectra (253-912 nm). A list of mercury lamp characteristic peaks available for wavelength comparison calibration is printed on the light source shell. SMA905 interface for easy connection to the device to be calibrated via optical fiber.

Feature

Primary emission spectral lines, high precision, no need for calibration Abundant spectral lines, can meet the calibration of 200-1100nm spectral instrument SMA905 fiber optic connector (other connectors can be customized)

Application

Wavelength calibration of spectral instruments.
PRODUCT SPECIFICATIONS
Model
YLS-8302-02
Dimension
91mm * 37mm * 120mm
Working Wavelength
253nm-912nm
Fiber Connector
SMA905
Current
10A
Power
3W
Voltage
12V DC
Bulb Type
Mercury Lamp
Mercury Lamp Life
2000 hours (typical value)

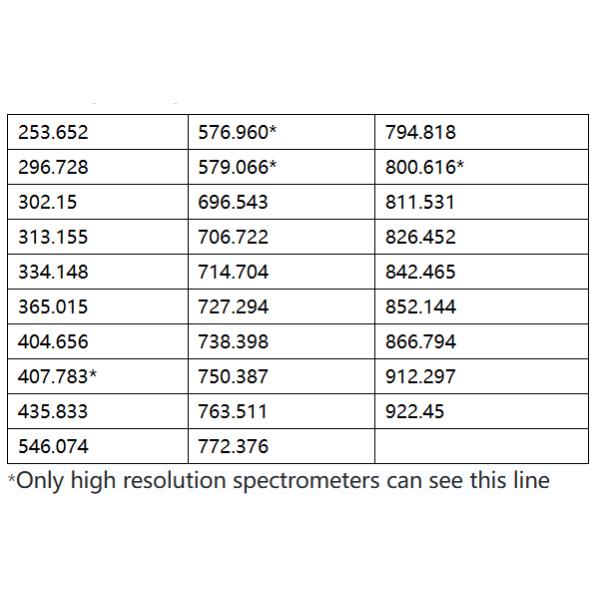

SPECTRAL PEAK
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer

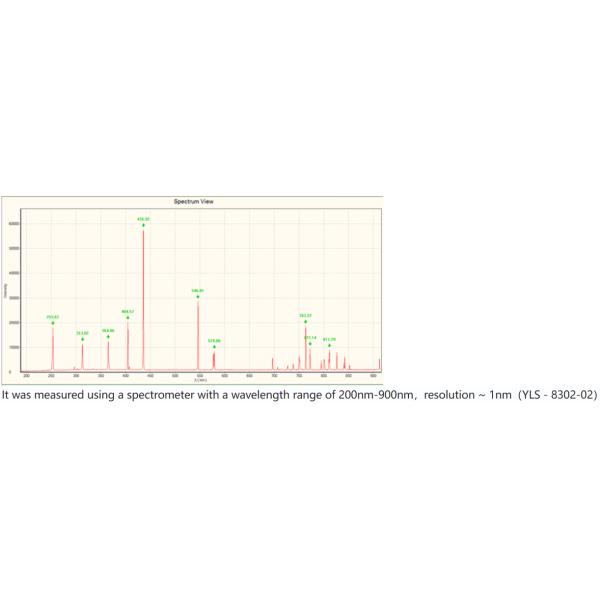

TYPICAL TESTING
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer
RELATED ACCESSORIES
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer
Fiber
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer
Spectrometer
YIXIST YLS-8302-02 Wavelength Calibaration Standard Light Source 3W for Spectrometer
Sample Holder
