2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Zhejiang, China
Brand Name :
YIXIST
Model Number :
YLS-8302-01-0230
Size :
100mm * 45mm * 36mm
Weight :
250g
Wavelength Range :
185 - 2000 nm
Model :
YLS-8302-01-0230
Dimension :
100mm * 45mm * 36mm
Power :
2W
Pluse Energy :
8.8mJ-13.8mJ optional
Arc Length :
3.0 ± 0.3 mm
Light output stability :
Max 1.5% CV; Max4.2% PV -1000 flash
Life (number of flashes) :
More than 100 million times
Input voltage :
DC -Min 11.0 - Max 28.0 V
Input Current :
11 V:Max 1.4 A
Price :
$708.00/pieces >=1 pieces
MOQ :
1 unit
Description
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
PRODUCT OVERVIEW

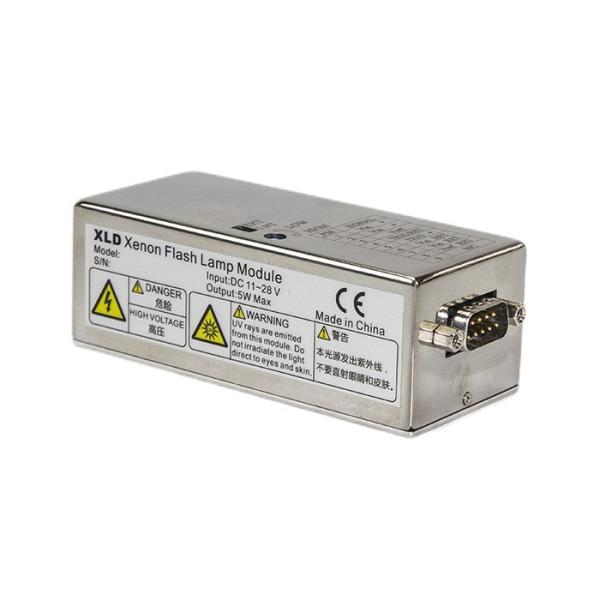

YLS-8302-01 series scintillation pulse xenon lamp is a new illuminant integrating a xenon lamp bulb, a trigger and a high voltage power supply. It is widely used in spectral measurement applications and is more integrated into industrial online testing systems because it requires no preheating and generates less heat.

Feature

High radiation intensity and high flash instantaneous power, which helps to improve the S/N ratio of the meter Wide spectral range, covering UV, visible and infrared, range 185-2000nm Ultra-long service life, more than 100 million times the number of flashes Good stability, 1000 times flash CV value ≤ 2% Small volume, small heat generation, bebeficial to the stability of the optical machine No warm-up, start immediately, save test time DB-9 connector, plug and play.

Application

UV, visible and infrared spectroscopic analysis. Fluorescence analysis. Medical: enzyme immunoassay, urine tangible imaging, small POCT biochemistry. Industrial automation strobe illuminant. Analysis of air pollution gas NO and SO2. Laboratory and online water pollution analysis.
PRODUCT SPECIFICATIONS
Model
YLS-8302-01-0230
YLS-8302-01-0530
Power
2W
5W
Pluse Energy
8.8mJ-13.8mJ optional
22.4mJ - 35.0mJ optional
Arc Length
3.0 ± 0.3 mm
Transparent panel material
DM308 glass, UV transparent glass
Optical radiation wavelength range
185 - 2000 nm
Light output stability
Max 1.5% CV; Max4.2% PV -1000 flash
Life (number of flashes)
More than 100 million times
Input voltage
DC -Min 11.0 - Max 28.0 V
Input Current
11 V：Max 1.4 A
Trigger voltage
5V square wave pulse; high level pulse width ≥10 μS
Ambient temperature
0 - +40°C
Storage temperature
-40 - +90°C
Use and storage humidity
Max 95% Rh
Cooling method
Natural cooling
Weight
250g
Size
100 x 45 x 36mm
TYPICAL TESTING
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
DIMENSION
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
RELATED ACCESSORIES
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
Fiber
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
Spectrometer
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing
Sample Holder
COMPANY PROFILE
2W Flash Xenon Light Source for 185-2000nm Wavelength Range and Spectroscopic Testing

YIXI Smart Technology (YIXIST) Co., Ltd.
YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which integrates research, development, manufacturing, and sales of digital and networked intelligent equipment.It is a vigorous and enterprising high-tech corporation founded by professors and engineers.

"Professionalism, concentration, and integrity" is our business philosophy. The company is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers continuously.YIXIST can independently manufacture complete sets of optical measuring equipment and provide comprehensive solutions for digital physics experiments development.
