YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V
Specifications
Brand Name :
YINGER HOIST
Model Number :
HHBB
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
0.5-10Ton electric hoist
Lifting Height :
3-10m
Sling Type :
G80 Chain
Lift Speed :
8m/min
product name :
HHBB hoist
Warranty :
1 Year
Remote control :
Handle or wireless
Usage :
Construction Hoist
Description

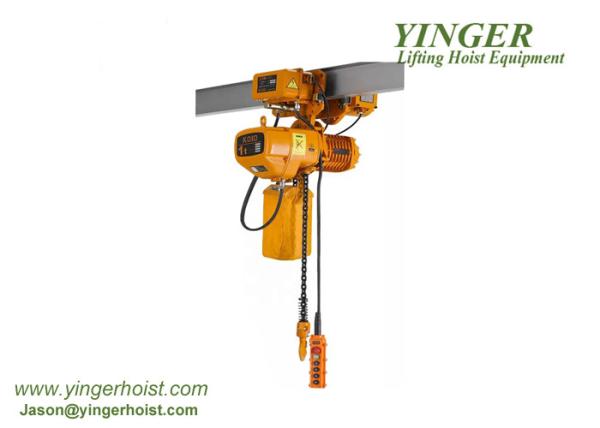

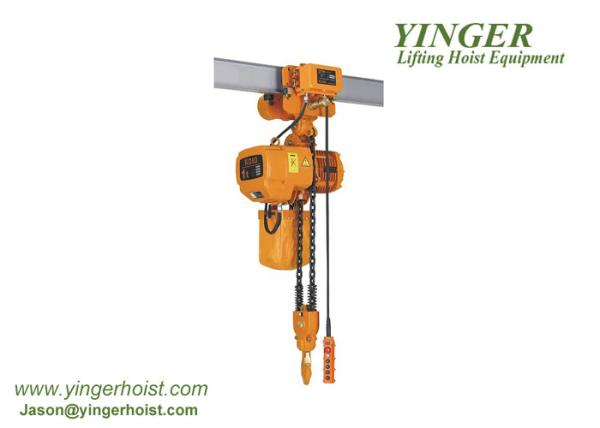

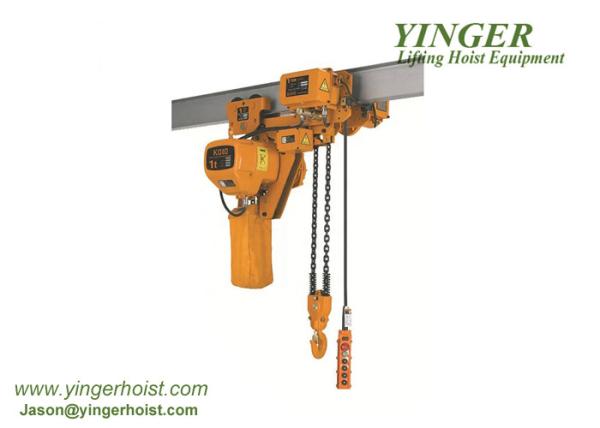

Electric Chain Hoist Lifting Hoist With Electric Trolley

YINGER HOIST Safe Brake System Electric Hoist G80 Chain Sling Type Easy Operated 1 ton electric chain hoist 110V

1. Motor brake: adopt advanced magnetic cone brake to provide reliable stopping

2. Chain guide: high quality design provides smooth and quiet guiding on the lifting chain

3. Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment

4. Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions;

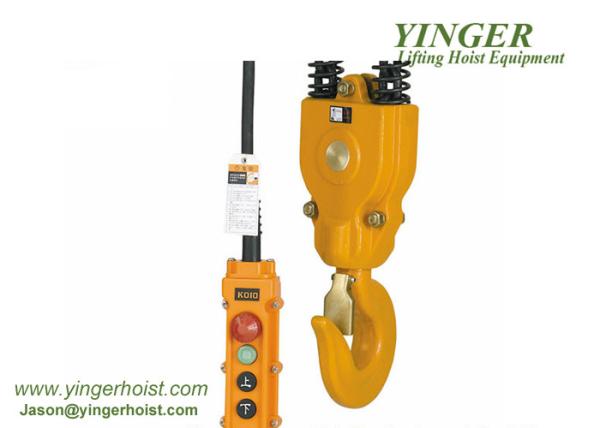

5. Hook: hot forged high tensile steel, rigid and durable, fitted with safety latch to ensure safety lifting

6. Push button pendant: water-Proof and insulated, provides light and durable switching controls.

Model HHBB
0.5-01S 01-01S 1.5-01S 02-01S 02-02S 2.5-01S 03-01S 03-02S 03-03S 05-02S
nominal load (t) 0.5t 1t 1.5t 2t 2.5t 3t 5t
lifting speed (m/min) 7.2 6.6 8.8 6.6 3.3 5.4 5.4 4.4 2.2 2.7
moto power (Kw) 0.8 1.5 3.0 3.0 1.5 3.0 3.0 3.0 1.5 3.0
rotate speed (r/min) 1440 r/min
Motor insulation class F
working voltage 3-Phase 380V 50Hz
control voltage 24V / 36V / 48V
chain black number 1 1 1 1 2 1 1 2 3 2
chain size Φ6.3 Φ7.1 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 10.0 Φ7.1 Φ11.2
net weight (kg) 47 61 108 115 73 115 122 131 85 151
