Specifications
Brand Name :
YINGER HOIST
Model Number :
HHBB
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1Ton electric hoist
Lifting Height :
3-10m
Sling Type :
G80 Chain
Lift Speed :
6.8m/min
product name :
HHBB hoist
Warranty :
1 Year
Overload protection :
included
Remote control :
Handle or wireless
Description

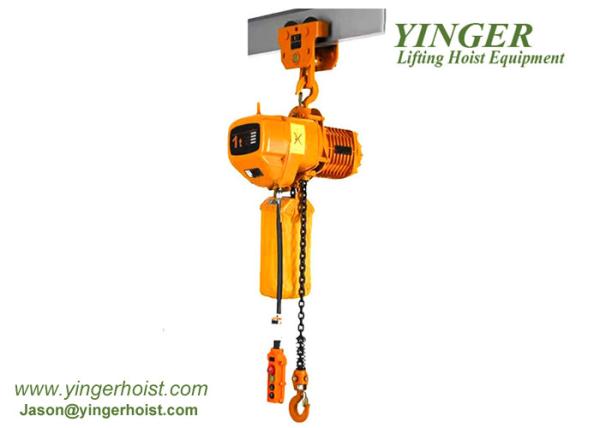

Fixed Hook Type 1 Ton Electric Chain Hoist Lifting Hoist Small Chain Electric Hoist

Fixed Hook 1 Ton Electric Chain Hoist Light Aluminum Alloy Shell Materials electric chain hoist 500kg outdoor electric

Features :

Sheel:
1. The Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.

Break System:
1. Side Magnetic Braking Device, Ensure lock the hoist
2. Mechanical braker, Dual braking system, much more safety.

Limit Switch:
With up & down Limit Switch, to prohibit the chains from exceeding for safety.

Chain:
FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion

Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.

Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.

Gear:
The gear made of alloy steel, Through the heat treatment.

Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65

Power supply:
All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P

Working Grade:
M4/1Am

Model HHBB
0.5-01S 01-01S 1.5-01S 02-01S 02-02S 2.5-01S 03-01S 03-02S 03-03S 05-02S
nominal load (t) 0.5t 1t 1.5t 2t 2.5t 3t 5t
lifting speed (m/min) 7.2 6.6 8.8 6.6 3.3 5.4 5.4 4.4 2.2 2.7
moto power (Kw) 0.8 1.5 3.0 3.0 1.5 3.0 3.0 3.0 1.5 3.0
rotate speed (r/min) 1440 r/min
Motor insulation class F
working voltage 3-Phase 380V 50Hz
control voltage 24V / 36V / 48V
chain black number 1 1 1 1 2 1 1 2 3 2
chain size Φ6.3 Φ7.1 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 10.0 Φ7.1 Φ11.2
net weight (kg) 47 61 108 115 73 115 122 131 85 151

Fixed Hook 1 Ton Electric Chain Hoist Light Aluminum Alloy Shell Materials electric chain hoist 500kg outdoor electric

Fixed Hook 1 Ton Electric Chain Hoist Light Aluminum Alloy Shell Materials electric chain hoist 500kg outdoor electric
