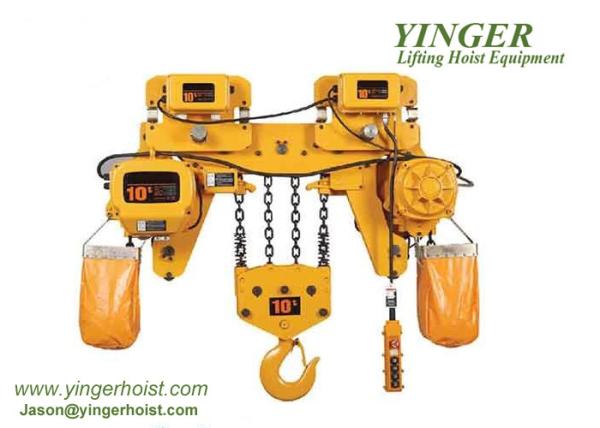

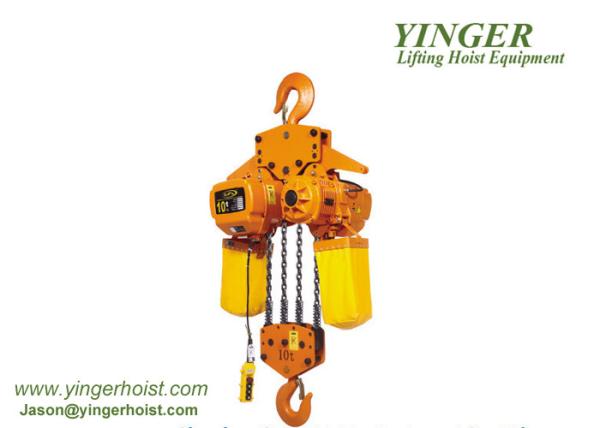

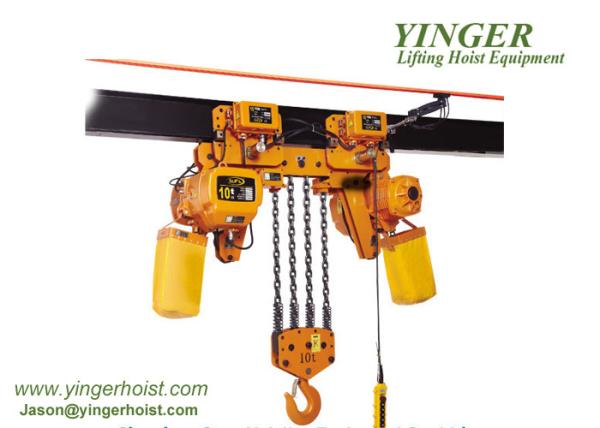

High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
Specifications
Brand Name :
YINGER HOIST
Model Number :
HHBB
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Description

electric hoist chain hoist HHBB electric hoist with electric trolley

High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist

HHBB Elcetric chain hoist is an ideal tool to lift heavy objects,load and unload ,maintain equipment,with reliable performance ,convenient operation,advanced structure,small volum and wide application. We are specializes in designing and manufacturing of mendinm top grade manual chain block.lever block,electric chain hoist and some other lifting equipment.

Features of electric chain hoist :

1.Shell

2.The Electromagnetic Brake

3.The Mechanical Load Brake

4.Chain

5.Hook and safety tongue

6.Support frame

7.Transformer

8. Electromagnetic contactor

9.The back-phase protect

10. Limit switch

11.The emergency-stop switch (if selected)

12. Customized service:

Model HHBB
0.5-01S 01-01S 1.5-01S 02-01S 02-02S 2.5-01S 03-01S 03-02S 03-03S 05-02S
nominal load (t) 0.5t 1t 1.5t 2t 2.5t 3t 5t
lifting speed (m/min) 7.2 6.6 8.8 6.6 3.3 5.4 5.4 4.4 2.2 2.7
moto power (Kw) 0.8 1.5 3.0 3.0 1.5 3.0 3.0 3.0 1.5 3.0
rotate speed (r/min) 1440 r/min
Motor insulation class F
working voltage 3-Phase 380V 50Hz
control voltage 24V / 36V / 48V
chain black number 1 1 1 1 2 1 1 2 3 2
chain size Φ6.3 Φ7.1 Φ10.0 Φ10.0 Φ7.1 Φ11.2 Φ11.2 10.0 Φ7.1 Φ11.2
net weight (kg) 47 61 108 115 73 115 122 131 85 151

High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoistHigh Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist

High Efficiency Electric Chain Hoist Customized Color With Waterproof Push Button 10 ton electric chain hoist
