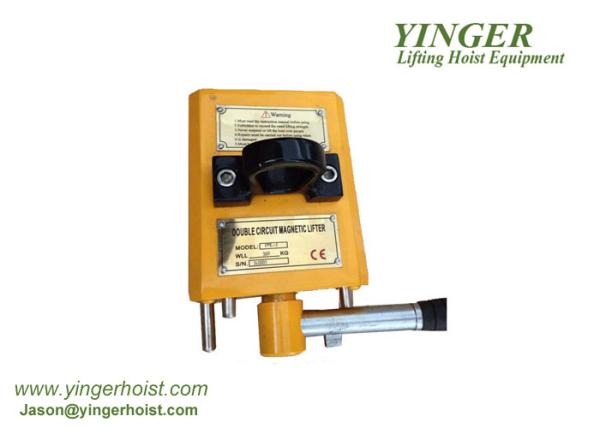

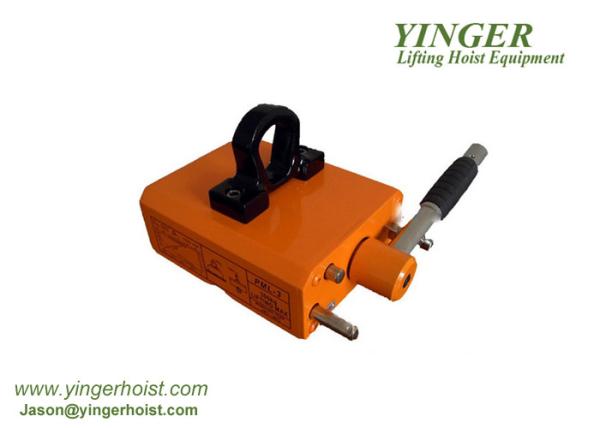

Double Circuit Magnetic Lifting Device 3 Times / 3.5 Times Safety Factor
Double Circuit Magnetic Lifting Device 3 Times / 3.5 Times Safety Factor
Double Circuit Magnetic Lifting Device 3 Times / 3.5 Times Safety Factor
Double Circuit Magnetic Lifting Device 3 Times / 3.5 Times Safety Factor
Specifications
Brand Name :
YINGER HOIST
Model Number :
PML
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7 days after recipt of the payment
Packaging Details :
Usually packed by wooden case. or according to customers' demand
Price :
Negotiable
Material of coil :
Ne-Fe-B
Magnetic Lifter Type :
Manual
Safety factor :
3 times and 3.5 times
Application :
Lift Steel Plates or pillar
Description

1ton 2ton 3ton 5ton 6ton Double Circuit Lifting Magnet Lifter

1. Permanent magnetic lifters has strong magnetic circut by permanet magnetic materials,

2. Mainly used for hoisting and handling the flat ferrous steel plate or cylindrical ferrous steel.

3. The working performance is stable and lasting.

4. Double magnetic circuit lifters have strong magnetic path by NdFeb magnetic materials.

5. Higher magnetism, less weight and less remaining magnetism when being off. which makes a more reasonable structure.

Type Rated Load/kg Max Breakaway Size(mm) Net Weight(kg)
L B H R
YS-100 100 300 123 62 67 140 3
YS-400 400 1200 195 95 92 160 9
YS-600 600 1800 246 120 115 220 20
YS-1000 1000 3000 298 153 135 250 36
YS-2000 2000 5000 395 172 165 350 68
YS-3000 3000 7500 480 175 165 350 80
YS-4000 4000 10500 560 175 165 360 109
YS-5000 5000 12500 570 230 215 680 192
YS-6000 6000 15000 780 230 215 720 218

Double Circuit Magnetic Lifting Device 3 Times / 3.5 Times Safety Factor
