Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Specifications
Brand Name :
YINGER HOIST
Model Number :
PML-600KG
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7 days after recipt of the payment
Packaging Details :
Usually packed by wooden case. or according to customers' demand
Price :
Negotiable
Composite :
Permanent NdFeB Magnet
Application :
Lifting steel
Safety Factory :
3.5 times
Capacity :
100kg-10T
Color :
Yellow or up to you
Description

Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite

1) Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force.

2) High safety factor up to 3.5 times pulling-out force than rated lifting.

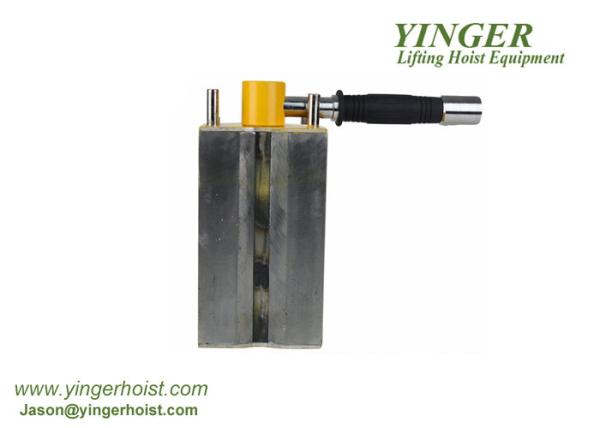

3) V style design at the bottom of lifter,can lift opposite round steel or steel board.

4) Easy to use and free to power.

5) Optimized magnetic circuit design makes residual magnetism almost zero.

6) Professional appearance design makes product more attractive.

SPECIFICATIONS FOR 0.1-10 TON PERMANENT MAGNETIC LIFTER
Model
Rated Lifting(KG)
Boundary Dimension(MM)
MAX Lift
Net Weight
Steel
Cylidrical Workpie
L
B
H
R
KG
KG
YC-1
100
50
95
77
80
155
350
3.5
YC-3
300
150
163
105
110
185
1050
11.5
YC-4
400
200
201
115
115
210
1400
18.2
YC-6
600
300
221
120
125
235
2100
25
YC-10
1000
500
295
145
152
265
3500
48
YC-15
1500
750
313
145
152
350
5000
55
YC-20
2000
1000
360
170
178
426
6000
90
YC-30
3000
1500
460
180
186
520
9000
120
YC-50
5000
2500
660
260
280
650
15000
240
YC-100
10000
5000
870
260
300
750
30000
500

Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
Light Weight Manual Permanent Magnetic Lifter Strong NdFeB Magnet Composite
