Hand Hold Permanent Lifting Magnets Patent Circuit Design For Mould Producing Industry
Hand Hold Permanent Lifting Magnets Patent Circuit Design For Mould Producing Industry
Hand Hold Permanent Lifting Magnets Patent Circuit Design For Mould Producing Industry
Hand Hold Permanent Lifting Magnets Patent Circuit Design For Mould Producing Industry
Specifications
Brand Name :
YINGER HOIST
Model Number :
PML-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000Units/month
Delivery Time :
7 days after recipt of the payment
Packaging Details :
Usually packed by wooden case. or according to customers' demand
Price :
Negotiable
Application :
Industrial Magnet
Capacity :
100kg-10T
Description

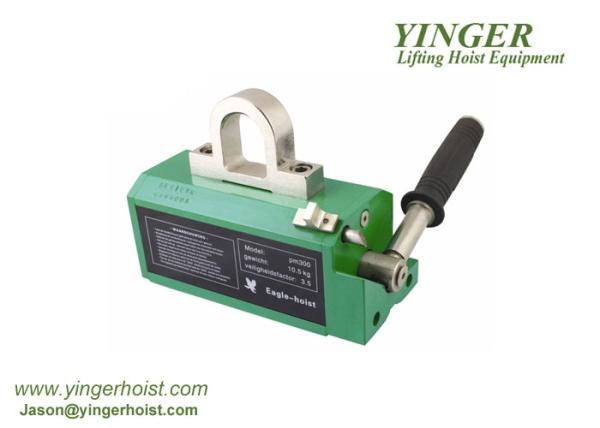

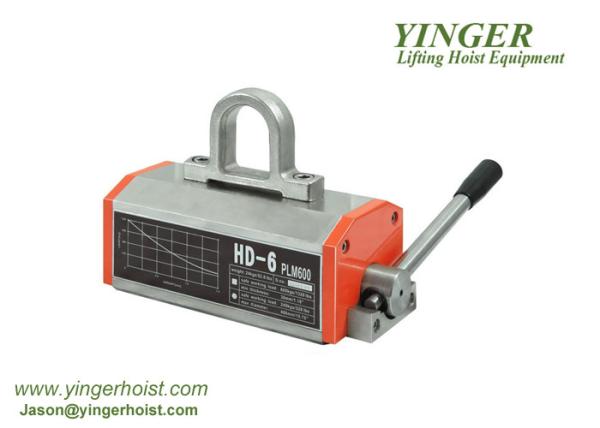

Strong Permanent Magnetic Lifter Hand Hold Lifter NdFeB Magnetic Lifter

1. Widely used in machining, mould producing industry.

2. Using high-performance permanent magnetic materials, Strong in magnetic suction, patent circuit design, remanence almost zero.

3. High safety factor, maximal breakway force is 3.5 times rated lifting power.

4. Handle switches with safety twist, easy for Single-hand operation, more safety and convenience.

5. V style design at the bottom of lifter,can lift opposite round steel or steel board.

6. Without electricity, magnetic lasting popularity, more safety on using, aside may operated at open country.

work piece shape steel plate round steel products
Part No. Rated lifting force (kgs) Mini Thickness (mm) Max Length (mm) Rated lifting force (kgs) Max diameter (mm) Max Length (mm) Min Thickness (mm)
PML-100A 100 10 1000 50 100 1000 10
PML-300A 300 20 1500 150 300 1500 12
PML-600A 600 30 2000 300 400 2000 20
PML-1000A 1000 40 3000 500 450 3000 28
PML-1500A 1500 50 3000 750 500 3000 34
PML-2000A 2000 60 3000 1000 600 3000 40
PML-3000A 3000 60 4000 1500 700 40000 50
