5 Portable Computer Monitor 5 Point Capacitive Touch Screen Monitor 800x480
5 Portable Computer Monitor 5 Point Capacitive Touch Screen Monitor 800x480
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Place of Origin :
Guangdong, China
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Delivery Time :
10-30 work days
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
MOQ :
300pcs
Brand Name :
XXT
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
acity: 5K/Month
Model Number :
YCH050WVC-T
Name :
Portable Computer Monitor
Drive System :
a-Si TFT active matrix
Price :
$37-40/pieces
Description

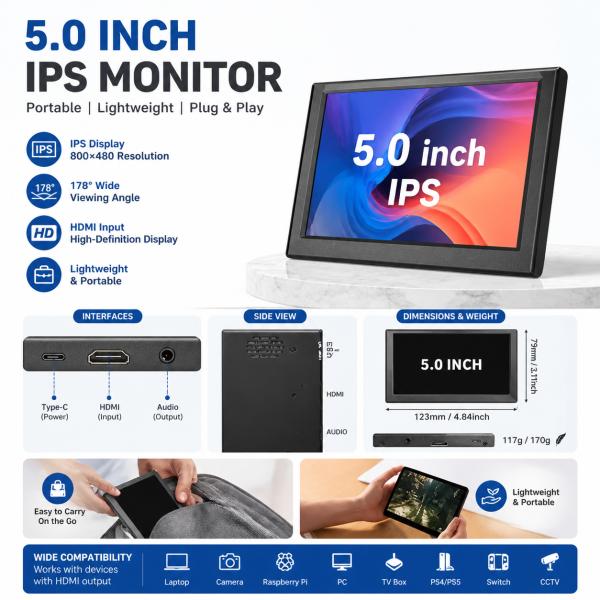

5" HDMI IPS Display with 800×480 Resolution and 5-Point Capacitive Touch in Compact Aluminum Housing
Product Overview

This 5-inch IPS portable monitor features a compact design with an 800*480 resolution and responsive 5-point capacitive touch. It is engineered for embedded systems, mini PCs, development boards, and multimedia applications.

With wide viewing angles, stable performance, and plug-and-play HDMI connectivity, this display is ideal for engineers, developers, and system integrators.

Key Features
  • 5.0-inch IPS display with wide 170° viewing angle
  • 800*480 resolution with clear and stable image output
  • 5-point capacitive touch for smooth interaction
  • HDMI input for video and audio transmission
  • USB-C interface for power and touch signal
  • Built-in dual stereo speakers (1.5W * 2)
  • Durable aluminum alloy housing (black/white optional)

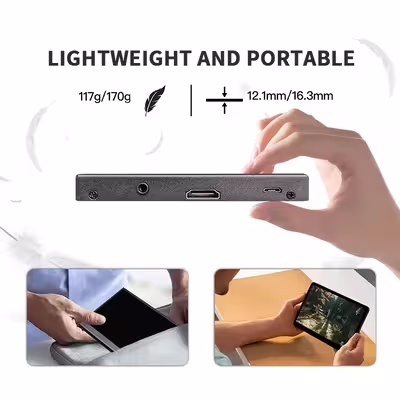

  • Compact and lightweight for portable applications
  • Supports embedded boards, mini PCs, and gaming devices

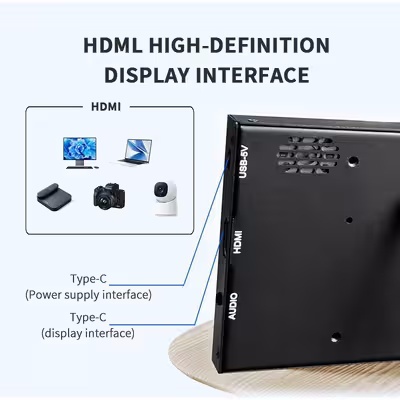

Interface & Controls
No. Interface Description
1 USB-C Power supply and touch signal input
2 HDMI Video & audio input (mini HDMI / standard HDMI)
3 Audio 3.5mm headphone output
4 LED Indicator Power status (Green: On / Red: Off)
5 Power Button On/Off control
6 Menu OSD menu / confirm
7 Up Navigation / volume increase
8 Down Navigation / volume decrease
9 Exit Exit menu / switch input source
10 Speakers Built-in 1.5W * 2 stereo speakers
Mechanical Design
Feature Description
Mounting Holes Compatible with common single-board computer layouts
VESA Support 75 * 75 mm standard mounting
Installation Multiple fixing points for flexible integration
Adjustable Stand Optional bracket support
Compatibility & Connectivity
Desktop Systems (Windows / macOS / Linux)
  • Connect via HDMI for display output
  • USB connection required for touch functionality
  • Plug-and-play (driver-free for most systems)
  • Note: Touch function may vary depending on OS version
Embedded Systems / Development Boards
  • Supports popular ARM-based platforms and mini PCs
  • Requires system configuration for optimal resolution
  • Stable operation with sufficient power supply
Gaming Devices / TV Boxes
  • HDMI display supported
  • Touch function not supported on most gaming systems
Technical Specifications
Parameter Specification
Screen Size 5.0 Inch
Resolution 800 * 480
Display Type IPS
Viewing Angle 170°
Brightness 300 cd/m²
Contrast Ratio 800:1
Response Time 25 ms
Aspect Ratio 16:9
Color Gamut 50% NTSC
Touch 5-Point Capacitive Touch
Power Supply DC 5V / 1A
Audio 1.5W * 2 Speakers
Material Aluminum Alloy

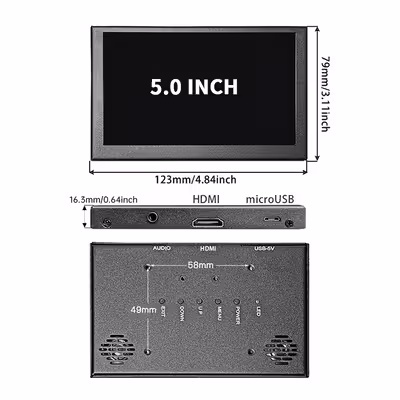

Dimensions 123 * 79 * 16.3 mm
Applications
  • Embedded system development
  • Industrial control interfaces
  • IoT and smart devices
  • Portable monitoring systems
  • DIY electronics projects
  • Secondary display for compact setups

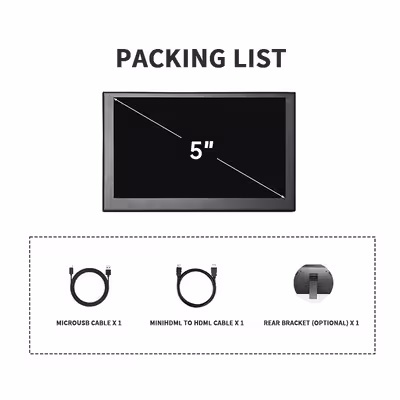

Package Contents
  • 5 Inch IPS LCD Monitor
  • HDMI Cable
  • USB Cable
  • User Manual
Troubleshooting
No Display / Black Screen
  • Ensure power is connected before HDMI
  • Avoid using signal converters
  • Check output signal from host device
  • Verify system display settings
Unstable Display / Flickering
  • Use stable 5V power supply
  • Replace HDMI cable if needed
  • Ensure sufficient current for embedded boards
Touch Not Working
  • Confirm USB connection supports data transfer
  • Restart system after connection
  • Verify touch function is enabled on host
Why Choose This Product
  • Factory direct supply with stable quality control
  • Designed for global compatibility and integration
  • Compact, durable, and easy to deploy
  • Ideal for OEM/ODM projects and bulk orders
