Ultra Wide Stretched LCD Screen 16.4 Bar LCD Screen 700 Nits Brightness With Cloud Remote Control
Ultra Wide Stretched LCD Screen 16.4 Bar LCD Screen 700 Nits Brightness With Cloud Remote Control
Specifications
Payment Terms :
T/T
Color Gamut :
72 % of NTSC(Typ.)
Brand Name :
XXT
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
View Direction :
free/all
Delivery Time :
14-30 days
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Supply Ability :
1000/month
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
MOQ :
500
Price :
162.99~182.69/pc
Place of Origin :
Guangdong, China
Drive System :
a-Si TFT active matrix
Signal Interface :
LVDS
Model Number :
YC164FWXG-S01
Outline :
118.5×84.7×5.2 mm
Description

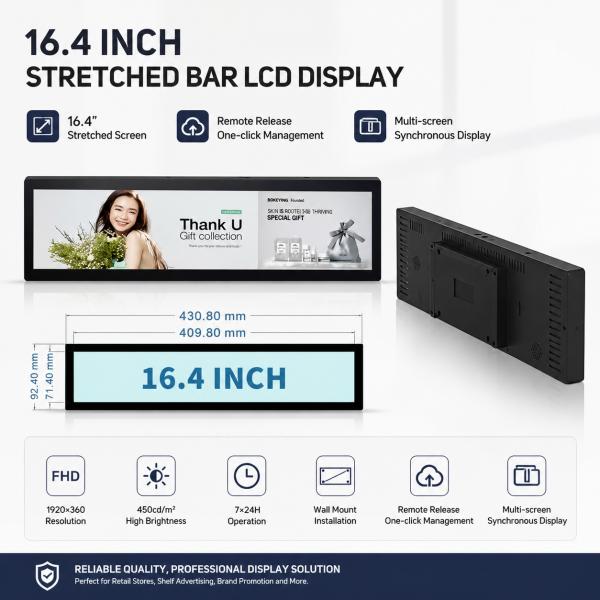

16.4" Ultra Wide Stretched LCD Screen with 700 Nits Brightness and Cloud Remote Control for Digital Signage
Product Overview

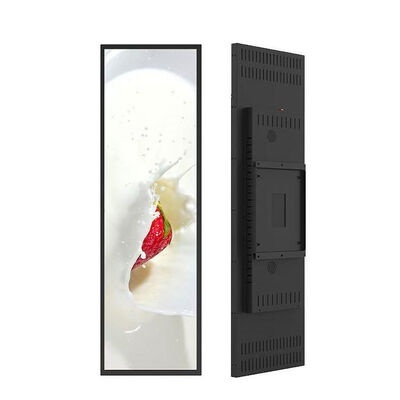

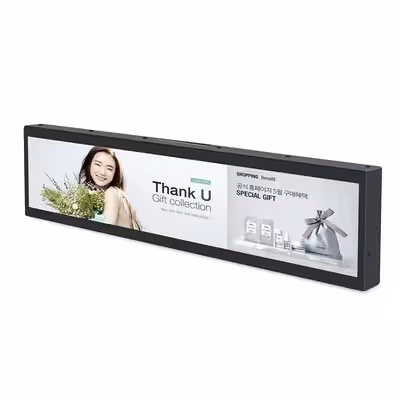

The YC164FWXG-S01 is a 16.4-inch ultra-wide stretched bar LCD display designed for commercial shelf advertising and digital signage applications. With its slim profile, high brightness, and wide viewing angle, it delivers eye-catching content in compact spaces—perfect for retail, hospitality, and public environments.

Key Specifications
Item Description
Model YC164FWXG-S01
Brand XXT
Display Size 16.4 Inch
Resolution 1366 * 238
Panel Type IPS
Viewing Angle 89° / 89° / 89° / 89°
Brightness 700 cd/m²
Active Area 409.8 * 71.4 mm
Outline Dimensions 432.3 * 93.9 * 17.8 mm
Material Metal + Tempered Glass
Power Supply AC 90–230V
Power Consumption ≤18W
Certifications CE / RoHS / CB
Origin Guangdong, China
Key Features
Ultra-Wide Stretched Design

Designed for shelf-edge and narrow spaces, the elongated format maximizes visual impact without occupying excess space.

High Brightness & Clear Display

With 700 nits brightness and 1366*238 resolution, the screen ensures vivid and sharp content even in brightly lit environments.

IPS Wide Viewing Angle

Enjoy consistent color and clarity from all directions with a full 178° viewing angle.

Remote Content Management

Supports cloud-based remote control and one-click content updates, making it easy to manage multiple screens across different locations.

Slim & Energy Efficient

Ultra-thin design (only 17.8mm) with low power consumption (≤18W), ideal for long-term commercial use.

Global Compatibility

Wide voltage support (AC 90–230V) ensures stable operation worldwide.

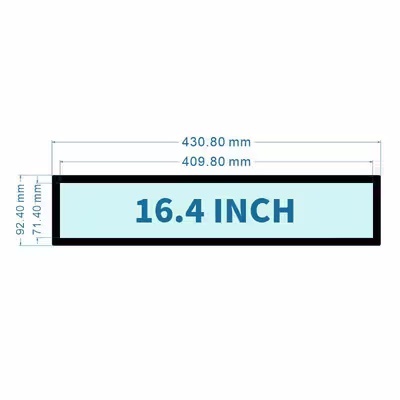

Product Dimensions
  • Active Display Area: 409.8 * 71.4 mm
  • Overall Size: 432.3 * 93.9 * 17.8 mm

The compact and slim design allows easy installation in tight or limited spaces, making it highly adaptable for various commercial environments.

Application Scenarios
  • Retail shelf advertising
  • Supermarkets & convenience stores
  • Restaurants & hotels
  • Hospitals & clinics
  • Transportation hubs (airports, subway stations)
  • Digital signage networks
  • Exhibition displays

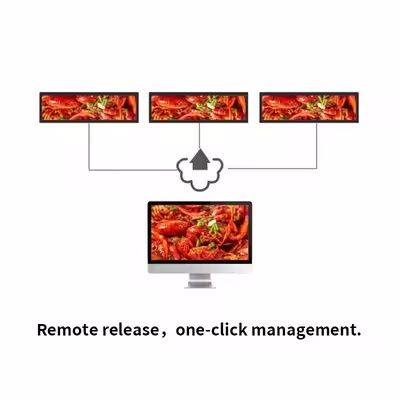

Smart Remote Management

With integrated cloud technology, users can:

  • Control multiple displays remotely
  • Update content in real-time
  • Synchronize advertising campaigns
  • Reduce manual operation costs

Ideal for chain stores and multi-location businesses.

Customization Options

We provide flexible customization to meet different project needs:

  • Brightness: 200–1000 nits (indoor/outdoor)
  • Touch Function: Optional touch support
  • Cover Glass: Custom size, thickness, logo printing
  • FPC Design: Adjustable interface & layout
  • Driver IC: Custom solutions available
Why Choose Us
  • Direct manufacturer with export experience
  • Stable quality with international certifications
  • Flexible OEM/ODM services
  • Competitive pricing for bulk orders
  • Fast delivery & professional support
Contact Us

Looking for a reliable stretched LCD display supplier?

Contact us today for datasheets, pricing, and customization solutions.
