7 HDMI Portable Monitor 1024x600 IPS Portable Monitor For Raspberry Pi, Pc And Embedded Systems
7 HDMI Portable Monitor 1024x600 IPS Portable Monitor For Raspberry Pi, Pc And Embedded Systems
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Payment Terms :
T/T
Viewing Area :
116.2mm×87.1mm
Price :
$41.5-45/pieces
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Delivery Time :
10-30 work days
Operating_Temperature :
-20°C to 70°C
Place of Origin :
Guangdong, China
Model Number :
YCH070WVD-T
Name :
HDMI Portable Monitor
Brand Name :
XXT
MOQ :
300
Drive System :
a-Si TFT active matrix
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
1000/month
Description

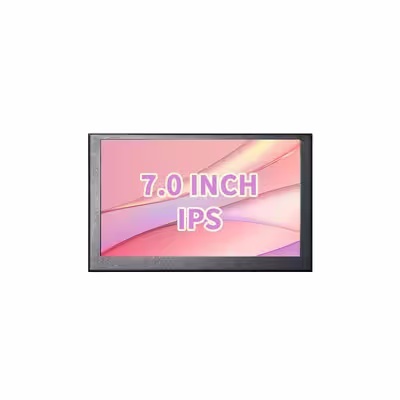

7" HDMI IPS Display 1024×600 | Portable Monitor for Raspberry Pi, PC & Embedded Systems
Product Overview

The YCH070WVD-T is a compact and versatile 7-inch IPS portable monitor designed for embedded systems, development environments, and portable display applications. With a resolution of 1024*600 and 5-point capacitive touch functionality, it delivers stable image quality and responsive interaction.

Equipped with HDMI input, wide viewing angles, and a durable aluminum housing, this monitor is ideal for Raspberry Pi projects, industrial control systems, and secondary display setups.

Key Features
  • 7-inch IPS panel with 170° wide viewing angle
  • 1024*600 resolution for clear and stable visuals
  • 5-point capacitive touch for precise interaction
  • HDMI plug-and-play connectivity
  • Compatible with Raspberry Pi, Windows, Linux, and partial macOS
  • Built-in dual stereo speakers (1.5W *2)
  • Slim aluminum alloy design (17.3mm thickness)
  • Supports VESA mounting and embedded installation
Typical Applications
  • Raspberry Pi and embedded development
  • Industrial control and HMI systems
  • Portable secondary monitor
  • DIY electronics and IoT projects
  • Gaming console display
  • Smart home interfaces
Technical Specifications
Model YCH070WVD-T
Screen Size 7.0 inch
Resolution 1024 * 600
Display Type IPS
Viewing Angle 170°
Aspect Ratio 16:9
Brightness 300 cd/m²
Contrast Ratio 800:1
Response Time 25 ms
Color Gamut 50% NTSC
Touch 5-point capacitive touch
Audio 1.5W *2 speakers
Power Supply DC 5V / 1A
Interface HDMI, USB-C (power + touch), 3.5mm audio
Material Aluminum alloy
Dimensions 171 * 103 * 17.3 mm

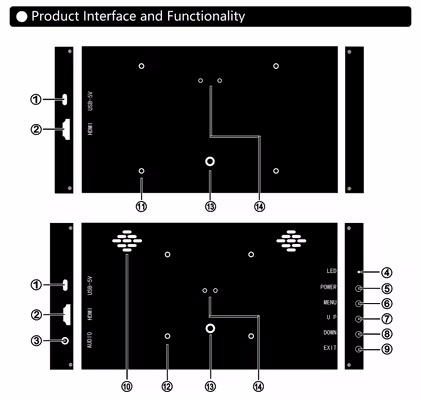

Interface and Controls
  • USB-C: power input and touch signal
  • HDMI: video and audio input
  • 3.5mm audio output
  • OSD buttons: menu / volume / input switching
  • LED indicator: power status
Mounting and Mechanical Design
  • Raspberry Pi mounting holes (58 * 49 mm)
  • VESA mounting support (75 * 75 mm)
  • Optional adjustable bracket
  • Suitable for wall mounting and embedded integration
Compatibility
  • Windows — full support with touch
  • Raspberry Pi — full support (configuration required)
  • Linux — supported
  • macOS — limited touch compatibility
  • Gaming consoles / TV box — display only (no touch support)
Raspberry Pi Setup

Add the following lines to config.txt:

max_usb_current=1 hdmi_force_hotplug=1 config_hdmi_boost=7 hdmi_group=2 hdmi_mode=87 hdmi_drive=2 hdmi_cvt 1024 600 60 6 0 0 0
Package Contents
  • 7-inch IPS LCD monitor
  • HDMI cable
  • USB cable
  • User manual
Troubleshooting
No display
  • Connect power before HDMI
  • Avoid HDMI converters
  • Check signal output
Screen flickering
  • Ensure sufficient power (≥3A for Raspberry Pi)
  • Replace HDMI cable
Touch not working
  • Confirm USB connection
  • Restart system
  • Verify touch function support
OEM / ODM Services
  • Custom logo printing
  • Interface and structure customization
  • Bulk order support
  • Technical integration assistance
