8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
Specifications
Brand Name :
XXT
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Price :
$42-55/pieces
Supply Ability :
10K/Month
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Delivery Time :
30-45days
Viewing Area :
116.2mm×87.1mm
Place of Origin :
Guangdong, China
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Model Number :
YBC088JVH-Q1(With Touch)/YBN088JVH-Q1(Without Touch)
Packaging Details :
300*120*60mm/900g
Name :
HDMI LCD Display
MOQ :
100
Payment Terms :
T/T
Color Gamut :
72 % of NTSC(Typ.)
Drive System :
a-Si TFT active matrix
Description
XXT 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBC088JVH-Q1(With Touch)/YBN088JVH-Q1(Without Touch)
Document
Type:
HDMI LCD Display 480x1920
Display Size:
8.8 Inch
Supplier Type:
Factory
Video Input:
HDMI
Brightness:
500+cd/m²
Highlight:

8.8 inch HDMI LCD Display

,

480x1920 resolution Computer Secondary Screen

,

IPS full-angle panel Long-strip Display

Product Description
XXT 8.8 Inch HDMI 480*1920 Long-strip Display
Computer secondary screen for real-time monitoring display with AIDA64 case DIY metal casing
Key Features
  • 8.8-inch IPS full-angle panel with excellent viewing angles
  • HDMI video input compatibility
  • High resolution: 480 * 1920 pixels
  • Full protective shell with durable metal casing
  • Tempered glass panel with 6H hardness, scratch-resistant
  • Compatible with mainstream Mini PCs including Raspberry Pi, Banana PI, and BB Black
  • Raspberry Pi display support for Raspbian, Ubuntu, Kali, Win10 IoT systems
  • Computer monitor functionality supporting Win7, Win8, Win10, Win11 systems
  • Universal HDMI display connectivity

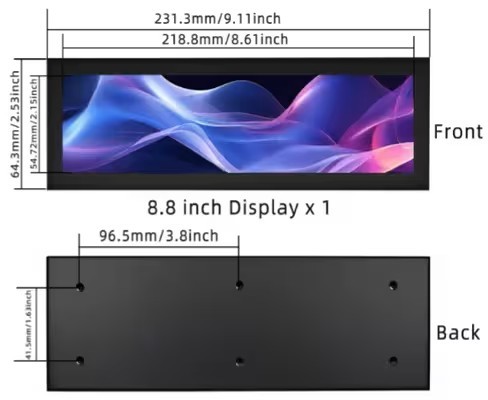

Product Image
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
Technical Specifications
Parameter Value Unit Parameter Value Unit
LCD Size 8.8 inch Panel Type IPS -
Resolution 480 * 1920 (RGB) pixels Active Area 54.72(W) * 218.88(H) mm
Number of Colors 16.7M Outline Dimension 76.45(W) * 239.8(H) * 14.6(T) mm
View Angle 170 deg Luminance (TYP) 580 (No Touch) / 520 (Touch) cd/m²
Contrast 800 Backlight Type White LED
Backlight Current 160 mA Operation Temperature -20 ~ 70 ℃
Pixel Pitch 0.114 * 0.114 mm Storage Temperature -30 ~ 80 ℃
Video Input HDMI Power Type-C
Voltage 5.0 V Total Power (max) 3.8 W
Weight 375 (No touch) / 425 (Touch) g Part No. MPC8801 (Touch) / MPC8802 (No Touch)

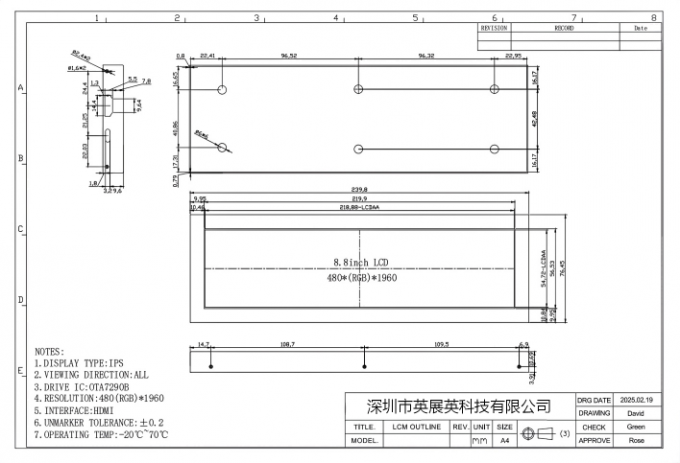

Product Drawings
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
Interface and Switch Configuration
Interface Function Description
HDMI HDMI interface for connecting motherboard and LCD monitor for HDMI transmission
Type-C USB Touch / power supply connector for power supply and touch output (both functions identical, use either one)

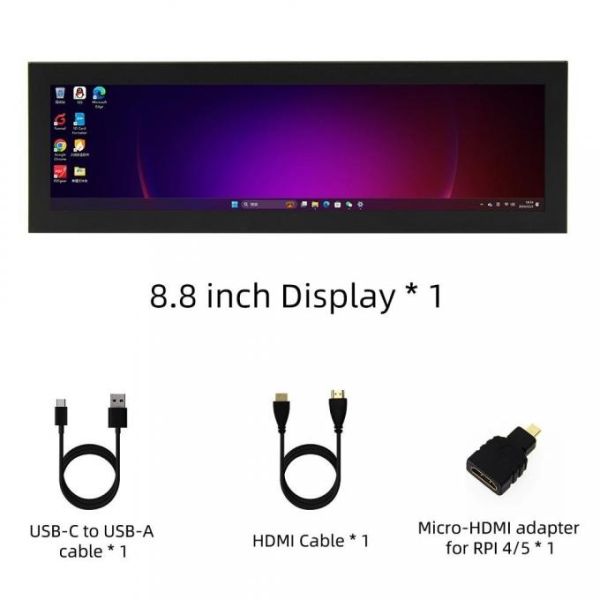

Connection Demonstration
8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen
