Specifications
Outline :
118.5×84.7×5.2 mm
Delivery Time :
30-45days
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Brand Name :
XXT
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
MOQ :
100
Operating_Temperature :
-20°C to 70°C
Packaging Details :
134*98*52(mm)/140g
Color Gamut :
72 % of NTSC(Typ.)
Model Number :
YQ84-43DSI
Supply Ability :
50K/Month
Drive System :
a-Si TFT active matrix
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Name :
HDMI LCD Display
Price :
$21.5-24.2/pieces
Viewing Area :
116.2mm×87.1mm
Description
XXT 4.3 Inch 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Detail Information
Place of Origin
China
Brand Name
XXT
Model Number
YQ84-43DSI
Type:
HDMI Display
Display Size:
4.3 Inch
Supplier Type:
Factory
Video Input:
HDMI
Highlight:

4.3 Inch Capacitive Touch Screen

,

800x480 Capacitive Touch Screen Display

,

4.3 Inch IPS Touch Display

Product Description
XXT 4.3 Inch 800x480 Capacitive Touch Screen Display IPS TFT Raspberry Pi Compatible for Windows 11/10/8.1/8/7
This 4.3-inch capacitive touch screen display features 800×480 resolution with IPS TFT technology, offering wide viewing angles and vibrant colors. Designed for seamless compatibility with Raspberry Pi and Windows systems, it provides plug-and-play functionality with no driver installation required.
Key Features
  • 800×480 resolution capacitive touch IPS screen
  • Raspberry Pi MIPI DSI interface for direct output (plug and play)
  • Supports official Raspbian system with 2-point zoom functionality
  • Compatible with Ubuntu/Kali/Win10 IoT (single touch)
  • Supports Retropie
  • Backlight brightness adjustment button
  • PWM backlight brightness adjustment for different environments
Technical Specifications
LCD Type IPS TFT LCD Size 4.3inch
LCD Resolution 800×480 LCD Interface type RGB
Module Interface Type MIPI DSI Touch screen type Capacitive touch screen
Viewing Angle IPS: Whole perspective Working Voltage 3.3V
Maximum Operating Current 220mA Operating Temperature -20℃ to 70℃
Active Area 95.04×53.86 (mm) Package Size 134×98×52(mm)
Module Weight (net weight) 97g Package Weight 140g
Hardware Description
4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Figure 1: Hardware components diagram
Key Components:
  • Backlight brightness adjustment button
  • MIPI DSI interface for connecting Raspberry Pi via FPC flexible cable
  • Backlight control mode selection:
    • Right solder: Fixed maximum brightness
    • Left solder: PWM brightness adjustment (default: fixed maximum brightness)
  • External PWM access point for controlling backlight brightness via GPIO
Module Dimensions
4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Figure 2: Module dimensions diagram
Installation Guide
  1. Download the latest Raspberry Pi OS image from the official website
  2. Prepare a Micro SD card (minimum 8GB) and format it
  3. Burn the OS image to the SD card using Win32DiskImager
  4. Insert the SD card into Raspberry Pi
  5. Mount the Raspberry Pi to the display module using provided hardware
  6. Connect the display module to Raspberry Pi's display interface via FPC cable
  7. Connect power and boot the system
Note: The package includes all necessary mounting hardware (copper columns, screws, and FPC cables). Raspberry Pi 4 uses Type-C power while Pi 3 uses Micro USB.
4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Figure 3 & 4: Installation and connection diagrams
PWM Backlight Control

To control backlight brightness via PWM:

  1. Configure hardware for PWM mode (solder resistor to left position)
  2. Connect PWM access point to GPIO18 and GND to Raspberry Pi GND pin
  3. Use the following commands to adjust brightness (0-1024 range):
gpio -g pwm 18 1024
gpio -g mode 18 pwm
gpio pwmc 1000
gpio -g pwm 18 X (X = brightness value 0-1024)
Note for Raspberry Pi 4: Update WiringPi GPIO library using:
cd /tmp
wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i -B wiringpi-latest.deb
Display Rotation Options
Method 1: FKMS Mode (Default for Raspberry Pi 4)

Rotate display through menu options (recommended to use mouse for operation).

4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Figure 6: FKMS rotation settings
Method 2: Traditional Graphics Mode

Add the following to /boot/config.txt:

display_lcd_rotate=x (x=0,1,2,3,0x10000,0x20000)

Where:

  • 0 = Normal (default)
  • 1 = 90° clockwise
  • 2 = 180° clockwise
  • 3 = 270° clockwise
  • 0x10000 = Flip horizontal
  • 0x20000 = Flip vertical
Touch Rotation Configuration

Modify /usr/share/X11/xorg.conf.d/40-libinput.conf with appropriate CalibrationMatrix values corresponding to display rotation.

4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Figure 10: Touch configuration file

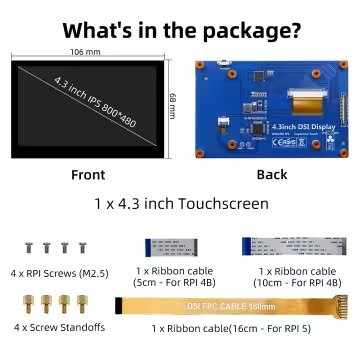

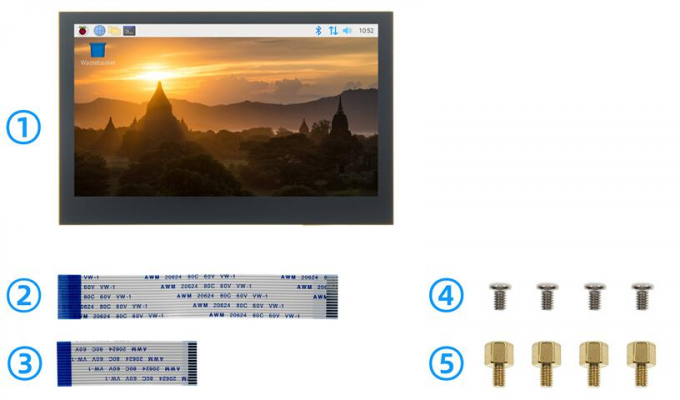

Package Contents
4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
  • 4.3inch DSI Display ×1
  • FFC-1.0-15P-10cm-(Reverse) ×1
  • FFC-1.0-15P-5cm-(Reverse) ×1
  • Screw (M2.5) ×4
  • Copper Pillar (M2.5) ×4
