2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
Specifications
Delivery Time :
30-45 days
Color Gamut :
72 % of NTSC(Typ.)
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
View Direction :
free/all
MOQ :
500
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Model Number :
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Price :
$4.8-5.4/pieces(MSP2807);$4.2-4.8/pieces(MSP2806)
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Packaging Details :
16*15*6(cm)/43g
Outline :
118.5×84.7×5.2 mm
Supply Ability :
5K/month
Brand Name :
XXT
Signal Interface :
LVDS
Place of Origin :
Guangdong, China
Drive System :
a-Si TFT active matrix
Payment Terms :
T/T
Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Document
Type:
SPI Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Highlight:

2.8 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

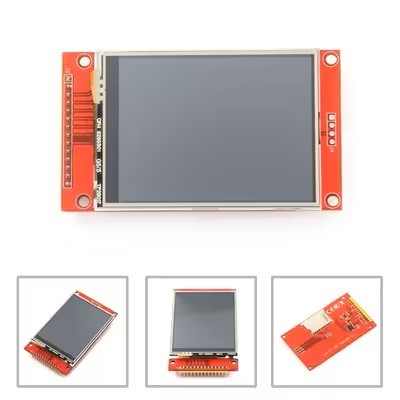

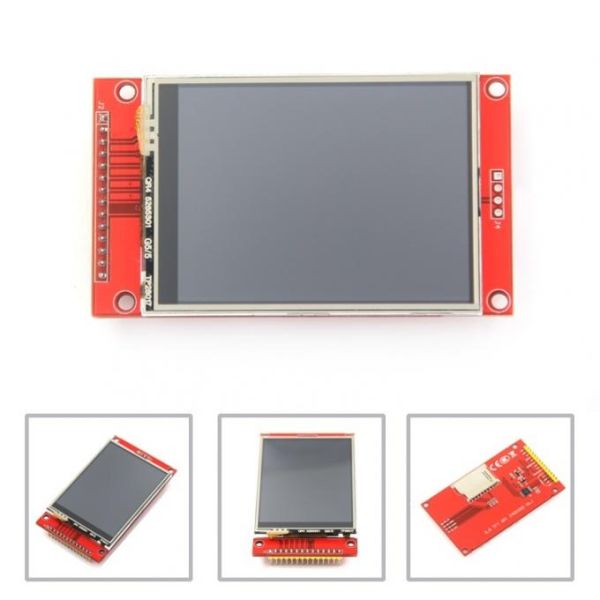

YBR028EGS-Q1 2.8-inch SPI Display LCD Module
High-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
Product Features
  • 2.8-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • SD card slot for easy experiment expansion
  • Comprehensive sample programs provided
  • Military-grade process standards for long-term stable operation
  • Complete underlying driver technical support
Technical Specifications
Size 2.8 inch
SKU MSP2806 (No Touch); MSP2807 (With Touch)
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 43.2×57.6 mm
Dimensions 50.0×86.0 mm
VCC Power Voltage 3.3V / 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver IC ILI9341
Power Consumption 0.31W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 34g / With touch: 43g
Interface Description
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

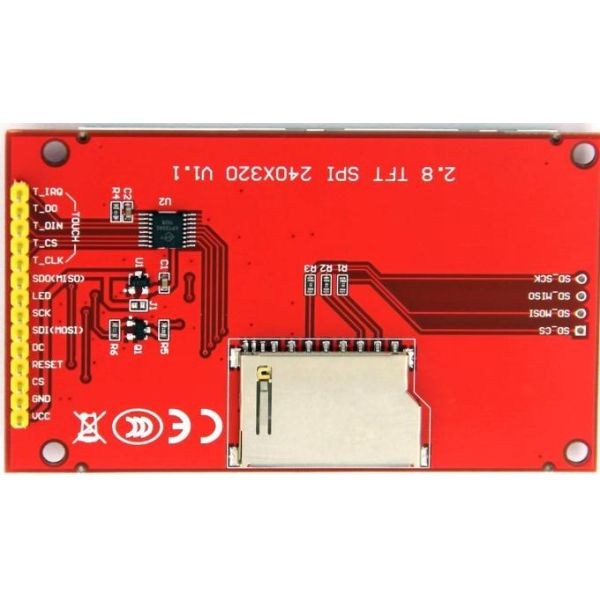

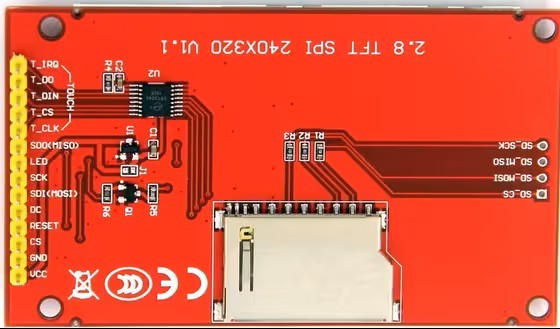

YBR028EGS-Q1 Interface Pinout
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

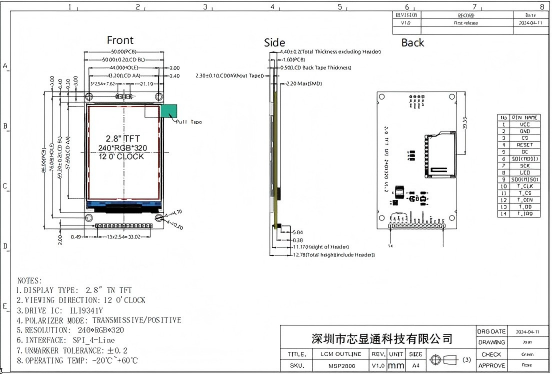

Product Dimensions
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
