2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
Specifications
MOQ :
500
Packaging Details :
16*15*6(cm)/23g
Outline :
118.5×84.7×5.2 mm
Brand Name :
XXT
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Delivery Time :
30-45 days
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Place of Origin :
Guangdong, China
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Price :
$4.5-5/pieces
Name :
HDMI LCD Display
Payment Terms :
T/T
Model Number :
YBN022DES-Q1(MSP2201)
Drive System :
a-Si TFT active matrix
Supply Ability :
5K/month
Color Gamut :
72 % of NTSC(Typ.)
Viewing Area :
116.2mm×87.1mm
Description
YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN022DES-Q1(MSP2201)
Type:
SPI Display
Display Size:
2.2 Inch
Supplier Type:
Factory
Highlight:

2.2 inch SPI Display

,

176*220 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

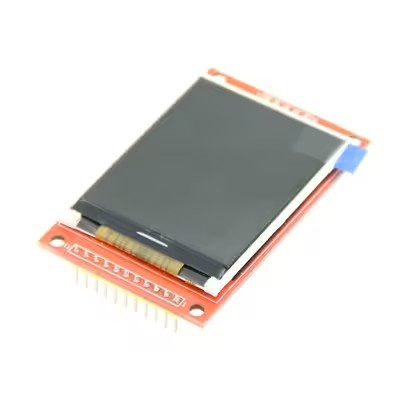

YBN022DES-Q1 2.2-inch SPI Display with 176×220 Resolution LCD Module Compatible with UNO Mega2560
High-performance 2.2-inch SPI display module with 176×220 resolution, designed for compatibility with Arduino UNO and Mega2560 platforms.
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
Product Features
  • 2.2-inch color screen supporting 16BIT RGB 65K color display for rich color reproduction
  • 176×220 high resolution for clear, sharp display quality
  • SPI serial bus interface requiring minimal I/O pins to operate
  • Integrated SD card slot for convenient function expansion
  • Comprehensive underlying libraries and sample programs for Arduino, C51, and STM32 platforms
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support provided
Technical Specifications
Parameter Specification
Size 2.2 inch
SKU MSP2201
Resolution 176×220 dots
Module Interface 4-wire SPI interface
Display Color 16BIT RGB 65K color
Active Area 34.85×43.56 (mm)
Dimensions 42.46×67.20 (mm)
Operating Voltage 3.3V / 5V
Power Consumption 0.42W
Weight 23g

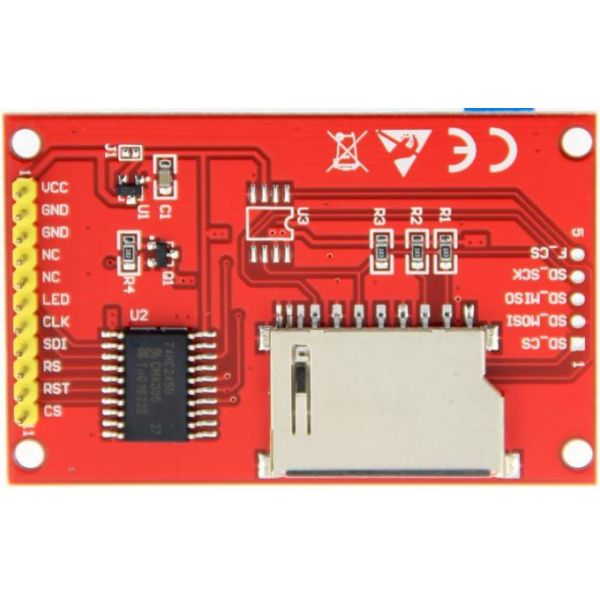

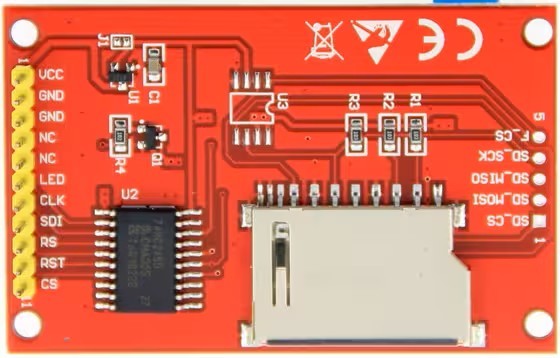

Interface Description
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560

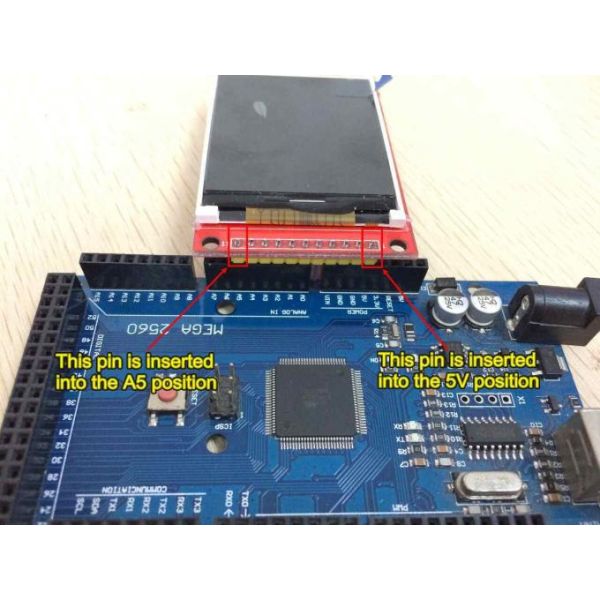

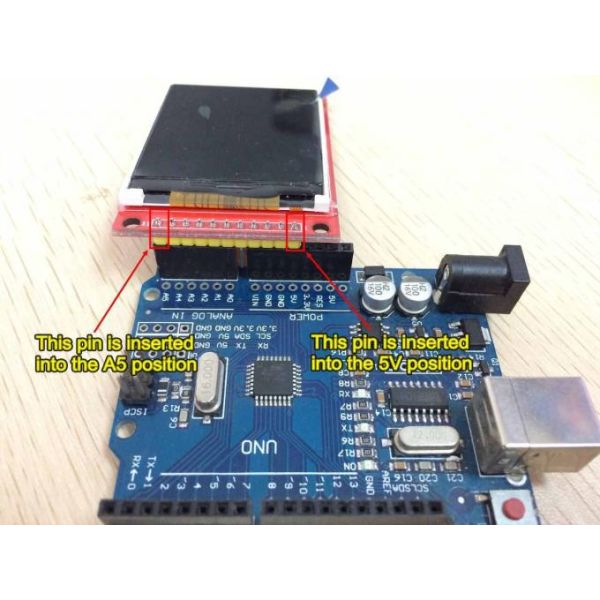

Connection to Arduino
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
2.2 Inch HDMI LCD Display 176*220 SPI LCD Screen For Arduino UNO Mega2560
