Specifications
Outline :
118.5×84.7×5.2 mm
MOQ :
500
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Brand Name :
XXT
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Packaging Details :
16*15*6(cm)/71g
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Supply Ability :
50K/Month
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Model Number :
YBR040JGS-Q1(MSP4021)/YBN040JGS-Q1(MSP4020)
Place of Origin :
Guangdong, China
Color Gamut :
72 % of NTSC(Typ.)
Delivery Time :
30-45days
Drive System :
a-Si TFT active matrix
Payment Terms :
T/T
Viewing Area :
116.2mm×87.1mm
Price :
$9-11.49/pieces
Name :
SPI LCD Display
Description
YBR040JGS-Q1 4-inch SPI Display LCD Module with 480x320 Resolution and Resistive Touch for Embedded Applications
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBR040JGS-Q1(MSP4021)/YBN040JGS-Q1(MSP4020)
Type:
SPI Display
Display Size:
4 Inch
Supplier Type:
Factory
Highlight:

4-inch SPI LCD display module

,

480x320 resistive touch display

,

embedded SPI display with touch

Product Description
YBR040JGS-Q1 4-inch SPI Display LCD Module with 480*320 Resolution and Resistive Touch for Embedded Applications ST7796

The YBR040JGS-Q1 LCD module utilizes a 4-wire SPI communication interface with ST7796S driver IC, featuring a resolution of 480*320 and optional touch functionality. This comprehensive module integrates the LCD display, backlight control circuitry, and touch screen control circuitry for embedded applications.

Key Features
  • 4.0-inch color screen supporting 65K color display for rich color reproduction
  • 480*320 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O pins for display operation
  • Easy expansion capabilities with integrated SD card slot
  • Comprehensive sample programs provided for rapid development
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support

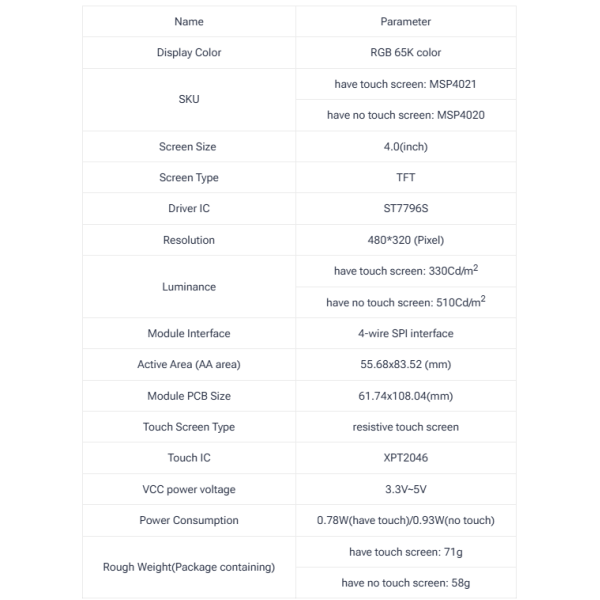

Product Parameters
4 Inch SPI LCD Display 480x320 Resistive LCD Touch Screen for Embedded Applications
Technical specifications and performance parameters

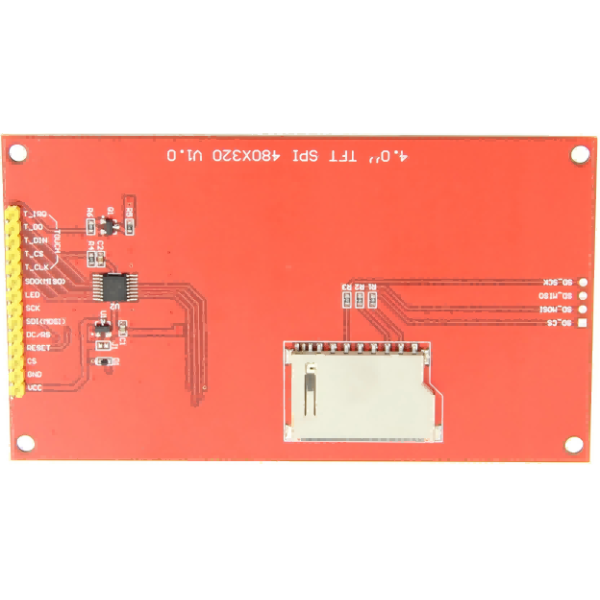

Interface Definition
4 Inch SPI LCD Display 480x320 Resistive LCD Touch Screen for Embedded Applications
Interface pin configuration and connection details
4 Inch SPI LCD Display 480x320 Resistive LCD Touch Screen for Embedded Applications
