2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
Specifications
Place of Origin :
Guangdong, China
Outline :
118.5×84.7×5.2 mm
Viewing Area :
116.2mm×87.1mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
MOQ :
500
Price :
$4.6-5.2/pieces(MSP2401);$5.4-6.2/pieces(MSP2402)
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Brand Name :
XXT
Model Number :
YBN024GES-Q1(MSP2401)/YBR024GES-Q1(MSP2402)
Payment Terms :
T/T
Operating_Temperature :
-20°C to 70°C
Delivery Time :
30-45 days
Packaging Details :
16*15*6(cm)/36g
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
5K/month
Drive System :
a-Si TFT active matrix
Name :
HDMI LCD Display
Description
YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN024GES-Q1(MSP2401)/YBR024GES-Q1(MSP2402)
Type:
SPI Display
Display Size:
2.4 Inch
Supplier Type:
Factory
Highlight:

2.4-inch SPI Display

,

320*240 Resolution LCD Module

,

SPI Interface TFT Display

Product Description
YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320×240 Resolution and SPI Interface
High-performance 2.4-inch SPI display LCD module featuring 320×240 resolution and SPI interface for embedded applications.
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
Product Features
  • 2.4-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • Easy expansion capabilities with integrated SD card slot
  • Comprehensive sample programs and code libraries
  • Military-grade manufacturing standards for long-term reliability
  • Complete underlying driver technical support
Technical Specifications
Parameter Specification
Size 2.4 inch
SKU MSP2401 (No Touch); MSP2402 (With Touch)
Resolution 320×240 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 36.72×48.96 mm
Dimensions 77.18×42.72 mm
VCC Power Voltage 3.3V / 5V
Power Consumption 0.57W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 26g / With touch: 36g

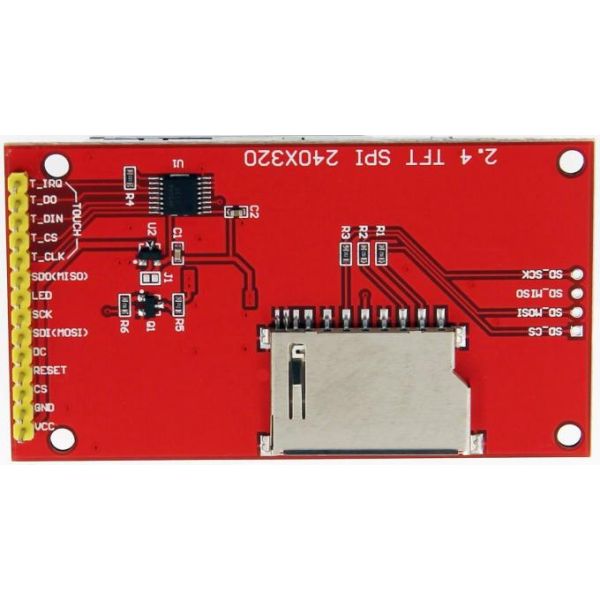

Interface Description
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
YBN022EGS-Q1 Interface Pinout

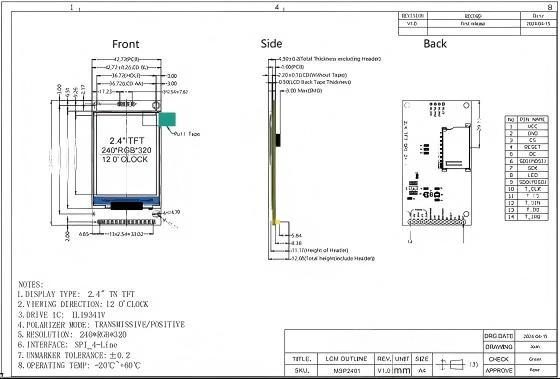

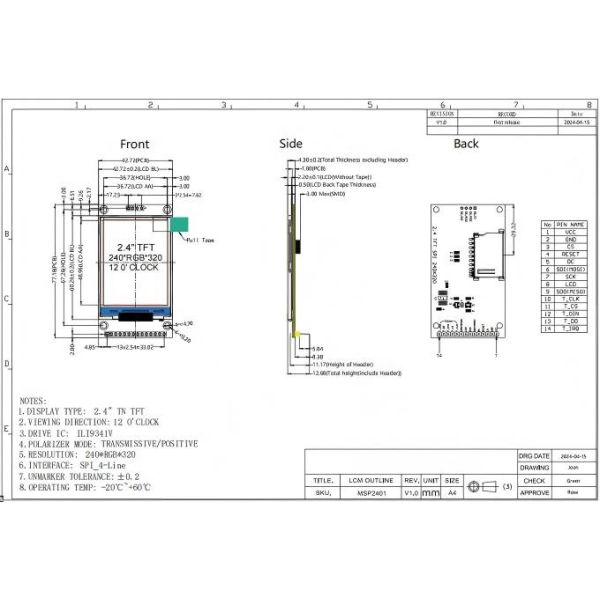

Product Dimensions
2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface
