Specifications
Delivery Time :
30-45 days
Outline :
118.5×84.7×5.2 mm
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Price :
$4.5-5/pieces
Packaging Details :
16*15*6(cm)/23g
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
MOQ :
500
Name :
SPI LCD Module
Color Gamut :
72 % of NTSC(Typ.)
Model Number :
YBN022EGS-Q1(MSP2202)
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Supply Ability :
5K/month
Drive System :
a-Si TFT active matrix
Brand Name :
XXT
Description
YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN022EGS-Q1(MSP2202)
Type:
SPI Display
Display Size:
2.2 Inch
Supplier Type:
Factory
Highlight:

2.2 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

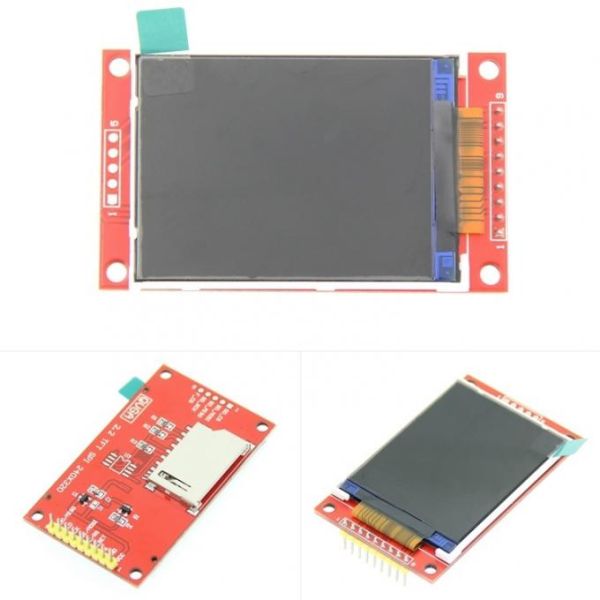

YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240×320 Resolution and SPI Interface
High-performance 2.2-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.
2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1
Product Features
  • 2.2-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 high resolution for clear, sharp display quality
  • SPI serial bus interface requiring minimal I/O connections
  • Integrated SD card slot for easy expansion and experimentation
  • Comprehensive sample programs provided for quick development
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support included
Technical Specifications
Parameter Specification
Size 2.2 inch
SKU MSP2202
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 33.84×45.12 (mm)
Dimensions 40.10×67.20 (mm)
VCC Power Voltage 3.3V / 5V
Power Consumption 0.42W
Logic IO Port Voltage 3.3V (TTL)
Weight 25g

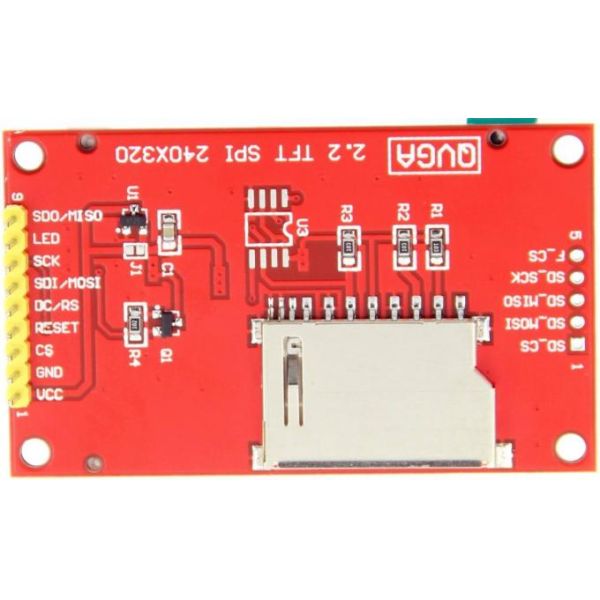

Interface Description
2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1 2.2 Inch SPI LCD Module 240*320 HDMI Display Module YBN022EGS-Q1
