YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
Specifications
Delivery Time :
30-45 days
MOQ :
500
Color Gamut :
72 % of NTSC(Typ.)
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Model Number :
YBC050PKH-Q1(MPI5005)
Supply Ability :
5K/month
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
Place of Origin :
Guangdong, China
Signal Interface :
LVDS
Price :
$8.2-9.3/pieces
Payment Terms :
T/T
Packaging Details :
16*15*6(cm)/259g
View Direction :
free/all
Brand Name :
XXT
Drive System :
a-Si TFT active matrix
Outline :
118.5×84.7×5.2 mm
Description
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBC050PKH-Q1(MPI5005)
Document
Type:
SPI Display
Display Size:
3.5 Inch
Supplier Type:
Factory
Highlight:

3.5 inch SPI Display

,

480*320 resolution LCD Module

,

Resistive touch TFT LCD Display

Product Description
YBR035JGS-Q1 3.5-inch SPI Module with 480*320 Resolution and Resistive Touch
This LCD module utilizes a 4-wire SPI communication interface with ILI9488 driver IC, delivering 320*480 resolution with optional touch functionality. The complete module integrates LCD display, backlight control circuitry, and touch screen control circuitry.
Product Features
  • 3.5-inch color screen supporting 16-bit 65K color display for rich color reproduction
  • 480*320 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O pins for display operation
  • SD card slot for easy experiment expansion and data storage
  • Comprehensive sample programs provided for rapid development
  • defense-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support available
Technical Specifications
Parameter Specification
Size 3.5 inch
SKU MSP3520 (With Touch) / MSP3521 (Without Touch)
Resolution 480*320 dots
Touch Resistive touch
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 48.96*73.44 mm
Dimensions 56.34*98 mm
Operating Voltage 3.3V / 5V
Power Consumption 0.62W
Weight No touch: 45g / With touch: 57g

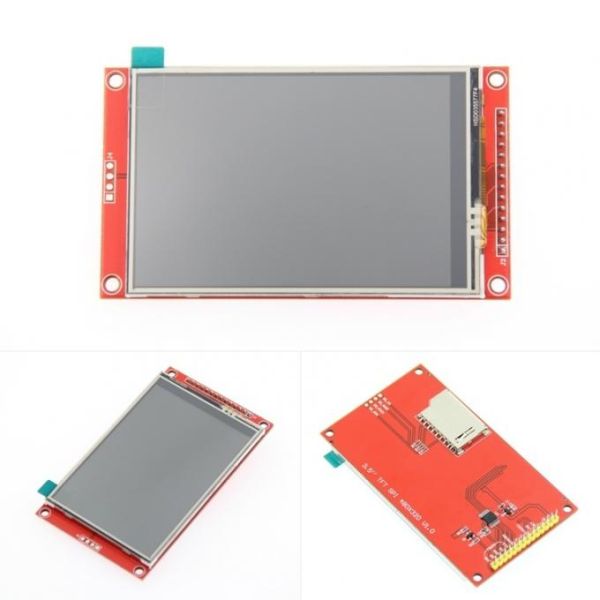

Product Appearance
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module

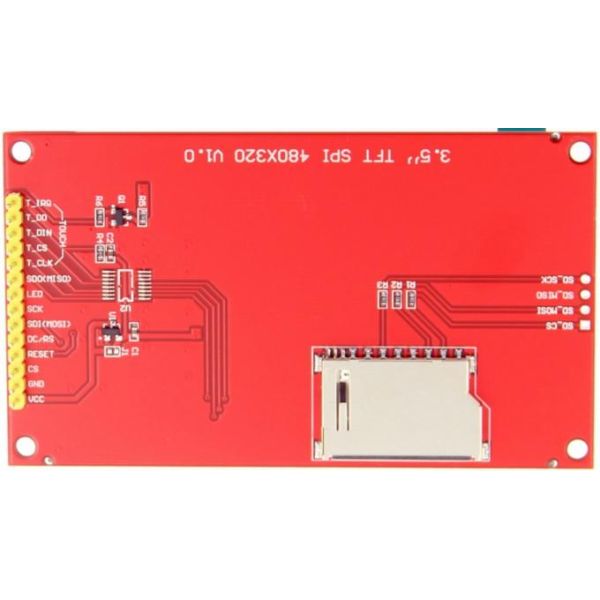

Interface Description
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
