Product name: CNC CE Certified Automatic Resistance Circular Seam Welder For Galvanized Shock Absorber

Cnc Special Semiautomatic Galvanized Semi-Automatic Automatic Circular Seam Resistance Welding Machine for Shock Absorber

This horizontal automatic seam welding machine is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.

• Driving method: Horizontal seam welding machines are usually driven by servo motors, which have the characteristics of small torque fluctuations and stable speed. The rotation of the workpiece is driven by the motor to rotate the electrode, which is driven by the frictional force between the electrode and the workpiece. The motion is smooth and the speed is adjustable.
• Control system: Industrial PLC is used to control the operation of the whole machine. The process can be compiled and set, with a short operating cycle, fast response speed, accuracy, stability, and reliability. Through touch screen for human-machine interaction, it is convenient to set various welding process parameters; Set and modify device parameters and perform various manual and automatic actions; View real-time welding parameters and quantities, which can be uploaded through the MAS system or downloaded from a USB drive.
• Low maintenance cost: The system has a comprehensive overall fault diagnosis function, reducing maintenance costs. The supporting components of the control system are strictly controlled, with stable performance and good reliability.

Customized Fixtures and Moving Components

Adopting a cyclic transplanting mechanism can achieve fully automatic welding and improve welding efficiency.The device has high compatibility and can weld workpieces of different diameters and lengths.

Cylinder

Adopting aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring combination with hydraulic cylinder, the surface is wear-resistant and has a long service life, achieving extremely high dot speed, electrode pressurization, smooth and fast.

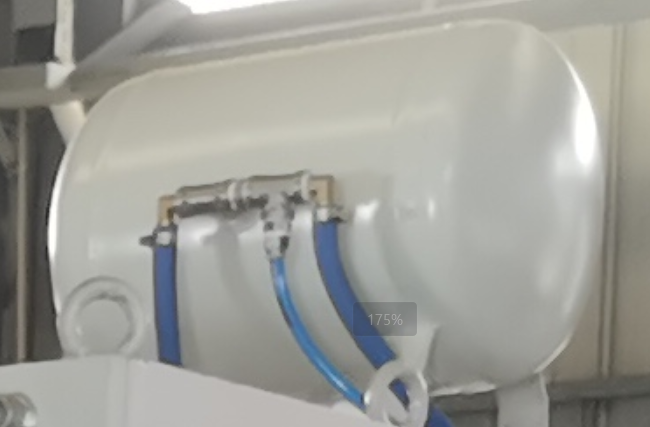

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Waterway Components

All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
