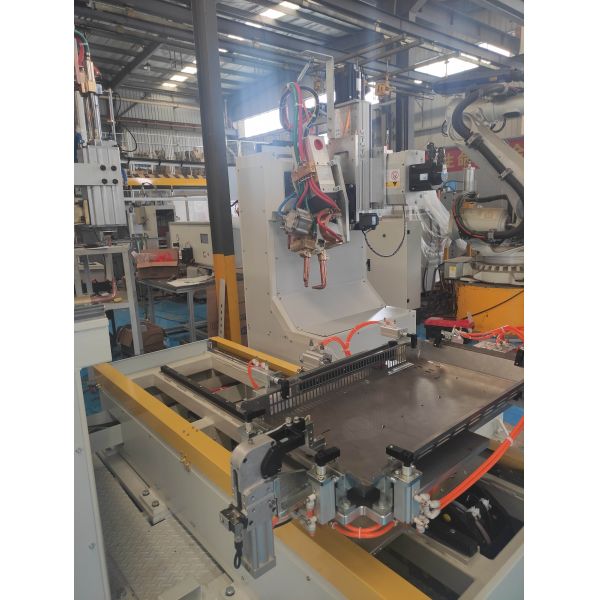

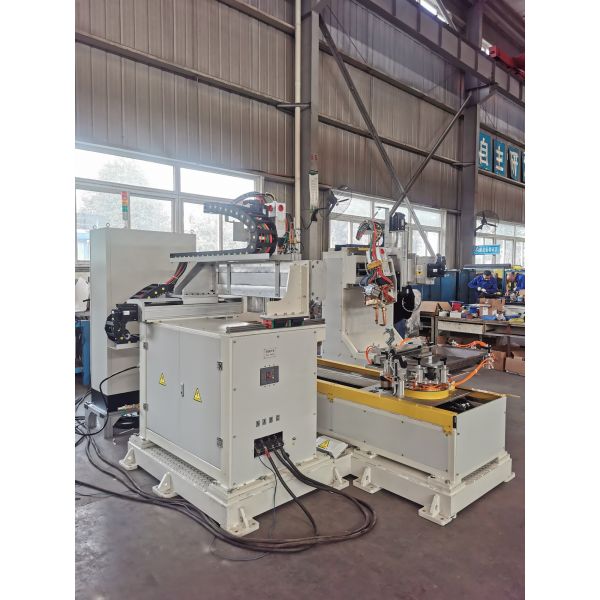

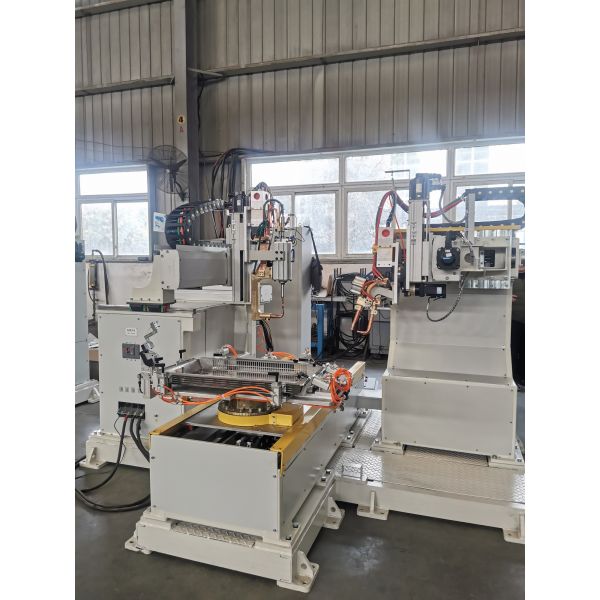

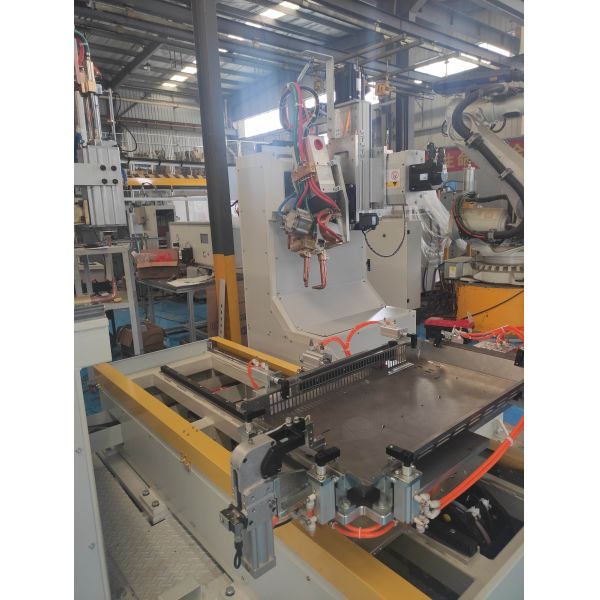

This Industrial Semi-Automatic Spot Welding Station is a modular system engineered for the precise and efficient welding of metal sheets such as stainless steel and carbon steel. Its core is not a single welding gun, but an integrated solution comprising programmable X-type and C-type automatic welding gun modules, high-precision servo-driven motion mechanisms, and quick-change positioning fixtures. It forms a complete “Semi-Automatic" welding cell. Operating in a “manual load, automatic weld" mode, the operator simply places the workpiece and initiates the cycle. The system then automatically executes the complete sequence of gun positioning, clamping, and welding, achieving high-repeatability, superior-quality automated welding on complex parts like heater housings, significantly boosting the efficiency and consistency of batch production

• Modular Welding Guns & Intelligent Control: The system offers optional X-type and C-type automatic welding gun modules, driven by servo motors and linear modules for clean, multi-axis precision positioning. The X-type gun integrates a rotary platform for stepless welding angle adjustment, while the C-type gun offers high rigidity, together providing exceptional process flexibility. An integrated main cabinet, touchscreen, and three-color audible/visual alarm ensure intuitive and safe control.

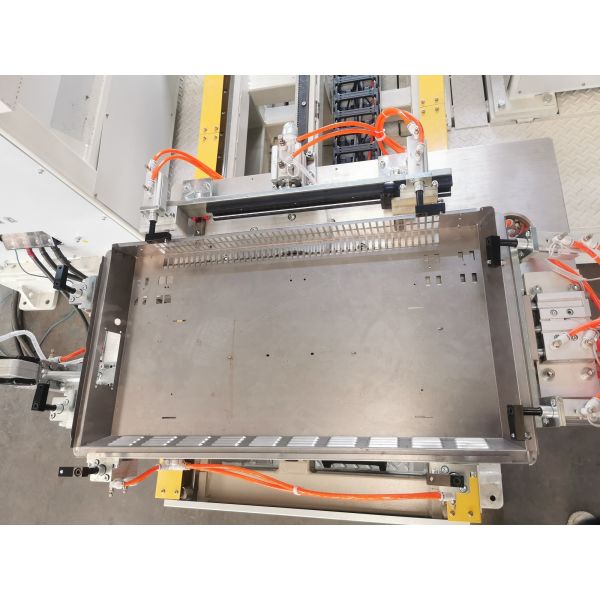

• Flexible Fixture for Quick Changeover: The fixture system consists of adjustable positioning blocks, clamping cylinders, etc. Through simple adjustment of the blocks, it can meet the precise positioning and clamping needs of three different workpiece specifications, drastically reducing product changeover time and enhancing production line flexibility.

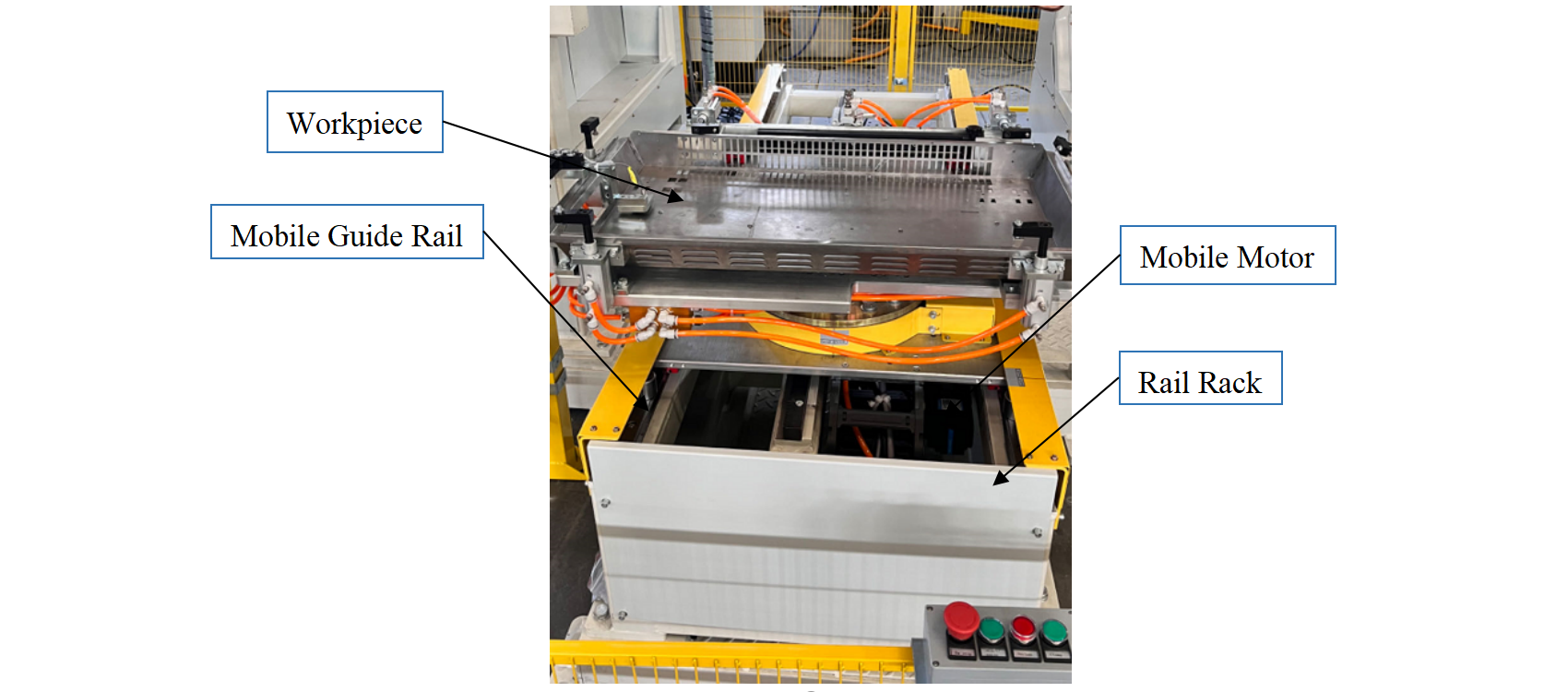

• Servo-Driven Multi-Axis Motion System: The welding guns and workpiece are controlled by independent servo-driven motion mechanisms. The guns achieve X/Y/Z and rotary movement, while the workpiece is mounted on a servo-driven rotary support table. Their coordinated movement ensures the gun optimally accesses every weld point in the 3D space of the workpiece, achieving full coverage and high-efficiency welding.

• Semi-Automatic High-Efficiency Operation: This semi-automatic station perfectly balances manual handling with machine precision. The operator is responsible for loading/unloading and initiating the cycle, while the high-repeatability processes of positioning, clamping, and welding are performed automatically by the machine. This reduces labor intensity and skill requirements while guaranteeing exceptionally stable weld quality and high production efficiency
