Specifications
Brand Name :
XinWeiHan
Place of Origin :
Sichuan, China
Certification :
ISO,CE
MOQ :
1 set
Price :
$70,000-90,000 / set
Payment Terms :
D/A,L/C,D/P,Western Union,T/T
Supply Ability :
100 sets per month
Delivery Time :
25-45 working days
Product Name :
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
power (kw) :
1000W
rated capacity :
100/160/200/250KVA
voltage :
220V/380V
condition :
New
dimensions :
Customized
rated duty cycle :
50%
warranty :
1 Year
MOQ :
1 Set
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description

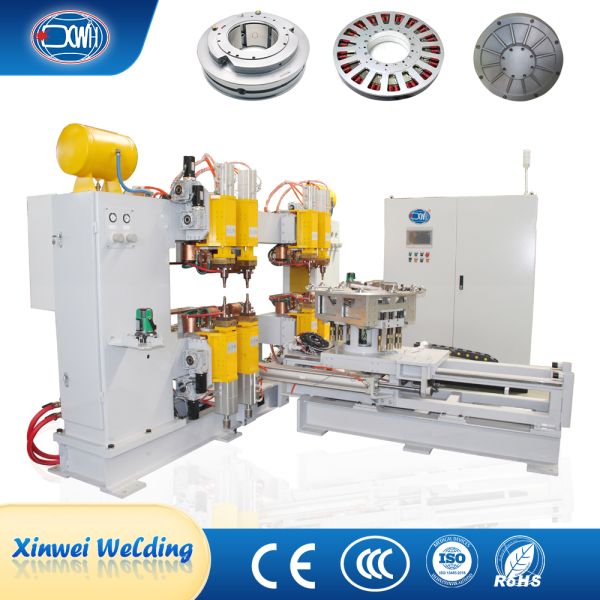

Product Name: 3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
Product Description
This 3-Phase Pneumatic CNC Multi-Spot Automatic Welder is an industrial-grade solution engineered for the high-efficiency, high-consistency multi-point array welding of special components such as motors and generator sets. At its core, it integrates a three-phase power supply with a precise pneumatic pressurization system and a programmable CNC control unit, achieving fully automated operation and digital management of the welding process. Optimized for precision joining of metals like stainless steel and aluminum, it utilizes multiple coordinated welding guns and servo indexing to accurately complete tens to hundreds of weld points on a workpiece in sequence, significantly boosting the production pace and quality stability of complex structures. With its superior automation, stable welding output, and flexible programming, this CNC multi-spot welder is the ideal choice for the batch production of stainless steel and aluminum components, such as new energy vehicle motor casings and industrial motor housings
Technical Parameters
Item/Model DN(B)-100 DN(B)-160 DN(B)-200 DN(B)-250
Rated power At 50%(KVA) 40 63 80 100
Rated primary power(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. Short Circuit Current (KA) 30 35 40 45
Duty cycle(%) 50 50 50 50
Max. Force(N) 6000 6000 10000 15000
Electrode Length( mm) 450 450 450 500
Working Stroke( mm) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max. Welding Capacity(mm) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0
Main Features

  • Intelligent CNC Programming & Servo Control: Employs a programmable CNC control system and servo indexing mechanism for extremely high path and point positioning accuracy. Equipped with a touch screen for rapid recall and switching of welding programs, meeting the demands of high-mix, flexible production.

  • Efficient Multi-Gun Coordinated Welding System: Integrates multiple independent welding systems capable of synchronous or sequential welding on different areas of a workpiece (e.g., straight sections, inner/outer arcs). A typical configuration can automate the welding of 6 points on a straight section, 96 points on an inner circle, and 144 points on an outer arc, multiplying efficiency.

  • Precise Pneumatics & Fast Response: Upper and lower electrodes are pressurized by air cylinders for convenient and precise force adjustment. The use of direct-acting solenoid valves significantly increases the pressure head's response speed and cycling rate, reduces air consumption, and ensures stable rhythm during high-speed welding.

  • High-Reliability Electrical & Cooling Design: The main circuit utilizes a water-cooled high-power IGBT module for robust and stable output. The secondary conductor employs an upper insulation method for safety and reliability. All waterway components are made of copper/stainless steel and include a visual flow indicator, meeting the cooling requirements and ensuring system reliability for prolonged continuous operation

General Structures
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto

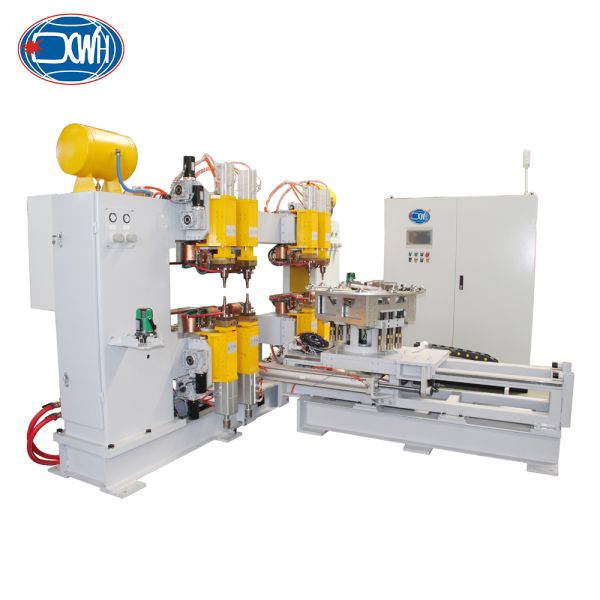

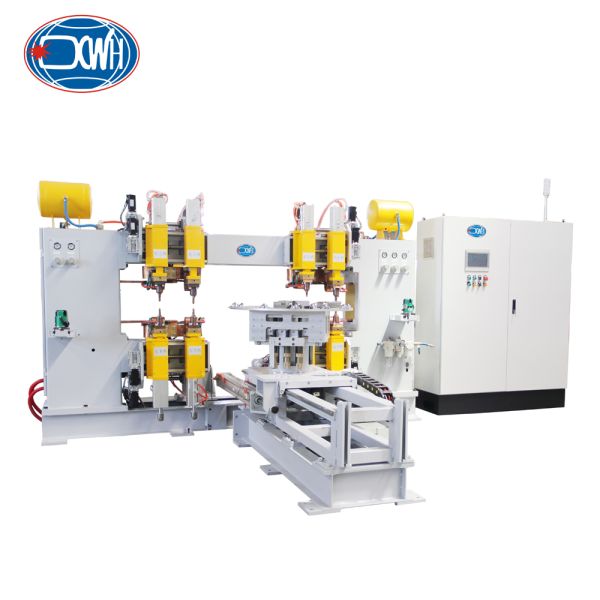

Different Angles of Product
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
3 Phase Pneumatic CNC Multi Spot Welder Stainless Steel Aluminium Auto
