Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Specifications
Supply Ability :
2 sets per month
MOQ :
1 set
Product Name :
Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding
Payment Terms :
D/A,D/P,T/T,Western Union,L/C
Delivery Time :
25-45 working days
voltage :
220V/380V
Video outgoing-inspection :
Provided
rated duty cycle :
50%
Price :
$45,000-55,000 / set
dimensions :
4300*3200*2000mm
Brand Name :
XinWeiHan
Certification :
ISO,CE
After Warranty Service :
Video technical support, Online support and Spare parts
Warranty of core components :
1 Year
Place of Origin :
Sichuan, China
max. welding thickness :
6mm+6mm
rated capacity :
100/160/200/250KVA
Machinery Test Report :
Provided
Packaging Details :
wooden box
Description

Automatic Dual-Gun Spot Welder for Heater Housing 3D Assembly Welding

Servo Multi-Axis Welding Cell with Switchable X-Type and C-Type Guns — Quick-Change Fixture for 3 Housing Variants, 100-250KVA, Stainless Steel and Carbon Steel

Gun Types
X-Type + C-Type
Capacity
Up to 6+6mm
Changeover
Quick-Change Fixture
Application
Heater Housings



Why Heater Housings Need Dual-Gun 3D Welding

Heater housings present a unique 3D welding challenge. Weld points are distributed across multiple faces and angles of the enclosure. A single gun type cannot reach all positions efficiently: some joints are best accessed with an X-type gun for deep reach, others with a C-type gun for tight spaces. Traditional single-gun stations require manual part reorientation between welds, adding cycle time and introducing positioning error.

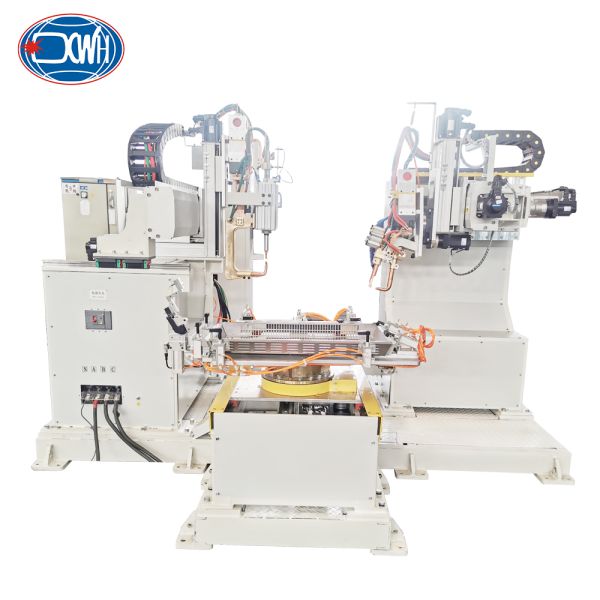

This Xinwei automatic spot welding cell solves the problem with flexible, switchable X-type and C-type welding gun modules mounted on servo-driven multi-axis motion mechanisms. The system autonomously selects the correct gun type and approach angle for each programmed weld point. The quick-change fixture, adjustable via positioning blocks, supports rapid changeover between three different heater housing variants. Operators load the part, press start, and the system executes the full 3D weld sequence automatically.

Technical Specifications

Parameter Spec
Rated Capacity 100 / 160 / 200 / 250 KVA
Input Voltage 220V / 380V
Max Welding Thickness 6+6mm
Gun Types Switchable X-type and C-type
Motion Servo multi-axis positioning
Fixture Quick-change, adjustable for 3 variants
Welding Materials Stainless Steel, Carbon Steel
Dimensions 4300 x 3200 x 2000mm
Warranty 1 Year (core components)
Certifications ISO, CE
Need a Custom Heater Housing Welding Solution?
Send us your housing drawings for a free dual-gun welding feasibility study and sample test.
info@xwweld.com | +86-13378111895
