Specifications
Brand Name :
Xinweihan
Place of Origin :
Sichuan, China
Certification :
CE, CCC, ISO
MOQ :
10 sets
Price :
$85-100 / set
Conductor Material :
Copper
Insulation Material :
Rubber
Size :
Can Be Customized
Application :
Industrial
Jacket :
Rubber
Type :
Low Voltage
Product name :
Aid Cables
Conductor :
Copper Core
Model :
Customized
Usage :
Suspension Welding
Color :
Black
Package :
Wooden
Cable Type :
Water Cooled Cables
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
Industrial Copper Core Rubber Insulated Water Cooled Secondary Cable Aid Cable
Industrial Copper Core Rubber Insulated Water Cooled Secondary Cable Aid Cable
Industrial Copper Core Rubber Insulated Water Cooled Secondary Cable Aid Cable
Industrial Copper Core Rubber Insulated Water Cooled Secondary Cable Aid Cable

Product Description

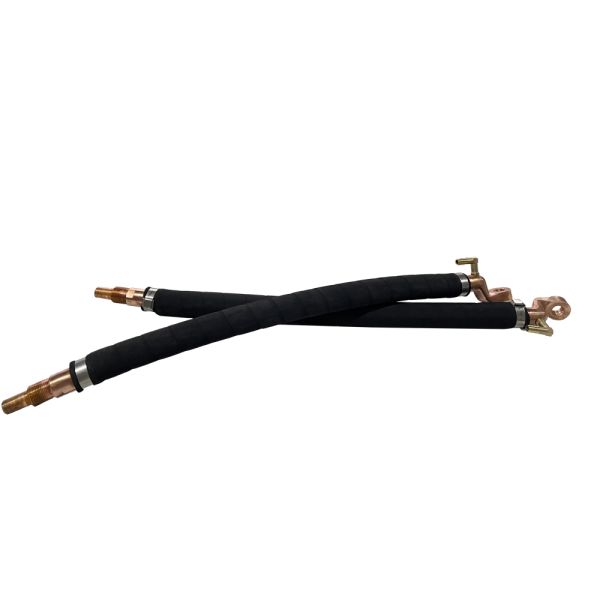

Secondary Cable belongs to a type of insulated conductor or cable distinguished by shape. It is a type of water cable with small cross-section, high working current, and good cooling effect. It is suitable for use on electrical equipment working under low voltage and high current, and can be easily bent and moved. The main technical feature is that the cable uses soft copper wire as the conductor, and the outer layer is covered with rubber water pipe. There is a water passage space between the cable and the rubber water pipe, The copper joints at both ends of the cable are welded together with the cable, and the steel jacket is connected to the copper joint. The copper joint is equipped with internal water holes to connect with the water space of the water cable.
Technical Parameters
Item specifiction
300mm²
400mm²
Impedance
2.0M
480±15μΩ
358±15μΩ
2.4M
593±15μΩ
445±15μΩ
Dc impedance value
2.0M
475μΩ
355μΩ
2.4M
587μΩ
440μΩ
Resistance
2.0M
78μΩ
74μΩ
2.4M
82μΩ
88μΩ
Power
=0.99
=0.99
Cooling water capacity
7.0L/Min
7.0L/Min
Temperature rise characteristic
2.0M
45℃/5900A
45℃/6800A
2.4M
45℃/5400A
45℃/6200A
Weight
2.0M
10.4kg
13.2kg
2.4M
12.2kg
15.3kg

Main Features

1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun
2.Great flexibility during the work
3.Smallest water pressure drop and good cooling effect
4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance
5. lowest magnetic induction impact.
6. Easy to be replaced
7. Long life span and economic

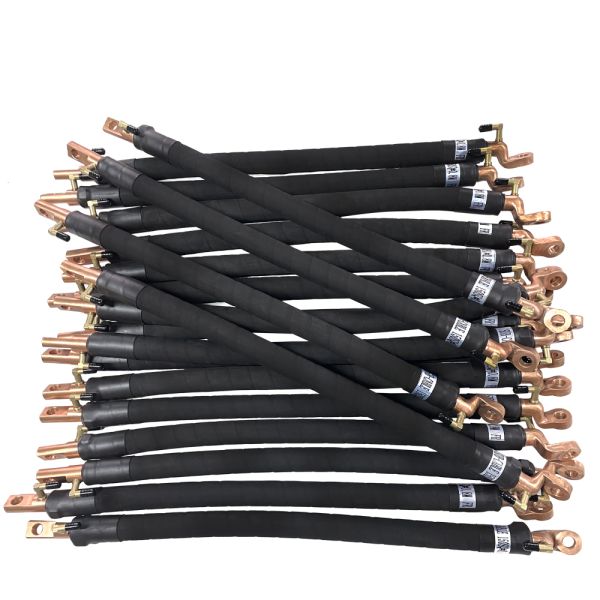

Detail Images
