Specifications
Model Number :
Normal
Brand Name :
Xinweihan
Place of Origin :
Sichuan, China
Certification :
CE, CCC, ISO
MOQ :
10 sets
Price :
$85-330 / set
Conductor Material :
Copper
Insulation Material :
Rubber
Size :
Can Be Customized
Application :
Suspension Welding
Jacket :
Rubber
Type :
High Voltage, Cable Plug Wire
Product name :
Aid Cables
Usage :
Welding
Color :
Black
Model :
Customized
Package :
Customers' Requirement
Cable Type :
Depend
Material :
Copper
Voltage :
Depend
Description

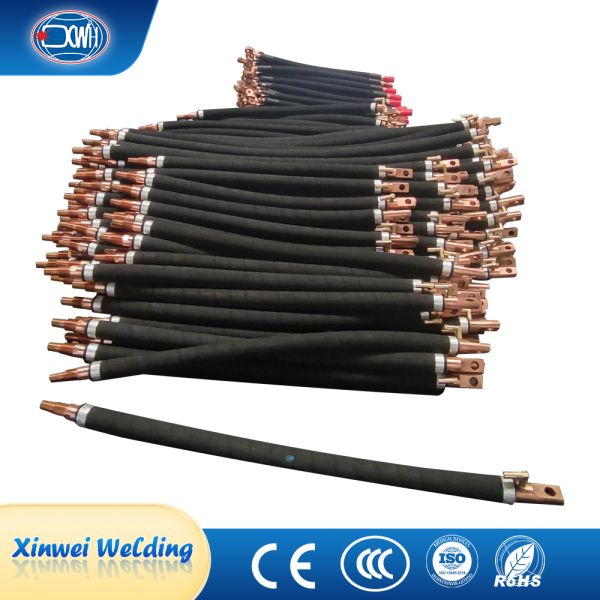

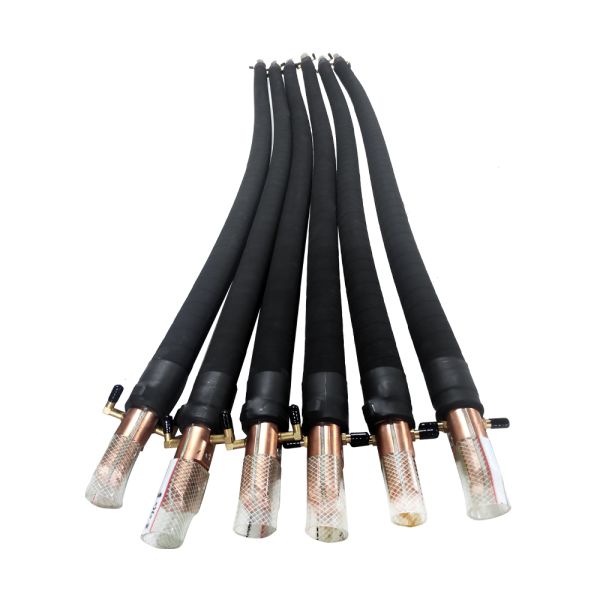

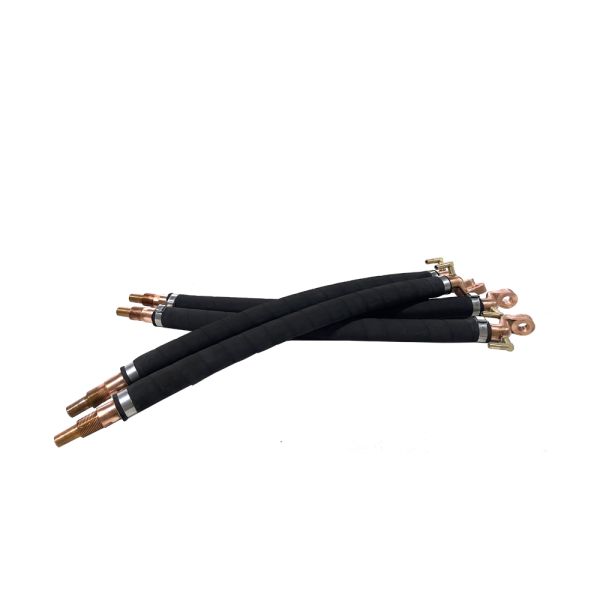

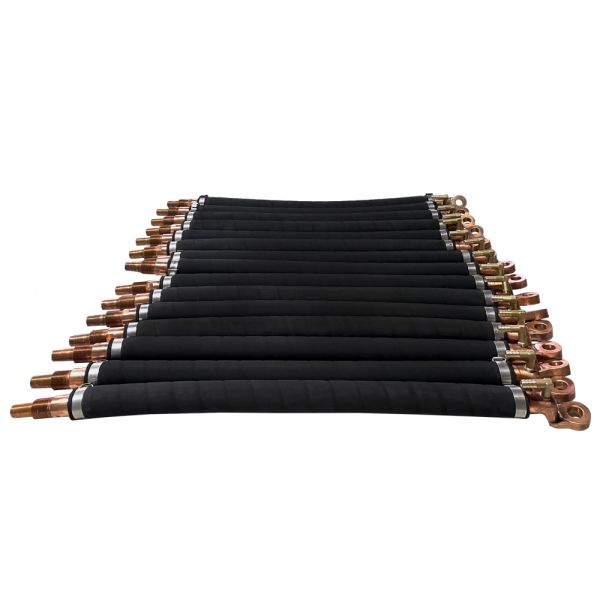

Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Kickless Cale
Good Quality Water Cooled Secondary Cable For Induction Furnace
Secondary Cable
Good Quality Water Cooled Secondary Cable For Induction Furnace

Product Description

Kickless Cable/ Secondary Cable belongs to a type of insulated conductor or cable distinguished by shape. It is a type of water cable with small cross-section, high working current, and good cooling effect. It is suitable for use on electrical equipment working under low voltage and high current, and can be easily bent and moved. The main technical feature is that the cable uses soft copper wire as the conductor, and the outer layer is covered with rubber water pipe. There is a water passage space between the cable and the rubber water pipe, The copper joints at both ends of the cable are welded together with the cable, and the steel jacket is connected to the copper joint. The copper joint is equipped with internal water holes to connect with the water space of the water cable.
Technical Parameters
Item specifiction
300mm²
400mm²
Impedance
2.0M
480±15μΩ
358±15μΩ
2.4M
593±15μΩ
445±15μΩ
Dc impedance value
2.0M
475μΩ
355μΩ
2.4M
587μΩ
440μΩ
Resistance
2.0M
78μΩ
74μΩ
2.4M
82μΩ
88μΩ
Power
=0.99
=0.99
Cooling water capacity
7.0L/Min
7.0L/Min
Temperature rise characteristic
2.0M
45℃/5900A
45℃/6800A
2.4M
45℃/5400A
45℃/6200A
Weight
2.0M
10.4kg
13.2kg
2.4M
12.2kg
15.3kg

Main Features

1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun
2.Great flexibility during the work
3.Smallest water pressure drop and good cooling effect
4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance
5. lowest magnetic induction impact.
6. Easy to be replaced
7. Long life span and economic
Detail Images
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Scene images
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
Good Quality Water Cooled Secondary Cable For Induction Furnace
