1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
Specifications
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
Certification :
CE, ISO
MOQ :
5 sets
Price :
$50-80 / set
warranty :
1 year
customized support :
OEM, ODM
Product name :
Secondary Cable Water Cooled
Application :
Industrial Welding
Usage :
Welding Accessroies
Conductor Material :
Red Copper
Standard Diameter :
150mm²/200mm²
Standard Length :
0.6m-1.2m
Feature :
High Temperature Resistance/High insulation
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
Dedicated, so professional; Winning by quality, precision to thrive

Product Description

Secondary cable has a small bending radius, low disturbance resistance, and is installed at the tail of the welding clamp, increasing the operability of the welding clamp and reducing labor intensity. It is generally shorter in length and has low maintenance costs.
Technical Parameters
Item/Cross Section
150 mm²
200mm²
Length
0.6m-1.2m
Materials
Red Copper+Rubber
Customization
Yes

Main Features

1. Terminal performance: Made of high-purity copper material with a one-time forging process to improve its high conductivity. 2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved. 3. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life. 4. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color. 5. Pipe clamp: Made of stainless steel sleeve and pressed by hydraulic locking machine, it has a longer service life and is more beautiful than traditional stainless steel belt locking.
Standard Drawing
Cross Section 150mm²
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
Besides standard models, we can customized according to your requirements. More details, please contact!
Scene images
Raw Materials: Pure Red Copper
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
Careful Protection :Additional Rubber Sleeve
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder

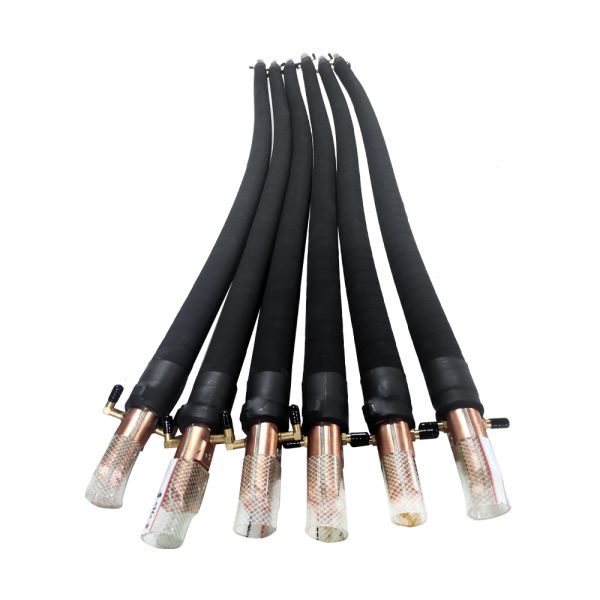

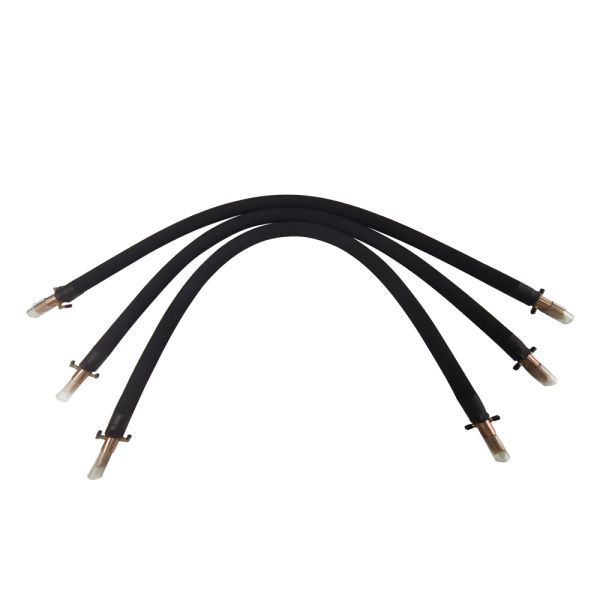

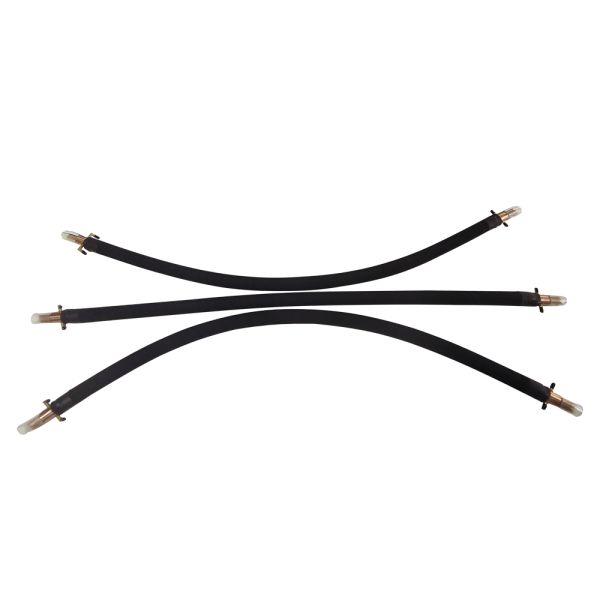

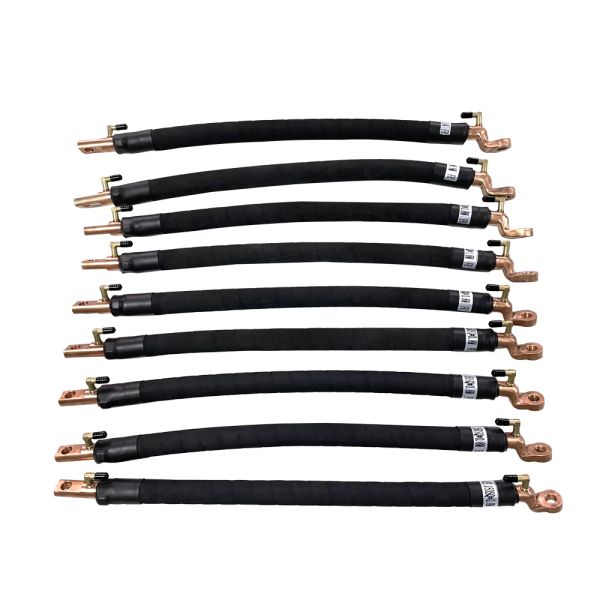

Finished Product
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
1M Secondary Water Cooled Cable Special Secondary Cable For Handheld Spot Welder
