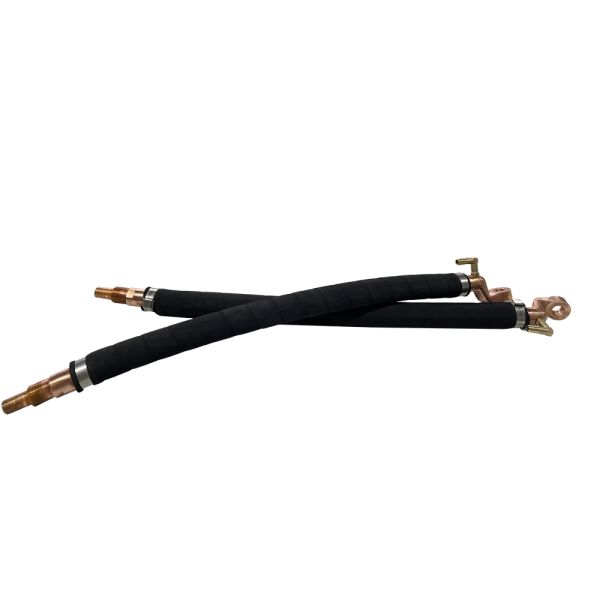

Copper Water Cooled Industrial Welding Cable With High Temperature Resistance CE ISO

Specifications

Brand Name :

Xingweihan

Place of Origin :

Sichuan, China

Certification :

CE, ISO

MOQ :

1 set

Price :

$80 / set

warranty :

1 year

customized support :

OEM, ODM

Product name :

Kickless Cable

Application :

Industrial Welding

Usage :

Welding Accessroies

Conductor Material :

Red Copper

Standard Diameter :

150mm²/200mm²/300mm²/400mm²

Standard Length :

0.6m-3.5m

Feature :

High Temperature Resistance/High insulation

After Warranty Service :

Video technical support, Online support and Spare parts

After-sales Service Provided :

Free spare parts, Field installation, commissioning and training

Description

Dedicated, so professional; Winning by quality, precision to thrive

Product Description

Kickless Cable, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Usually composed of electrodes (cable heads), wires, and external protective sleeves. Mainly used for hanging type spot welding machines or suspension spot welding machines.

Technical Parameters

Item/Cross Section	150 mm²	200mm²	300mm²	400mm²
Length	0.6m-1.2m			2m-3.5m
Materials	Red Copper+ Rubber
Customization	Yes

Main Features

1. Terminal performance: Made of high-purity copper material with a one-time forging process to improve its high conductivity. 2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved. 3. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life. 4. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color. 5. Pipe clamp: Made of stainless steel sleeve and pressed by hydraulic locking machine, it has a longer service life and is more beautiful than traditional stainless steel belt locking.

Some Standard Drawings

Cross Section 150mm²

Cross Section 300mm²

Besides standard models, we can customized according to your requirements. More details, please contact!

Scene images

Raw Materials: Pure Red Copper

Careful Protection :Additional Rubber Sleeve

Finished Product
