CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
Specifications
Model Number :
Normal
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
Certification :
CE, ISO
MOQ :
5 sets
Price :
$300-350 / set
Conductor Material :
Copper
Insulation Material :
Rubber
Size :
Customized
Application :
Industrial
Jacket :
Rubber
Type :
Low Voltage
Product name :
Kickless Cable
Conductor :
Pure Red Copper
Standard Diameter :
300mm²/400mm²
Standard Length :
2m-3.5m
Insulation :
Rubber Insulation
Customized :
Yes
Feature :
igh insulation/High temperature resistance
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
Dedicated, so professional; Winning by quality, precision to thrive

Product Description

Kickless Cable belongs to a type of insulated conductor or cable distinguished by shape. It is a type of water cable with small cross-section, high working current, and good cooling effect. It is suitable for use on electrical equipment working under low voltage and high current, and can be easily bent and moved. The main technical feature is that the cable uses soft copper wire as the conductor, and the outer layer is covered with rubber water pipe. There is a water passage space between the cable and the rubber water pipe, The copper joints at both ends of the cable are welded together with the cable, and the steel jacket is connected to the copper joint. The copper joint is equipped with internal water holes to connect with the water space of the water cable.
Technical Parameters
Item Specifiction
300mm²
400mm²
Impedance
2.0M
480±15μΩ
358±15μΩ
2.4M
593±15μΩ
445±15μΩ
Dc impedance value
2.0M
475μΩ
355μΩ
2.4M
587μΩ
440μΩ
Resistance
2.0M
78μΩ
74μΩ
2.4M
82μΩ
88μΩ
Power
=0.99
=0.99
Cooling water capacity
7.0L/Min
7.0L/Min
Temperature rise characteristic
2.0M
45℃/5900A
45℃/6800A
2.4M
45℃/5400A
45℃/6200A
Weight
2.0M
10.4kg
13.2kg
2.4M
12.2kg
15.3kg

Main Features

1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun 2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance 3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy. 4. Minimal water pressure drop for excellent cooling effect 5. Convenient cable replacement and minimal downtime
Standard Drawing
Cross Section 300mm²
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
Cross Section 400mm²
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
Besides standard models, we can customized according to your requirements. More details, please contact!
Scene images

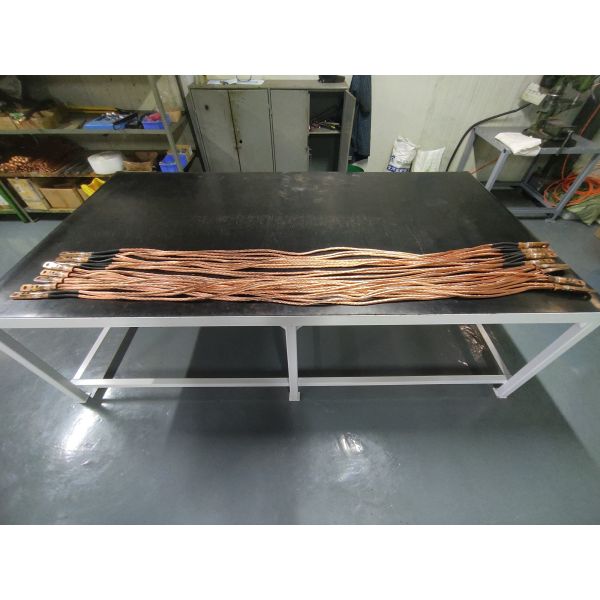

Raw Materials: Pure Red Copper
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
Careful Protection :Additional Rubber Sleeve
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable

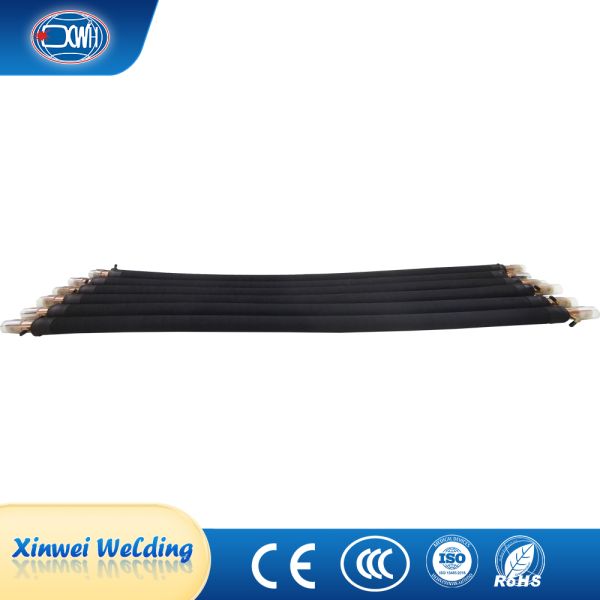

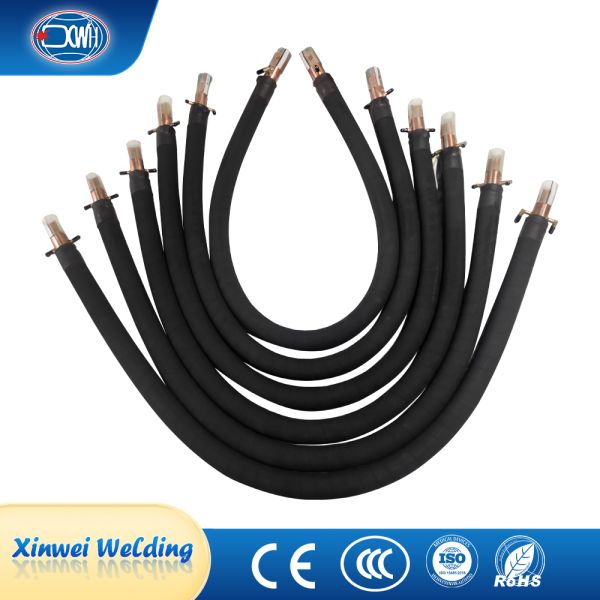

Finished Product
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
CNC Welding Equipment Industrial Rubber Insulation Water Cooled Copper Kickless Cable
