Persian Gray Film 0802C LCD Parallel Display 51 Microcontroller Stm32

Specifications

Resolution :

08*02

is_customized :

Yes

View Size :

30x14mm

Display Mode :

0802

Model Number :

Persian 0802C

Controller :

ST7066U

Origin :

Mainland China

Color :

Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font

Type :

COB

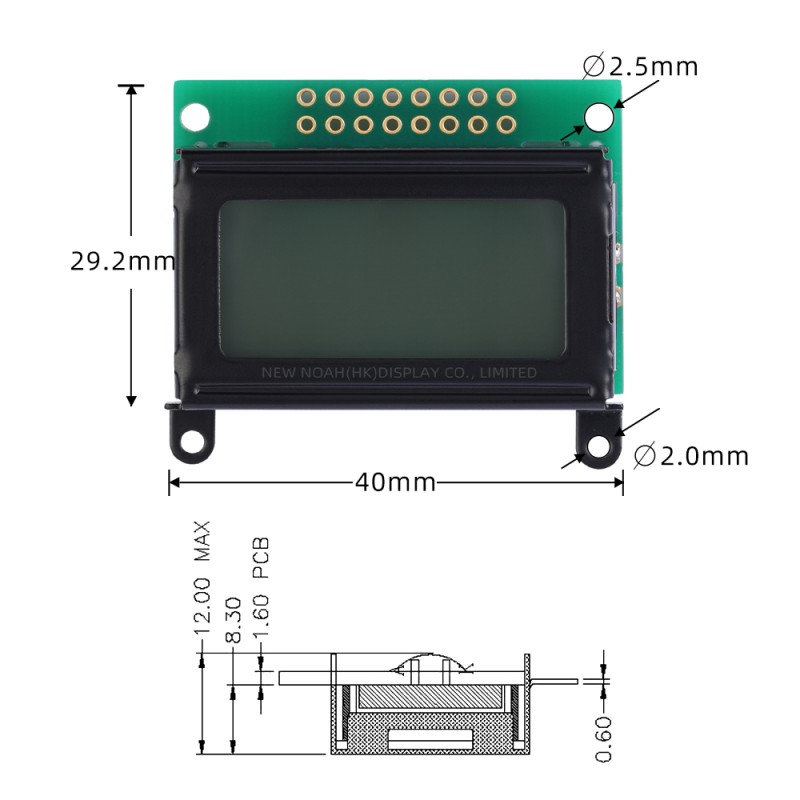

Outline Dimension :

40×29.2x12mm

Hign-concerned Chemical :

None

Description

Persian 0802C

The Persian 0802C is a versatile display module suitable for a variety of industrial and commercial applications. This compact and reliable display provides clear and concise information, enhancing user experience and streamlining operations.

Key Benefits:

Clear and concise display
Compact and durable design
Easy integration into existing systems
Customizable options available
Cost-effective solution

Target Industries and Applications: Industrial automation, consumer electronics, medical devices, and more.

Product Attributes

FOB Unit: piece

Product MOQ: Not Mentioned

FOB Price: 2.5

Packaging & Delivery: Not Mentioned

Technical Specifications

Attribute	Value
Hign-concerned Chemical	None
Display Mode	0802
Resolution	08*02
Is Customized	Yes
Model Number	Persian 0802C
Type	COB
Origin	Mainland China
Outline Dimension	40×29.2x12mm
View Size	30x14mm
Controller	ST7066U

Persian Gray Film 0802C LCD Parallel Display 51 Microcontroller Stm32

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
