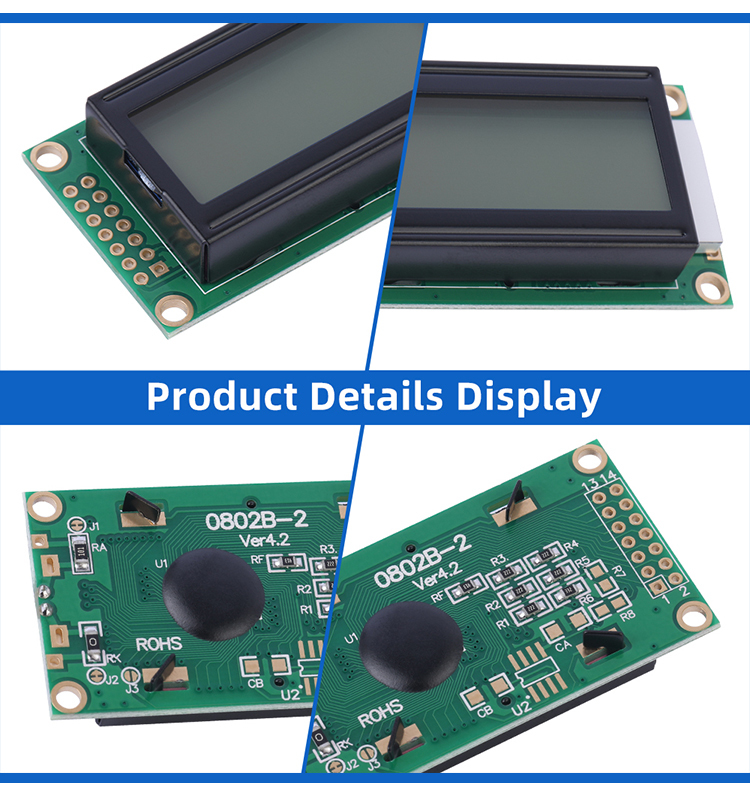

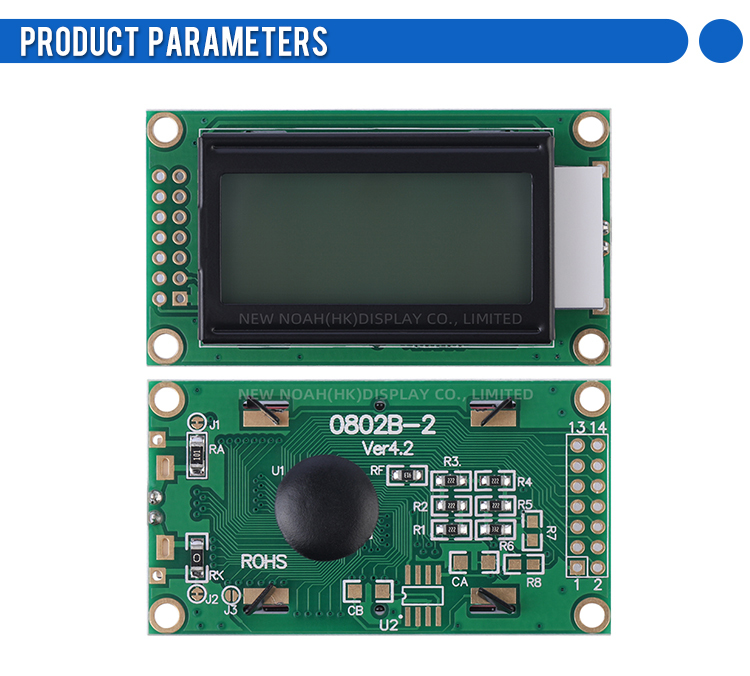

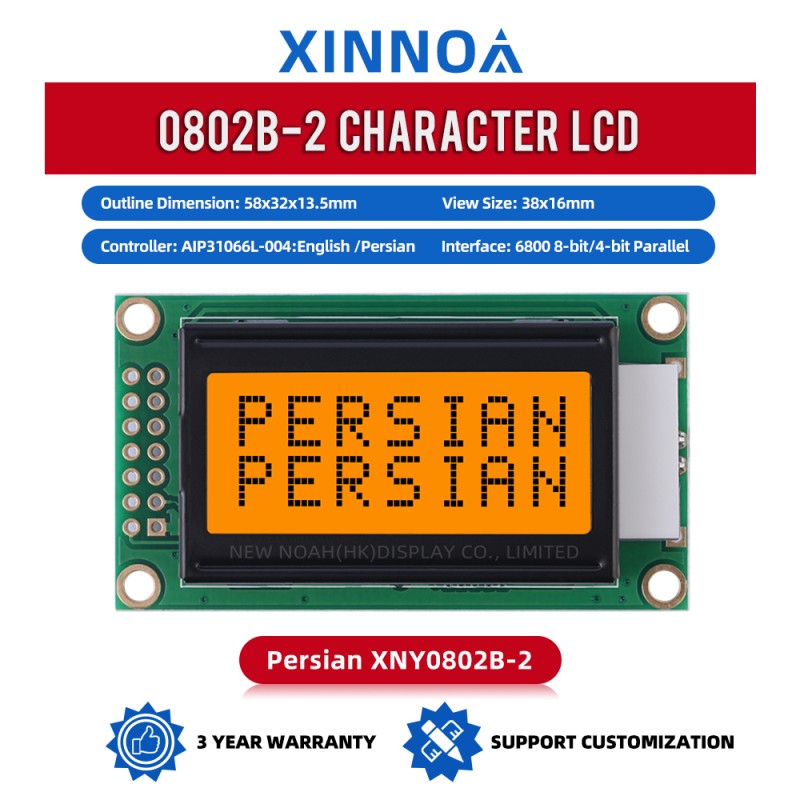

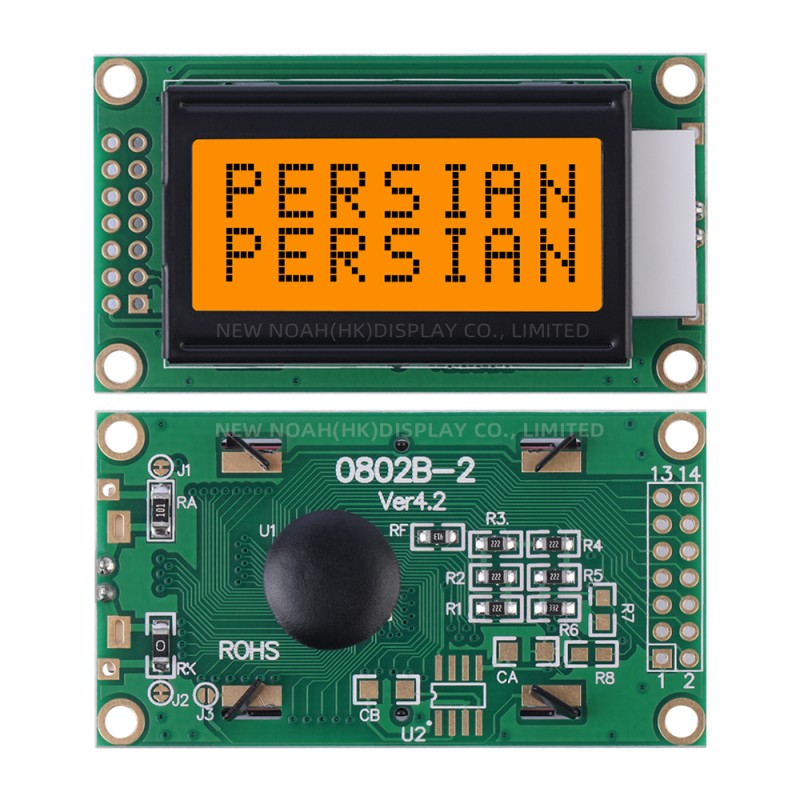

Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Persian Gray Film 0802B-2 Character LCD Portable Display Module
Specifications
Resolution :
08*02
Model Number :
Persian 0802B-2
Origin :
Mainland China
Color :

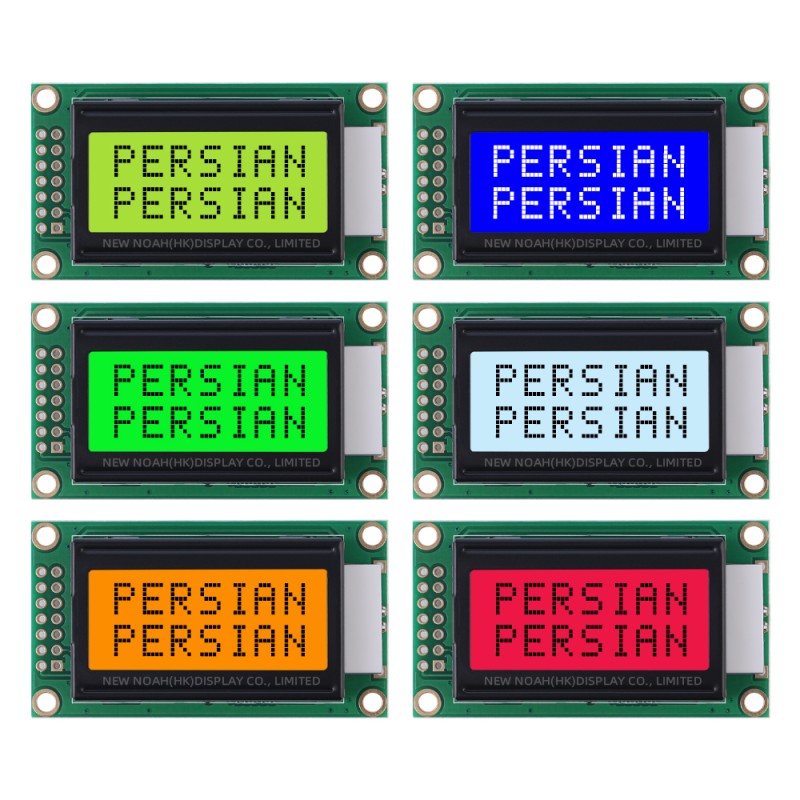

Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
Hign-concerned Chemical :
None
Display Mode :
0802
Type :
COB
is_customized :
Yes
Controller :
ST7066
Outline Dimension :
58x32x13.5mm
View Size :
38x16mm
Description

Persian 0802B-2

High-quality display module suitable for various industrial and commercial applications. Offers reliable performance and customizable options to meet specific project needs.

  • Clear and crisp display
  • Durable construction for long-lasting use
  • Customizable display options
  • Ideal for industrial control panels
  • Easy integration with existing systems

Target Industries: Industrial Automation, Consumer Electronics, Measurement Instruments.

Product Attributes

FOB Unit: piece
FOB Price: $2.08

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 0802
Resolution 08*02
is_customized Yes
Model Number Persian 0802B-2
Type COB
Origin Mainland China
Outline Dimension 58x32x13.5mm
View Size 38x16mm
Controller ST7066


Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

Persian Gray Film 0802B-2 Character LCD Portable Display Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
