Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module
Specifications
Resolution :
08*02

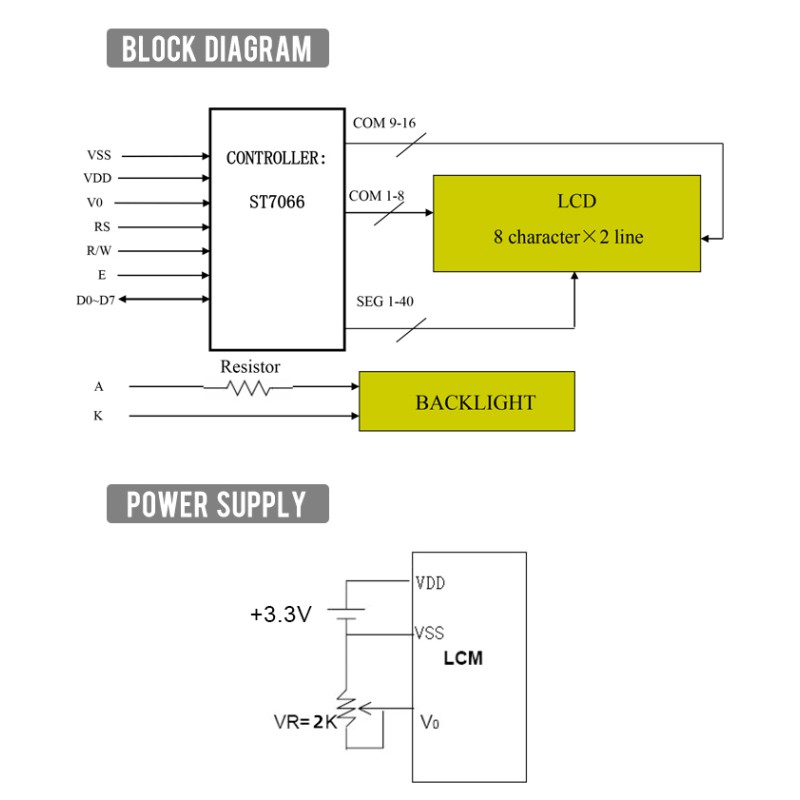

Controller :
ST7066
Color :
Blue Film
Model Number :
Russian 0802B 3.3v
Hign-concerned Chemical :
None
is_customized :
Yes
Origin :
Mainland China
Type :
COB

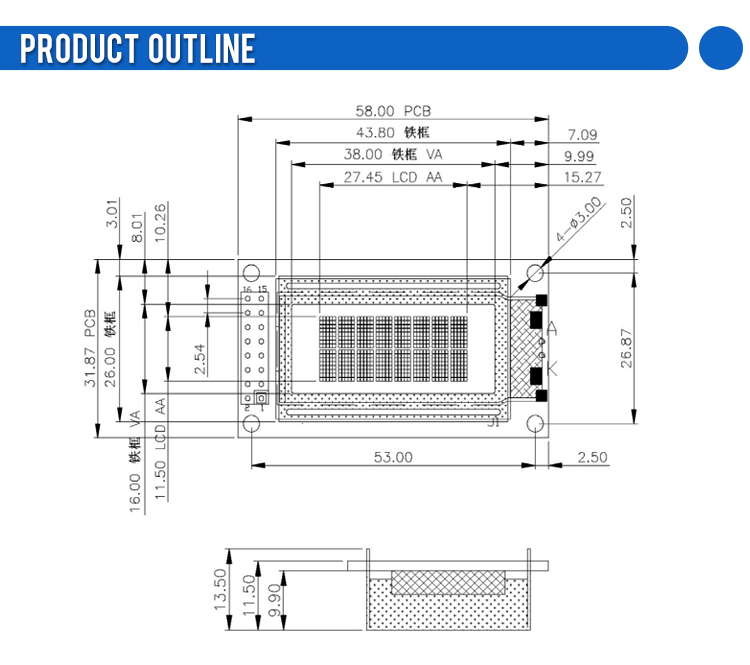

Outline Dimension :
58×31.87×13.5mm
Display Mode :
0802
View Size :
38x16mm
Description

Russian 0802B 3.3v

The Russian 0802B 3.3v is a compact and efficient display module, ideal for various industrial and consumer applications. Its clear display and robust design ensure reliable performance in demanding environments.

Key Benefits:

  • Clear and readable display
  • Low voltage operation (3.3V)
  • Compact size for easy integration
  • Durable construction for long-lasting performance

Target Industries and Applications: Industrial control panels, consumer electronics, instrumentation, and embedded systems.

Product Attributes

FOB Price 1.57
FOB Unit piece
Product MOQ Unknown
Packaging & Delivery Unknown
Weight 0.044 kg
Dimensions 10 × 4 × 3 cm
Color Blue light

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 0802
Resolution 08*02
Is Customized Yes
Model Number Russian 0802B 3.3v
Type COB
Origin Mainland China
Outline Dimension 58×31.87×13.5mm
View Size 38x16mm
Controller ST7066


Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

Russian Blue Film 0802B 3.3V Character Dot Matrix Screen 8*2-Character LCD Screen COB LCD Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
