Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module
Specifications

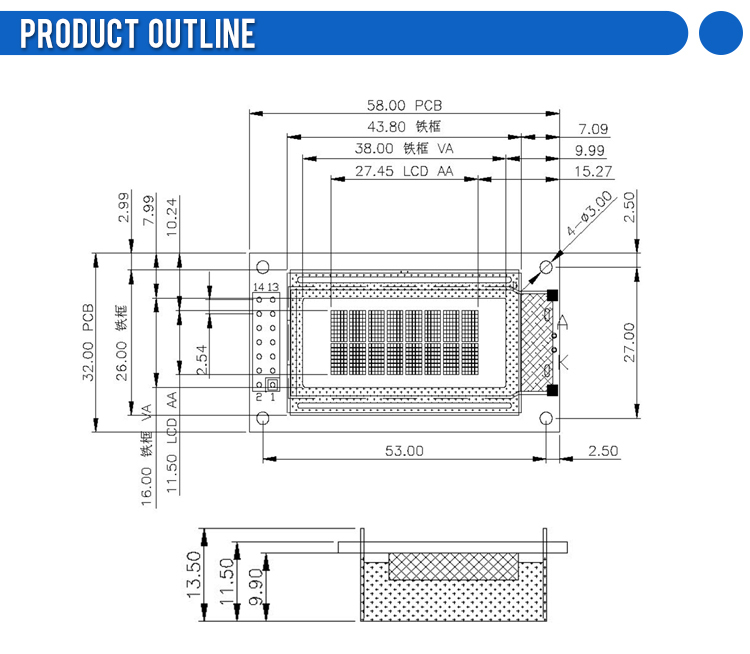

Outline Dimension :
58x32x13.5mm
Resolution :
08*02
Origin :
Mainland China
Hign-concerned Chemical :
None
Controller :
ST7066
is_customized :
Yes
Model Number :
0802B-2
Type :
COB
Display Mode :
0802
View Size :
38x16mm
Description

0802B-2

The 0802B-2 is a reliable and versatile display module designed for a variety of applications. This COB (Chip-on-Board) type display offers clear visibility and efficient performance.

Key Benefits:

  • Clear and concise display
  • Durable COB construction
  • Customizable options available
  • Compact design for easy integration

Target Industries & Applications: Industrial equipment, consumer electronics, measurement instruments, and embedded systems.

Product Attributes

FOB Price: 1.34 USD
MOQ: To be determined
Packaging & Delivery: To be determined

Technical Specifications

AttributeValue
Hign-concerned ChemicalNone
Display Mode0802
Resolution08*02
Is CustomizedYes
Model Number0802B-2
TypeCOB
OriginMainland China
Outline Dimension58x32x13.5mm
View Size38x16mm
ControllerST7066


Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

Yellow Green Film 0802B-2 Character LCD Screen 02*8 LCD 14 PIN Original ST7066 Chip LCM Display Module

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
