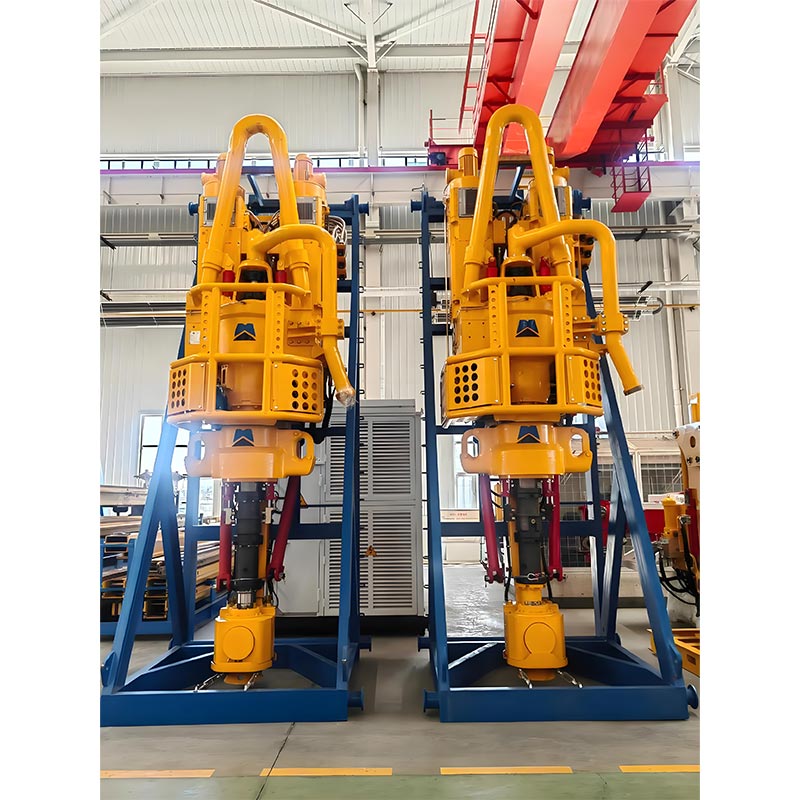

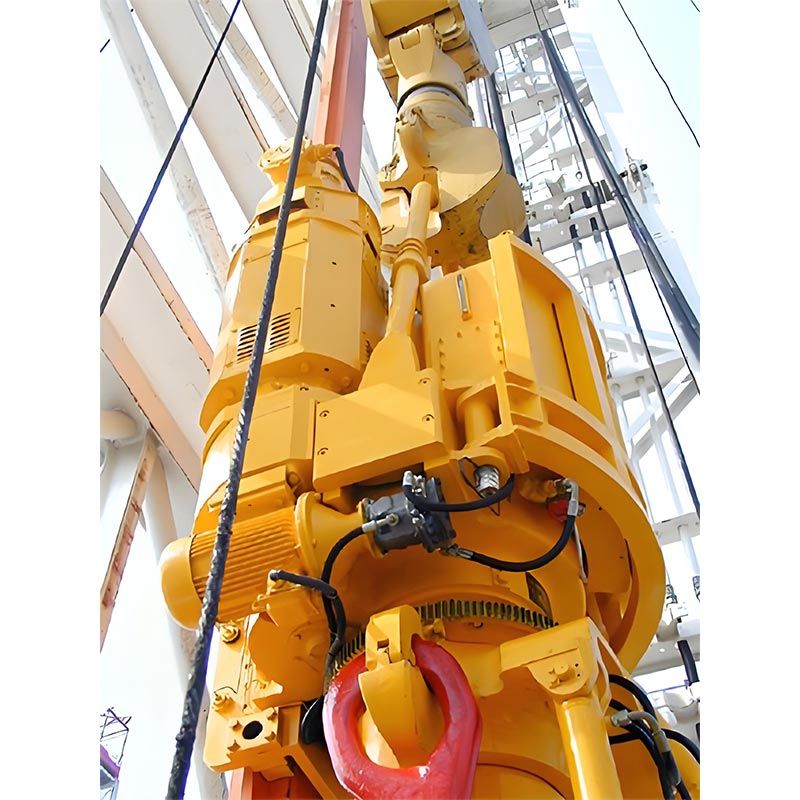

1. Main components of top drive

The top drive system typically consists of the following key components:

Power unit: Electric motor or hydraulic motor, providing rotational power.

Gearbox: transmits power and adjusts speed and torque.

Spindle: Connect the drill string and directly drive the drill rod to rotate.

Pipe handling device: including inclined arms, elevators, etc., used for automated unloading of drill pipes.

Cooling system: prevent the motor from overheating.

Control system: Integrated PLC or digital control to achieve precise operation.

2. Advantages of top drive

Efficient drilling:

Continuous drilling capability, no need to frequently stop drilling and connect a single rod (can drill 3 drill rods at once).

Support reverse drilling (circulating drilling fluid while drilling) to reduce the risk of stuck drilling.

Security Enhancement:

Reduce manual operations (such as swinging drill rods) and lower the risk of worker injury.

Can quickly shut down the blowout preventer (BOP) in emergency situations such as well surges.

Adaptability to complex boreholes:

Directional drilling is easier to control the tool face and is suitable for horizontal wells, high displacement wells, etc.

Real time adjustment of speed and torque, optimizing drilling parameters.

Automated integration:

Can be used in conjunction with drilling robots and digital systems to achieve remote monitoring and automated operations.

3. Application scenarios

Offshore drilling platforms: Top drive is almost standard due to its limited space and extremely high safety requirements.

Deep/ultra deep wells: require high torque and precise control.

Shale gas/unconventional oil and gas development: The advantage is obvious when drilling frequently.

Automated drilling: combined with intelligent systems to achieve "unmanned" drilling.
