2225KN Load Drilling Top Drive 4000m Depth Drilling Rig Top Drive 180 RPM
2225KN Load Drilling Top Drive 4000m Depth Drilling Rig Top Drive 180 RPM

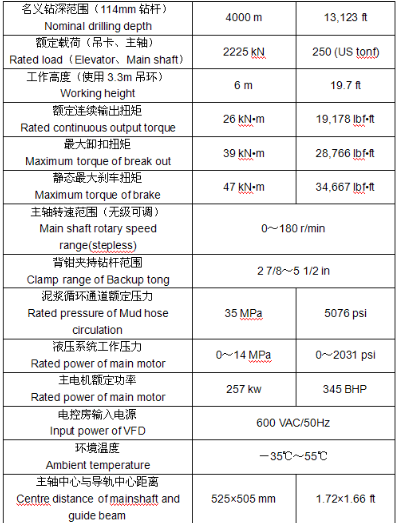

Specifications
Model Number :
DQ40
MOQ :
1 pcs
Rated Load capacity :
2225 KN
Delivery Time :
15-30 working days
Speed range of main shaft :
0~180 r/min
Drive Mode :
AC VFD Motor
Model :
DQ40
Brand Name :
XI'AN RIG
Place of Origin :
China
Payment Terms :
L/C, T/T
Nominal drilling depth :
4000m
back-up tong clamping :
85-187mm
Certification :
API
Description

DQ40 Top Drive VFD Top‑Drive Unit for 4000m On‑shore Oil Drilling Rigs

Description:


The top drive system is a drilling technology that uses a suspended motor (typically electric or hydraulic) to provide the torque needed to rotate the drill string. This system replaces the traditional rotary table and kelly drive methods, offering advantages like increased drilling efficiency, reduced manual labor, and improved safety

Technical Advantages:

1.Double-cylinder opposite-clamp type backup tongs, with stable performance.
2.Rack-and-pinion IBOP actuator, featuring precise transmission and prolonged service life of IBOP.
3.The IBOP cylinder is equipped with a buffer spring as an accessory, effectively ensuring the service life of the IBOP roller.
4.Five spare rotating oil passages are provided to realize full signal feedback of the hydraulic elevator.
5.Low Maintenance – Robust construction minimizes downtime
