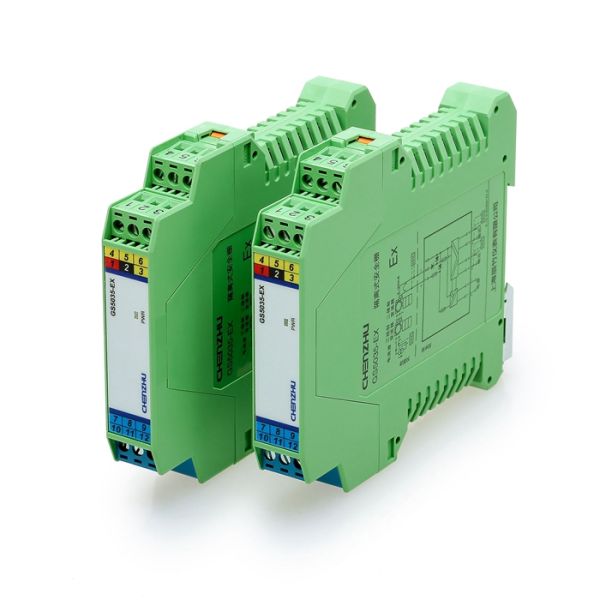

Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
chenzhu
Model Number :
GS5045-EX
MOQ :
5 sets
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Application :
Signal isolator
Type :
Analog signal isolator
Series :
GS5000
Mounting Type :
DIN35mm
Description :
Signal isolator
Manufacturing Date Code :
2024
Technology :
magnetic coupling
Isolated Power :
2500v
Channel type :
Unidirectional
Number of channels :
2
Description
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer

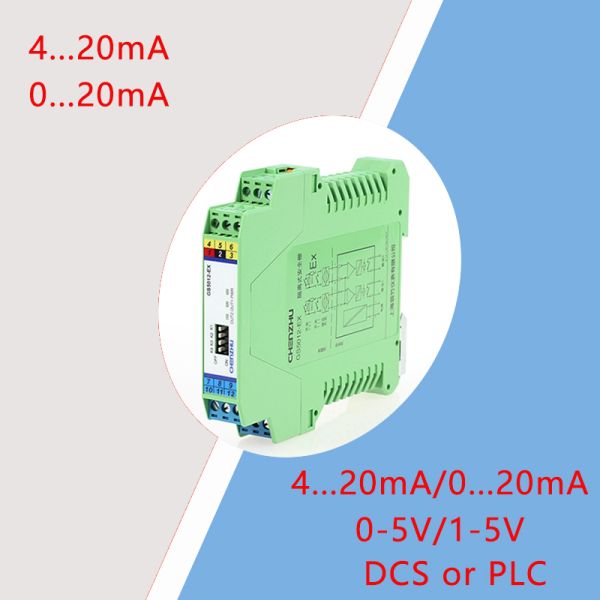

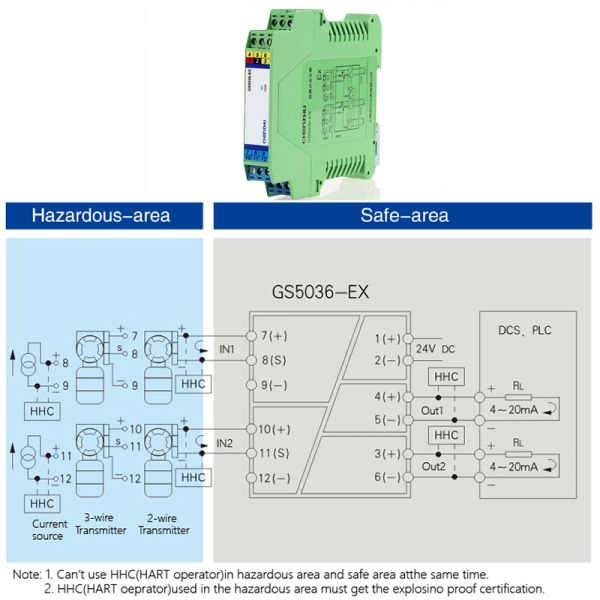

Analog input isolated safety barrier The analog input isolation barrier provides isolated power supply to the transmitters in the hazardous area, isolating and transmitting the current generated by the transmitters from the hazardous side to the safe side, and supports bidirectional transmission of HART signals. This product requires independent power supply, with three isolations for power supply, input and output
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer

GS5035-EX

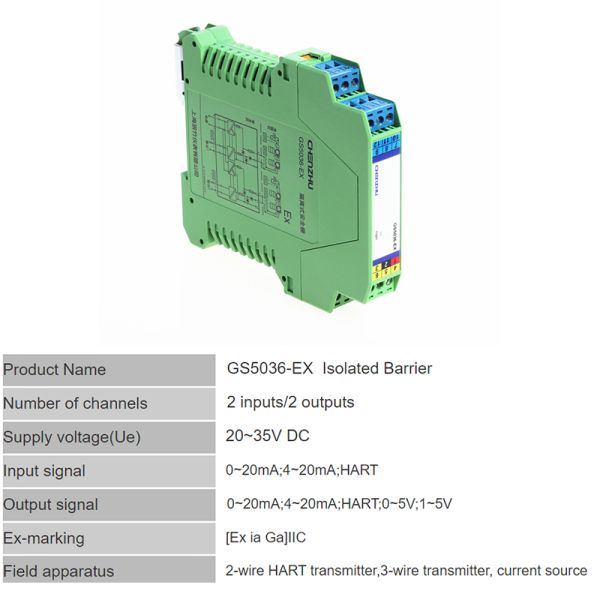

GS5036-EX
GS5045-EX
Number of channels
1 in, 2 out
2 in, 2 out,
1 in, 1 out
Response time
2ms reaches 90% of the final value
2ms reaches 90% of the final value
2ms reaches 90% of the final value
Input signal
0~20mA; 4~20mA; HART digital signal
0~20mA; 4~20mA; HART digital signal
0~20mA; 4~20mA; HART digital signal
Open-circuit voltage
≤28V
≤28V
≤28V
Distribution voltage
Voltage at 20mA: ≥15.5V
Voltage at 20mA: ≥15.5V
Voltage at 20mA: ≥15.5V
Normal operating current
≤25mA
≤25mA
≤25mA
Output signal
0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V
0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V
0~20mA; 4~20mA; HART digital signal; 0~5V; 1~5V
Current output load resistor
RL≤300Ω(550Ω is optional for users)
RL≤300Ω(550Ω is optional for users)
RL≤300Ω(550Ω is optional for users)
Voltage output load resistor
RL 330 k Ω or higher
RL 330 k Ω or higher
RL 330 k Ω or higher
Supply voltage (Ue
20-35V DC
20-35V DC
20-35V DC
Power protection
Reverse power supply protection
Reverse power supply protection
Reverse power supply protection
Current consumption
≤75mA(when powered by 24V and with 20mA output)
≤75mA(when powered by 24V and with 20mA output)
≤75mA(when powered by 24V and with 20mA output)
Power supply mode
Independent power supply
Independent power supply
Independent power supply
Power connection method
Terminal power supply
Terminal power supply
Terminal power supply
Material
PA
PA
PA
Protection grade
IP20
IP20
IP20
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Bailui Electric Technology Co., Ltd. was established in January 2013. Is a focus on sensor products research and development, design, production, trade of professional companies. With more than ten years of technology accumulation, follow the business philosophy of technology first and service first, to provide customers with a complete set of mature application solutions. The industries involved include pharmaceutical, aerospace, chemical, electronics and other industries. In foreign trade, I have rich experience in dealing with all aspects of trade. The company promises: "reasonable price, short production time, satisfactory after-sales service", hope to cooperate with more customers, common development, mutual benefit. Potential buyers are welcome to contact us.
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
Chenzhu Industrial Isolated Signal Transmitter 4-20mA Current Transformer
1. What's your idea about your offer?
We have factory,we offer high quality products with proper price.
2.What's the MOQ?
The MOQis one pc,but our price base on the qty,if you need more,the price will be cheap.
3.What type of payment do you have available?
Weaccept TT and L/C as sample order,the Western union,Moneygram and Aliexpress is available.
4.What's the delivery time?
7-10days after we get the payment.
5.How to make an order ?
Tell us the size and qty you need or tell us where to use,our technician will
suggest the size you need. Then pay to our bank account,we will arrange the production and send you ASAP.
