High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG
High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG
Specifications
Brand Name :
XCAREPAIRKING
Model Number :
XTG4500B
Certification :
CE
Place of Origin :
China
MOQ :
5 sets
Price :
$1050-$1300
Payment Terms :
T/T, Western Union, MoneyGram, Cash
Supply Ability :
800 sets per month
Delivery Time :
15-30 days
Packaging Details :
square steel frame and wooden box
Lifting Capacity :
4500kg (3800kg,4200kg, 5000kg)
Lifting Height :
1800mm (1900mm is available)
Total Width :
3480mm
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift
Total Height :
3700mm
Width between posts :
2940mm
Lane width :
2660
Description

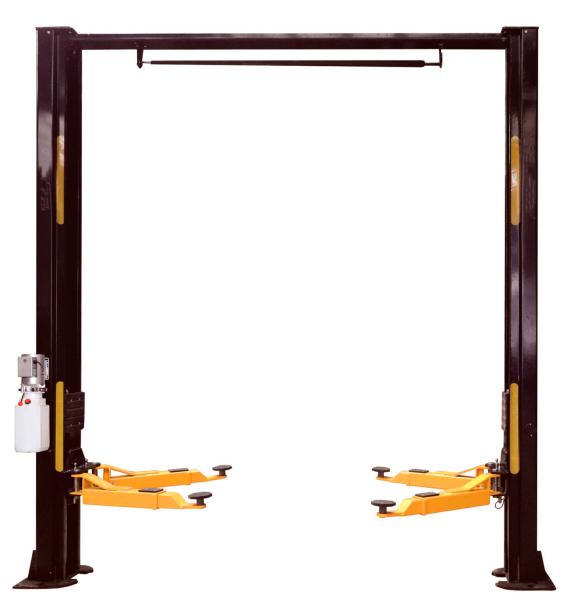

8 Fold Column Clear Floor 2 Post Car Lift 4500KG

High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG

Features

  • Clear floor design makes the operator work easier under the vehicle.
  • Adopt double cylinder, plate chain and steel rope balance system to make lifting stable
  • Hydraulic power unit configuration throttling device, can adjust the rate of decline.
  • Manual lock release.
  • The two stage arm design is suitable for different kinds of vehicle chassis.
  • Retractable tray with three screw designed, adjustment range from 85mm to 115mm
  • With 24V limit switch;
  • Preventing rubber pad and foot protection.
  • Safety guard
  • Adopt 360°circumferential teeth of limit lock, strengthen the tensile strength and reliability.
  • Pass 115% dynamic and 150% static loading test.
  • CE approved.

Technical Drawings

High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG

Technical Parameters

Lifting height 1800mm(1900mm is available)
Lifting capacity 4500kg
Lifting time 45s
Total height 3700mm
Total width 3480mm
Width between Columns 2940mm
Lane width 2660mm
Power 2.2KW / 3.0KW
Power Supply 220V/380V, 1ph/3ph,50Hz/60Hz

Functions for Optional

Lock Release

two sides lock release

one side lock release

eletric lock release
Lifting Arm

2 sections lifting arms

3 sections lifting arms
Column Design

6 fold column

8 fold column S column
Oil Drum plastic durm, steel drum
Motor standard motor, aluminum motor with fan

Detailed Pictures

High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG

More Models for option

High Strength Good Quality Car Lifts Overhead Auto Lift 8 Fold Column Clear Floor 2 Post Car Lift 4500KG
