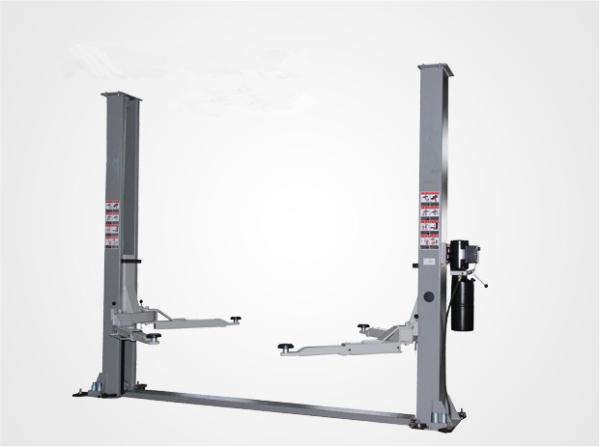

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm
CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm
CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm
CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm
Specifications
Brand Name :
XCAREPAIRKING
Model Number :
XTF4500DS
Certification :
CE
Place of Origin :
China
MOQ :
3 sets
Price :
$1050-1150
Payment Terms :
T/T, Western Union, MoneyGram, Cash
Supply Ability :
800 sets/month
Delivery Time :
15-30 days
Packaging Details :
square steel frame and plywood box
Lifting Capacity :
4500kg(4000kg and other capacity is optional)
Lifting Height :
1800mm
Total Width :
3340mm
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift
Overal Height(mm) :
2790mm
Mini Lifting Height :
110mm
Description

Two Post Low Ceiling Car Lift Single Side Manual Lock Release

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm

  1. extra extened 3 sections arms
  2. lane widening
  3. precise locking gear design
  4. exclusive design of cable wheels protector

Features

  • Floor plate design is ideal choice for low ceiling shop.
  • Adopt double cylinder, plate chain and steel rope balance system to make lifting stable.
  • Hydraulic power unit configuration throttling device, can adjust the rate of decline.
  • Manual lock release from one side.
  • Three stages arm design makes the adjustment range larger to suit different vehicles.
  • Retractable tray with three screw designed, adjustment range from 110mm to 240mm
  • With 24V limit switch
  • Rubber pad protection
  • Safety guard
  • Pass 115% dynamic and 150% static loading test
  • CE approved.

Technical Drawings

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm

Technical Parameters

Lifting Capacity 4500KG(4000kg)

Lifting height

 1800mm
Mini height

110mm
Lifting time 50-60s
Total height 2790mm
Total width 3340mm
Power supply 220V/380V, 1ph.3ph, 50/60Hz
Lock release Mode single side manual unlock

Functions for Optional:

Lock Release

two sides lock release

one side lock release

eletric lock release
Lifting Arm

2 sections lifting arms

3 sections lifting arms
Column Design

6 fold column

8 fold column S column

Oil Drum

plastic drum

steel drum
Motor

standard motor

aluminum motor with fan

Detailed Pictures

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm

More Models for option

CE Approved Low Ceiling Car Lifts Cheap Price Single Side Manual Unlock Two Post Car Lift 4500kg/1800mm
