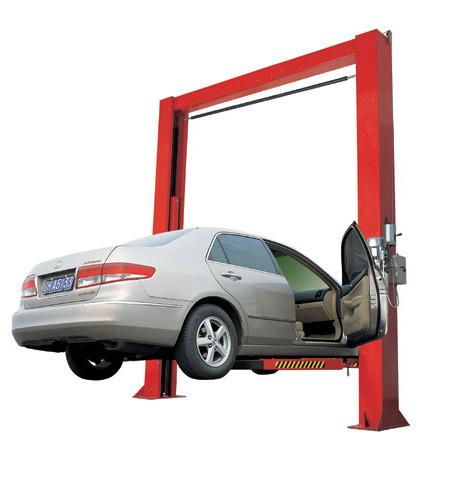

Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XTG5000
MOQ :
3 sets
Price :
$1100-$1350
Packaging Details :
steel frame and wooden box
Delivery Time :
20-30 days
Payment Terms :
T/T, Western Union, MoneyGram, Cash
Supply Ability :
600 sets per month
Lifting Capacity :
5000kg(4500kg)
Lifting Height :
1800mm(1900mm is available)
Design :
Two Post
Type :
Double Cylinder Hydraulic Lift
Width between pillars :
2940mm
Total Height :
3700mm
Total Width :
3480mm
Lane Width :
2660mm
Description

5Ton/1800mm Gantry Car lift Manual Lock Release

Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms

Features

  • Clear floor design makes the operator work easier under the vehicle.
  • Adopt double cylinder, plate chain and steel rope balance system to make lifting stable
  • Hydraulic power unit configuration throttling device, can adjust the rate of decline.
  • Manual lock release.
  • The two stage arm design is suitable for different kinds of vehicle chassis.
  • Retractable tray with three screw designed, adjustment range from 85mm to 115mm
  • With 24V limit switch;
  • Preventing rubber pad and foot protection.
  • Safety guard
  • Adopt 360°circumferential teeth of limit lock, strengthen the tensile strength and reliability.
  • Pass 115% dynamic and 150% static loading test.
  • CE approved.

Technical Drawings

Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms

Technical Parameters

Lifting height 1800mm(1900mm is available)
Lifting capacity 5000kg
Lifting time 45s
Total height 3700mm
Total width 3480mm
Width between Columns 2940mm
Power 2.2KW/ 3.0KW
Power Supply 220V/380V, 1ph/3ph,50Hz/60Hz

Functions for Optional

Lock Release

two sides lock release

one side lock release

eletric lock release
Lifting Arm

2 sections lifting arms

3 sections lifting arms
Column Design

6 fold column

8 fold column S column
Oil Drum plastic durm, steel drum
Motor

standard motor

aluminum motor with fan

Detailed Pictures

Hydraulic Car Lifts 5ton Two Post Overhead Lift 2 Post Gantry Lift with 3 section Lifting arms
